ECU Power Source Circuit

ECU Power Source Circuit Diagram:





CIRCUIT DESCRIPTION
The Electronic Control Unit (ECU) power source also supplies power to the ECU and sensor, etc. Power is supplied to the ECU even when the ignition switch.

Part 1 Of 2:




Part 2 Of 2:

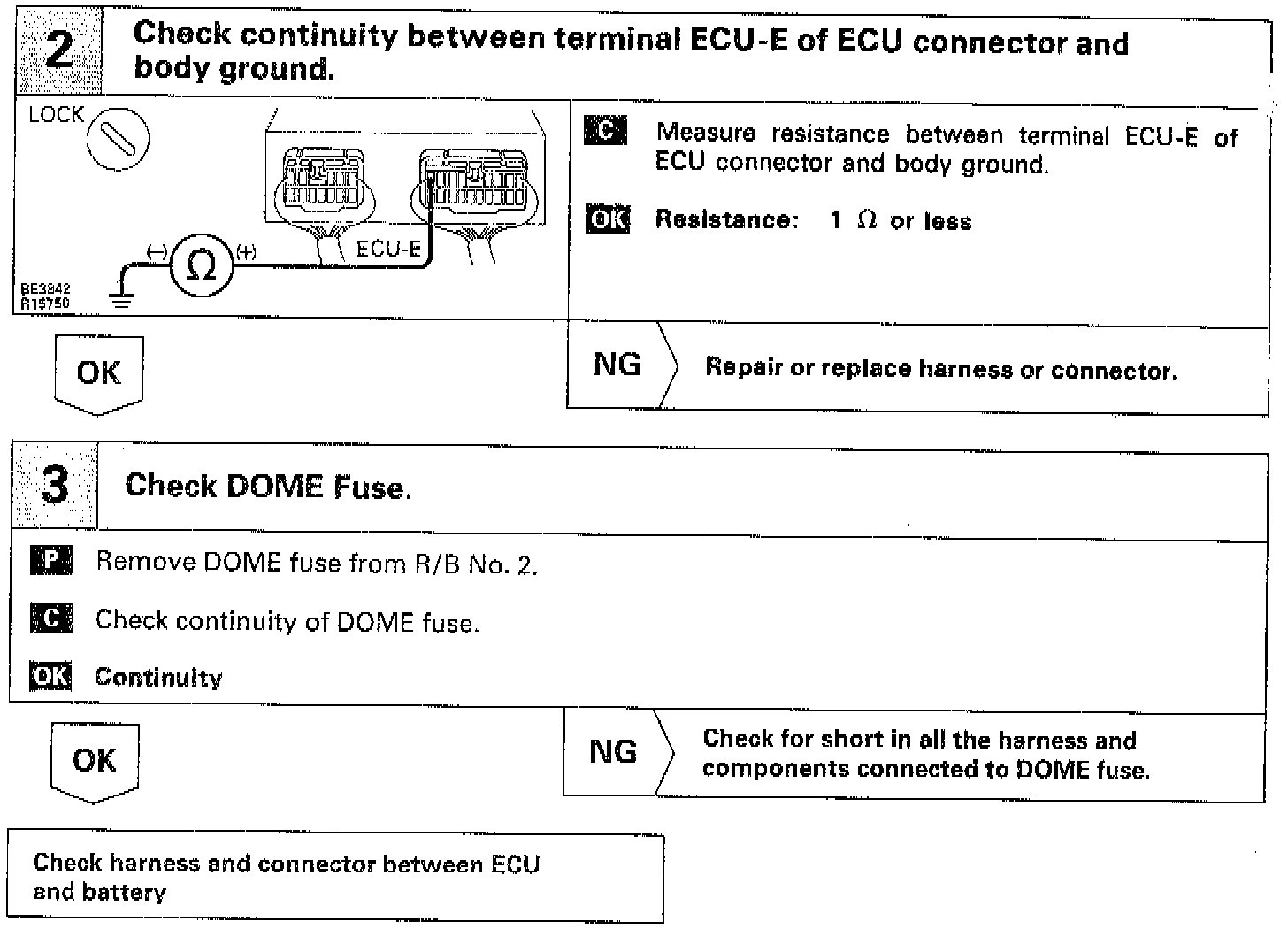

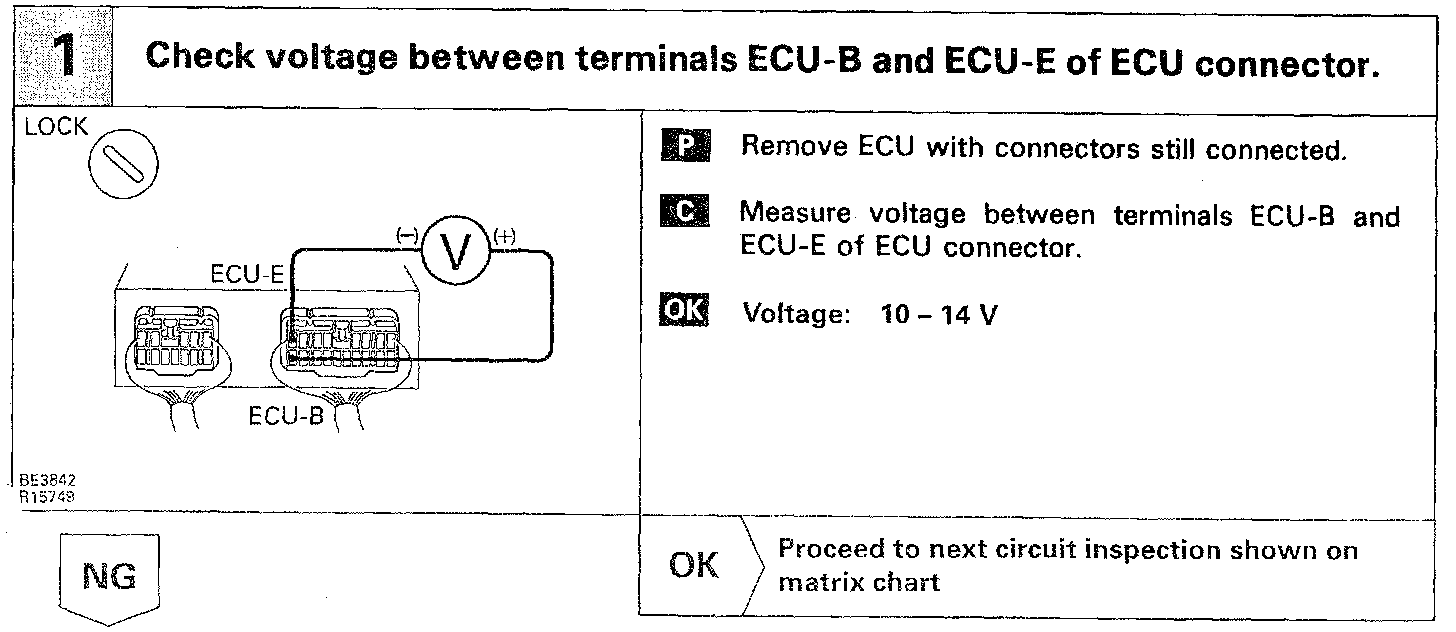

INSPECTION PROCEDURE
