ABS W/ Traction Control (TRAC)

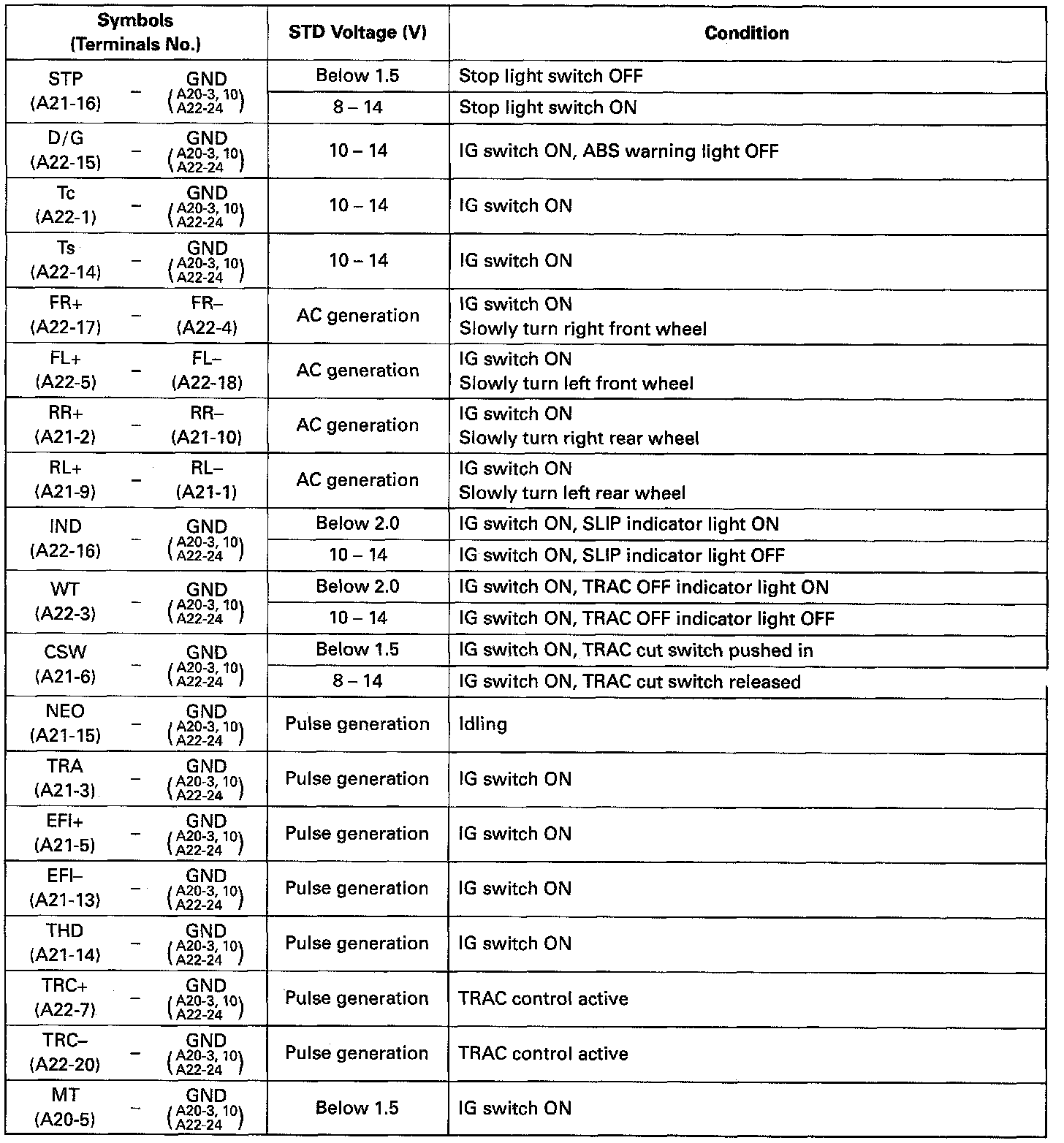

ABS w/ TRAC ECU Terminals And Standard Values Chart Part 1 Of 2:

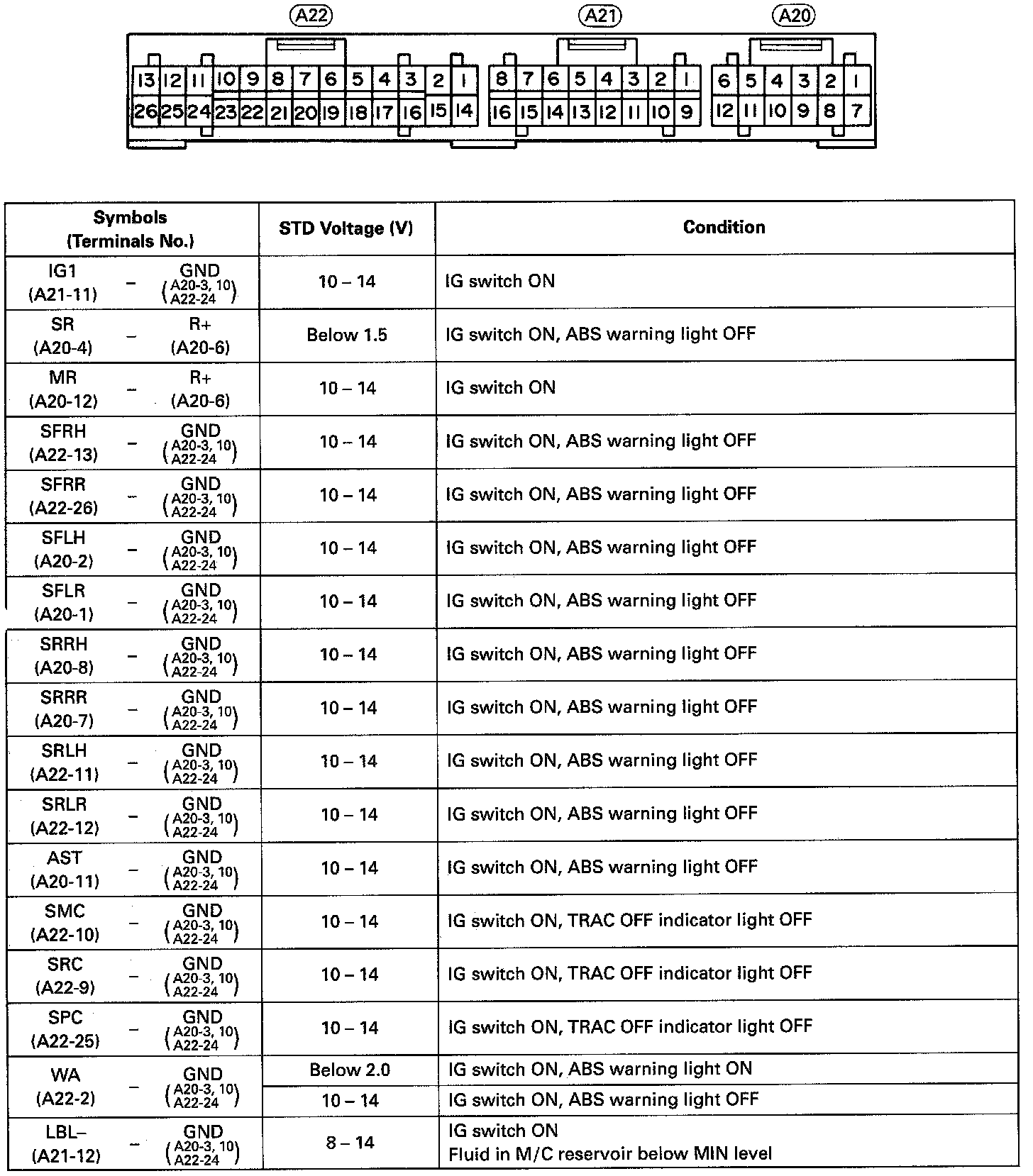

ABS w/ TRAC ECU Terminals And Standard Values Chart Part 2 Of 2:
