Splice Locations

Splice Points:




SPLICE POINTS

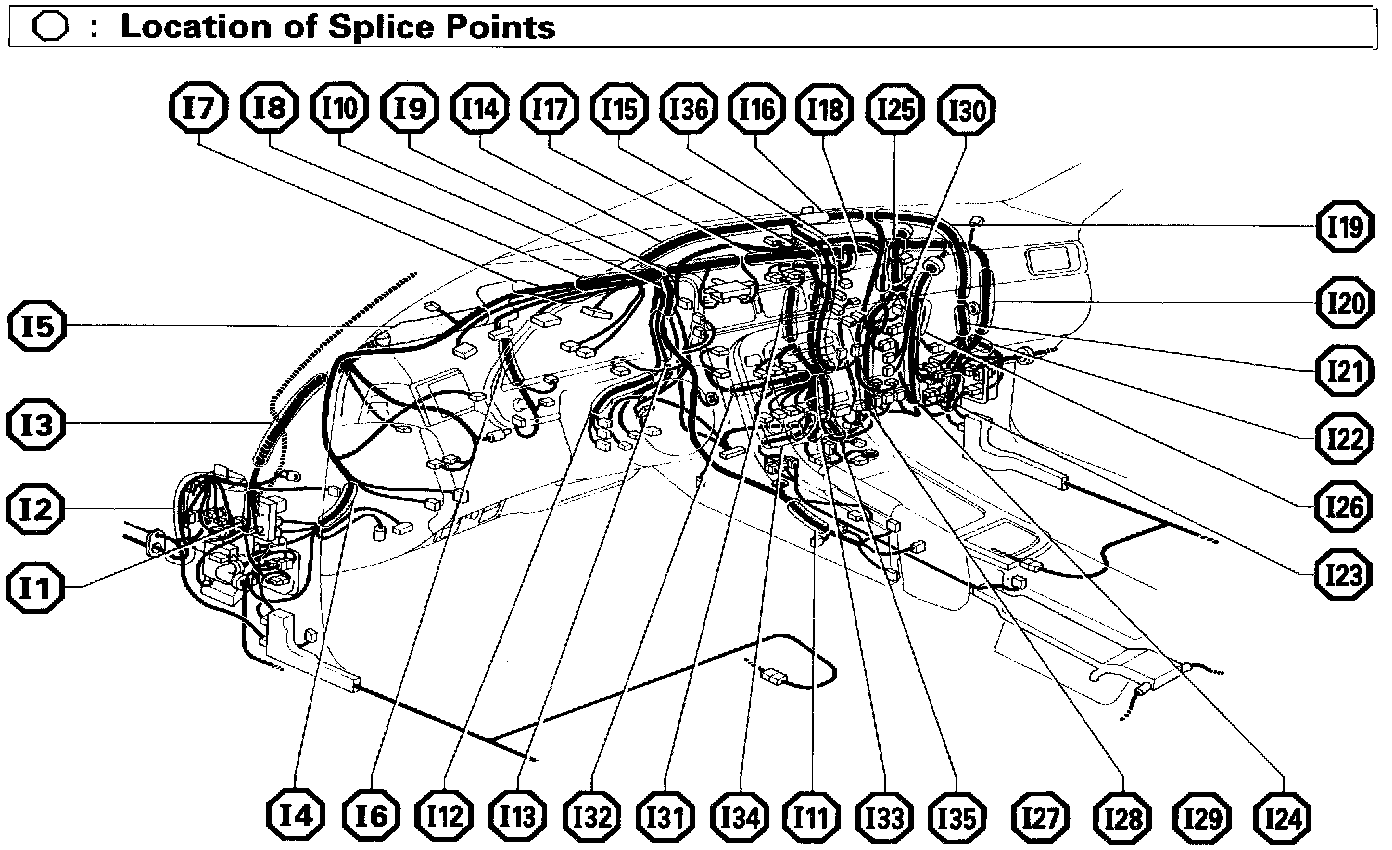

Location Of Splice Points (Fig 36):




FIG 36

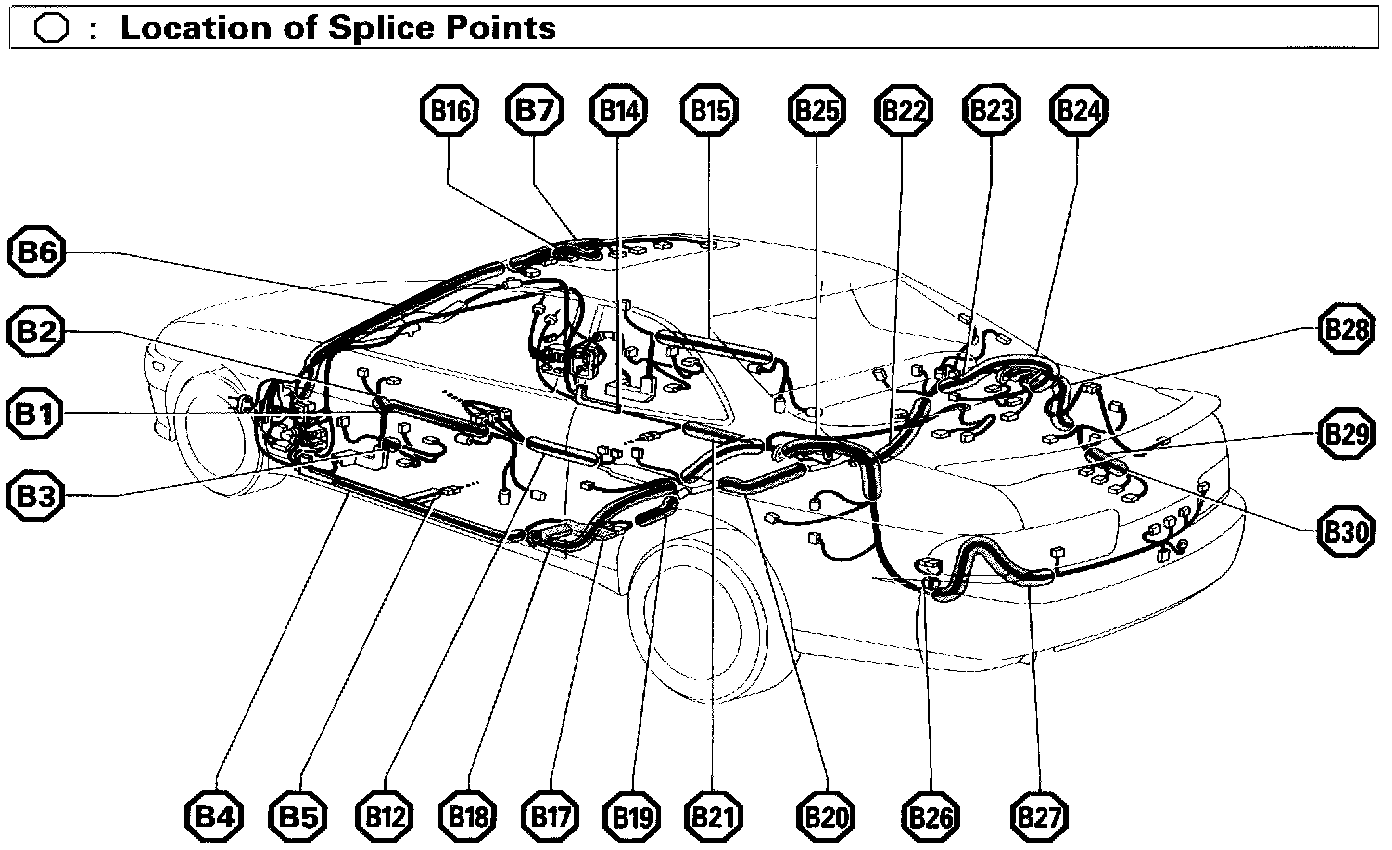

Location Of Splice Points (Fig 42):




FIG 42

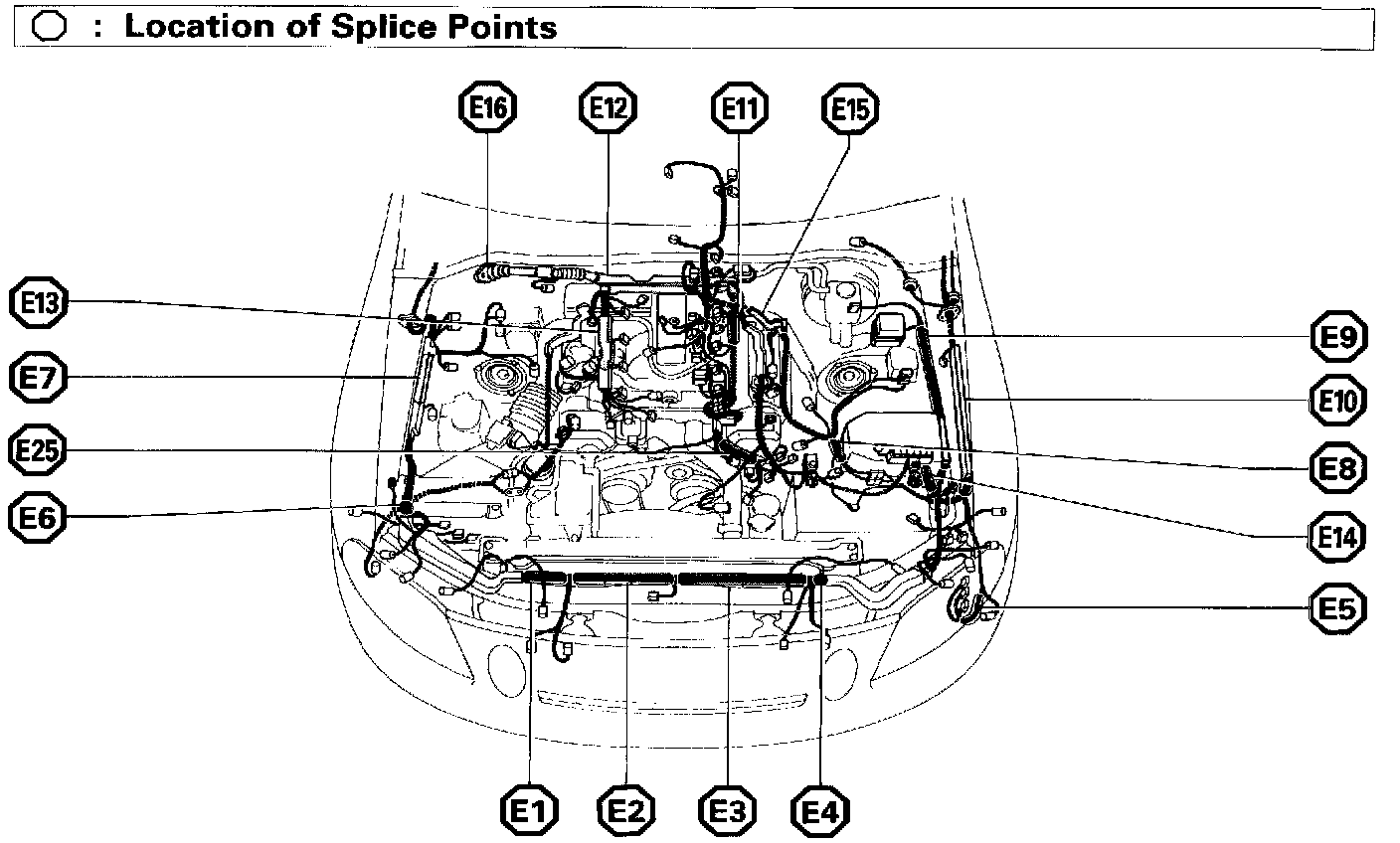

Location Of Splice Point (Fig 44):




FIG 44
