Back-up Power Source Circuit

CIRCUIT DESCRIPTION
The ECU back-up power source provides power even when the ignition is off and is used for DTC memory, etc..





WIRING DIAGRAM

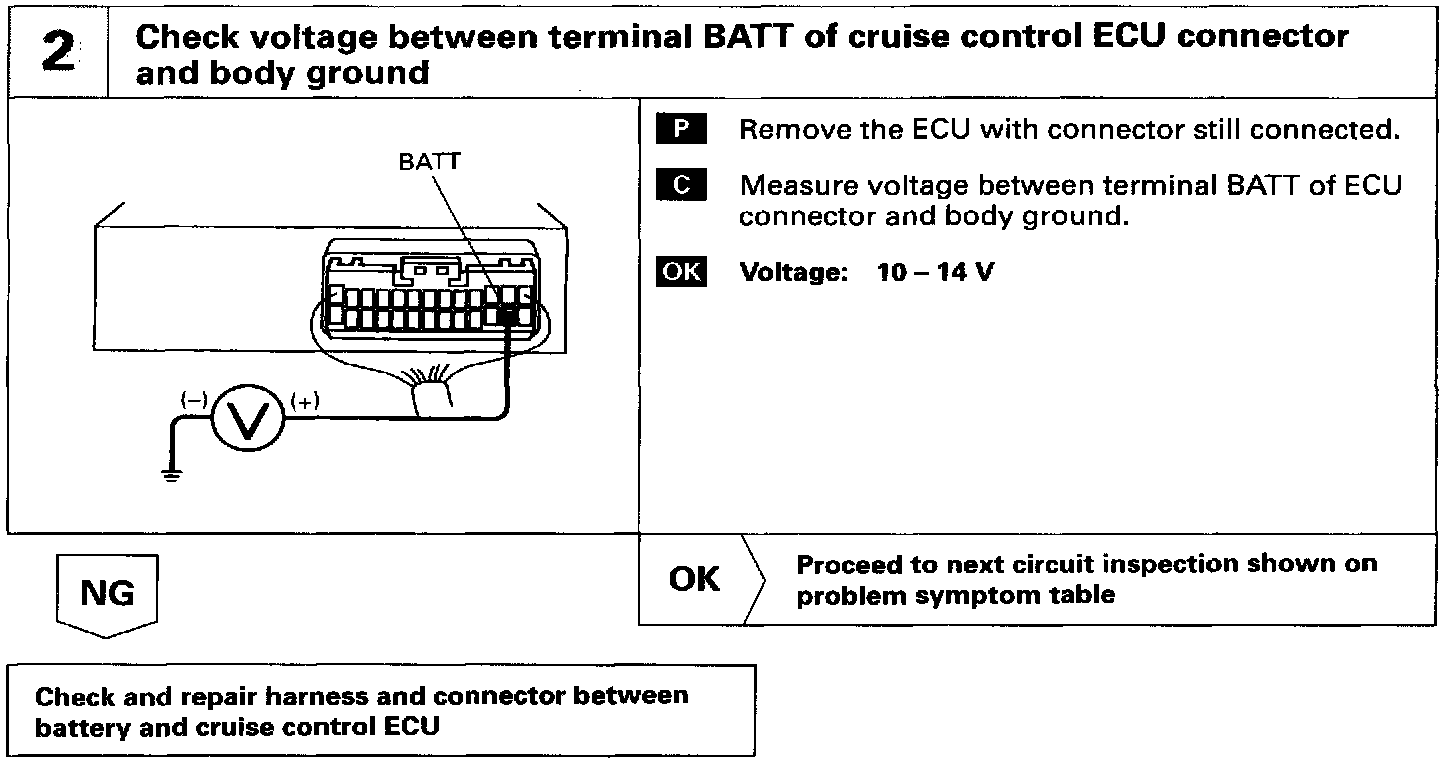

INSPECTION PROCEDURE
