Control Switch Circuit (Cruise Control Switch)





CIRCUIT DESCRIPTION
This Circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.





WIRING DIAGRAM

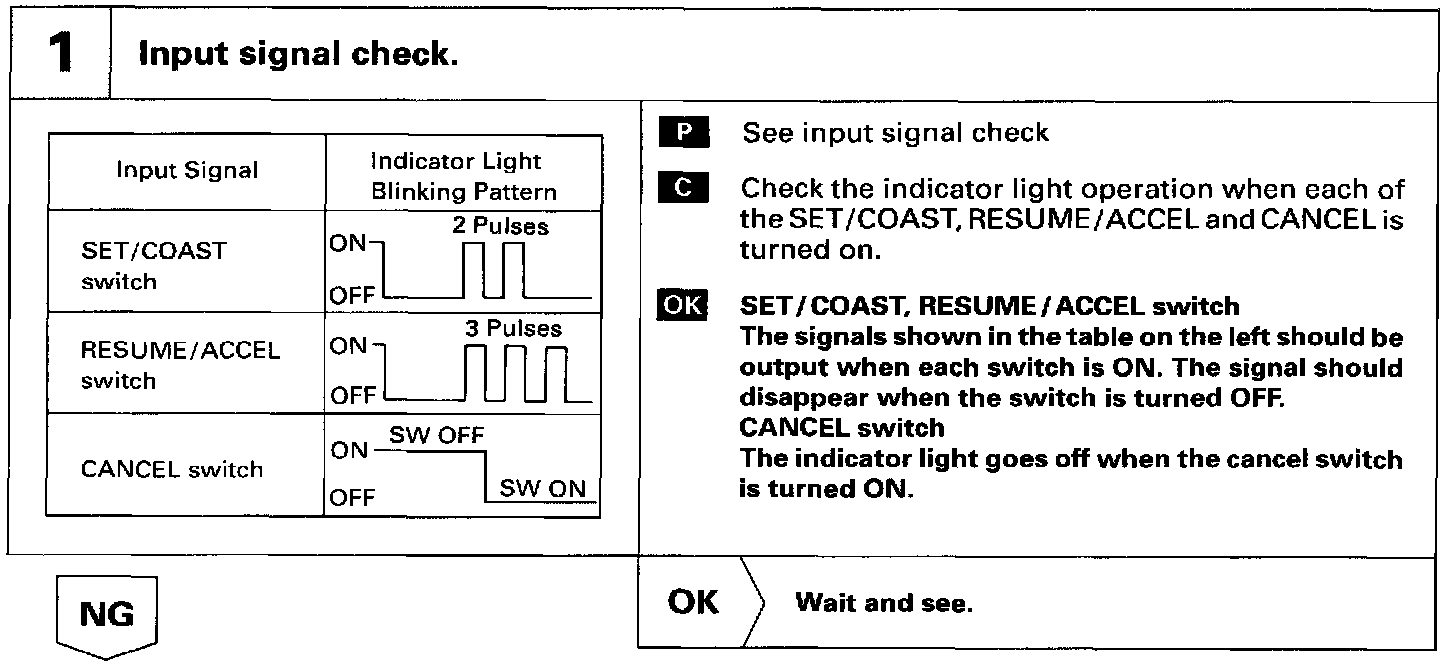

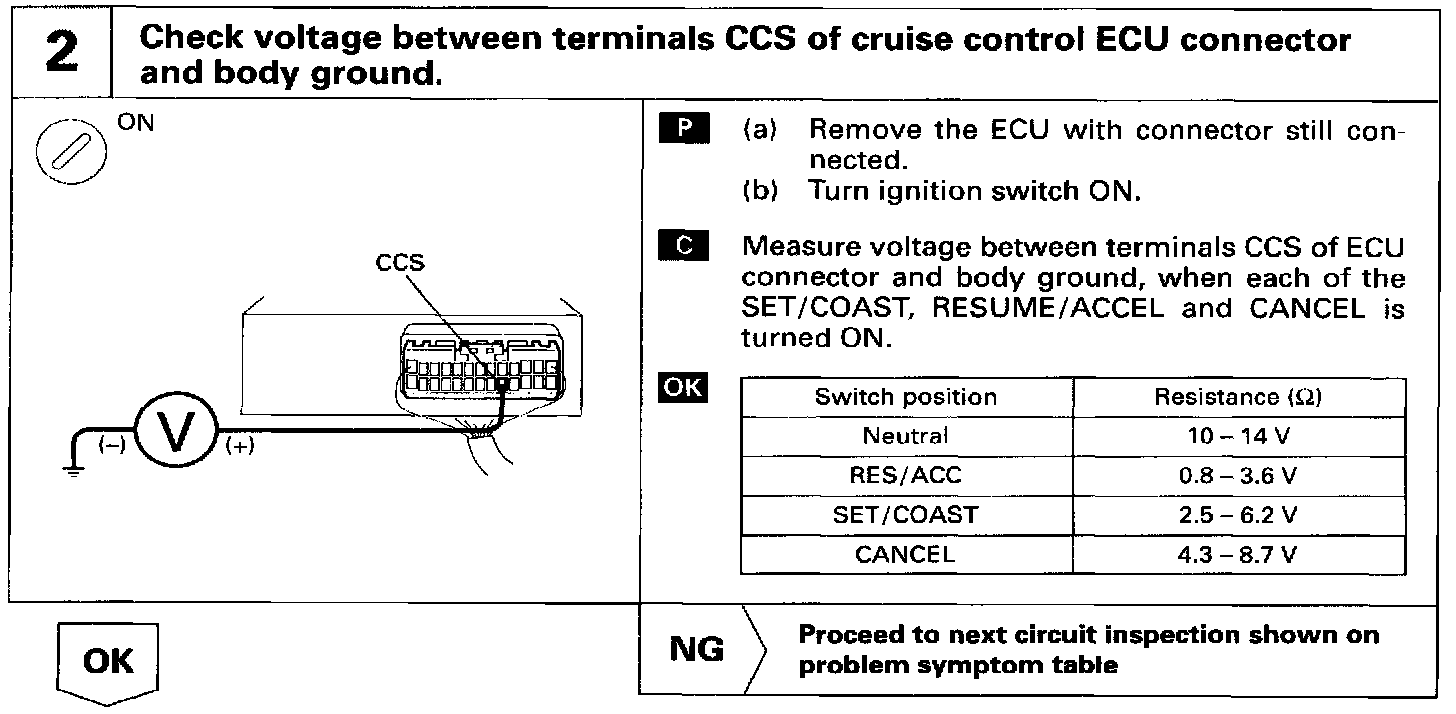

INSPECTION PROCEDURE
