M/T Technical Data

W58 5-spd M/T, Clutch Clearance / Tolerance:






W58 5-spd M/T, Gear Ratio:

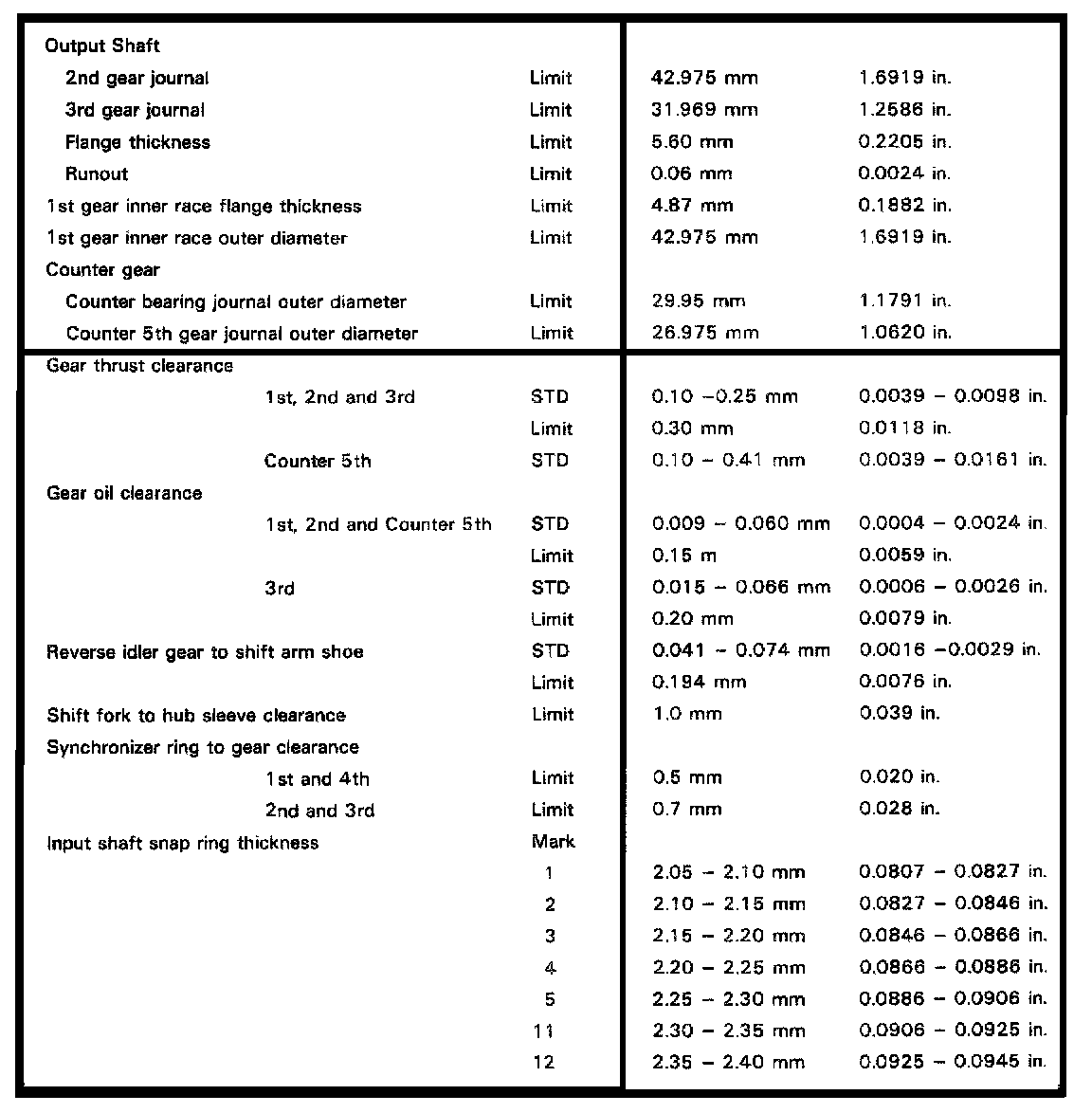

W58 5-spd M/T, Output Shaft / Gear Clearances:

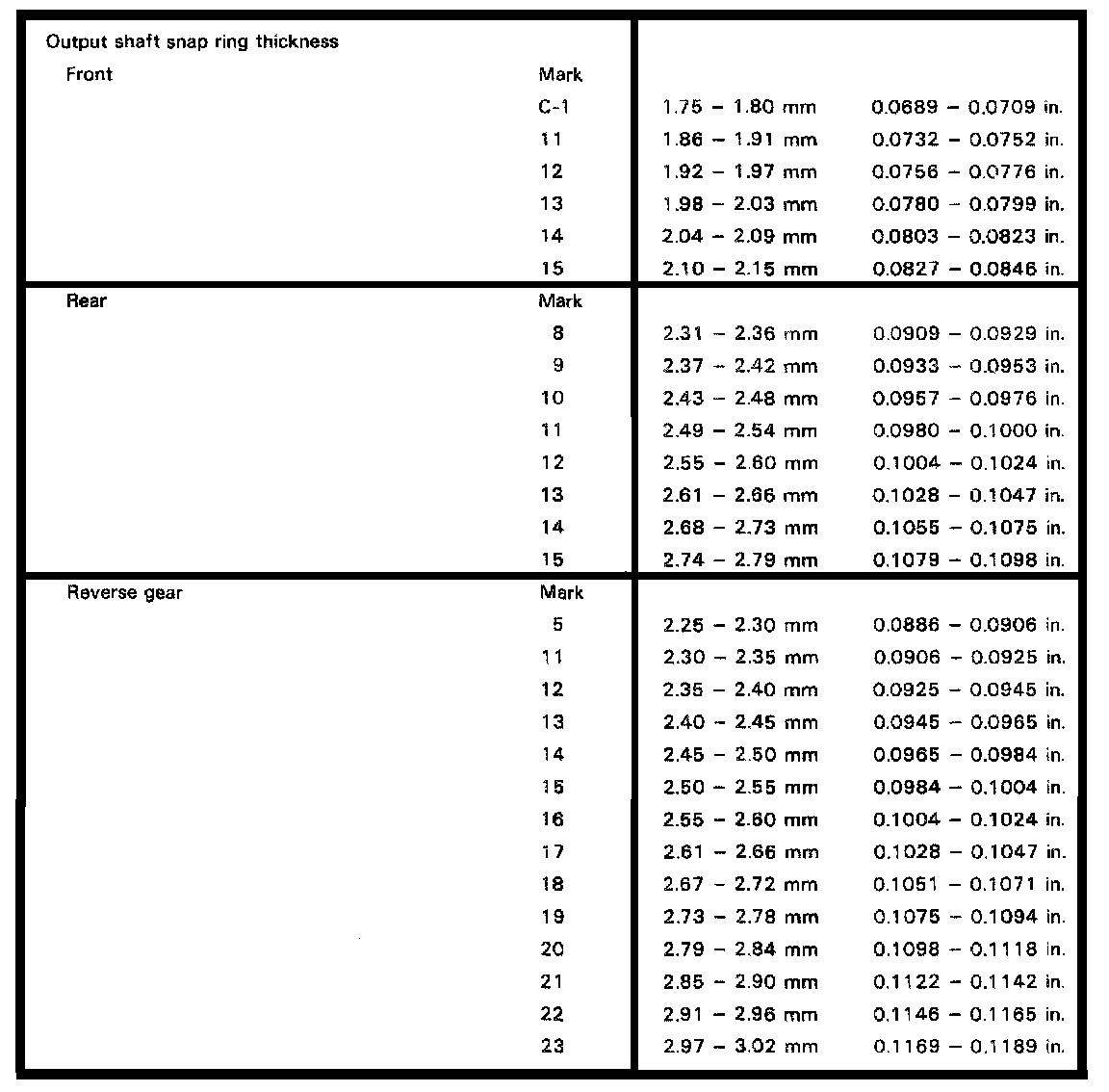

W58 5-spd M/T, Output Shaft Thickness:





W58 5-spd M/T, Counter Gear Thickness:
