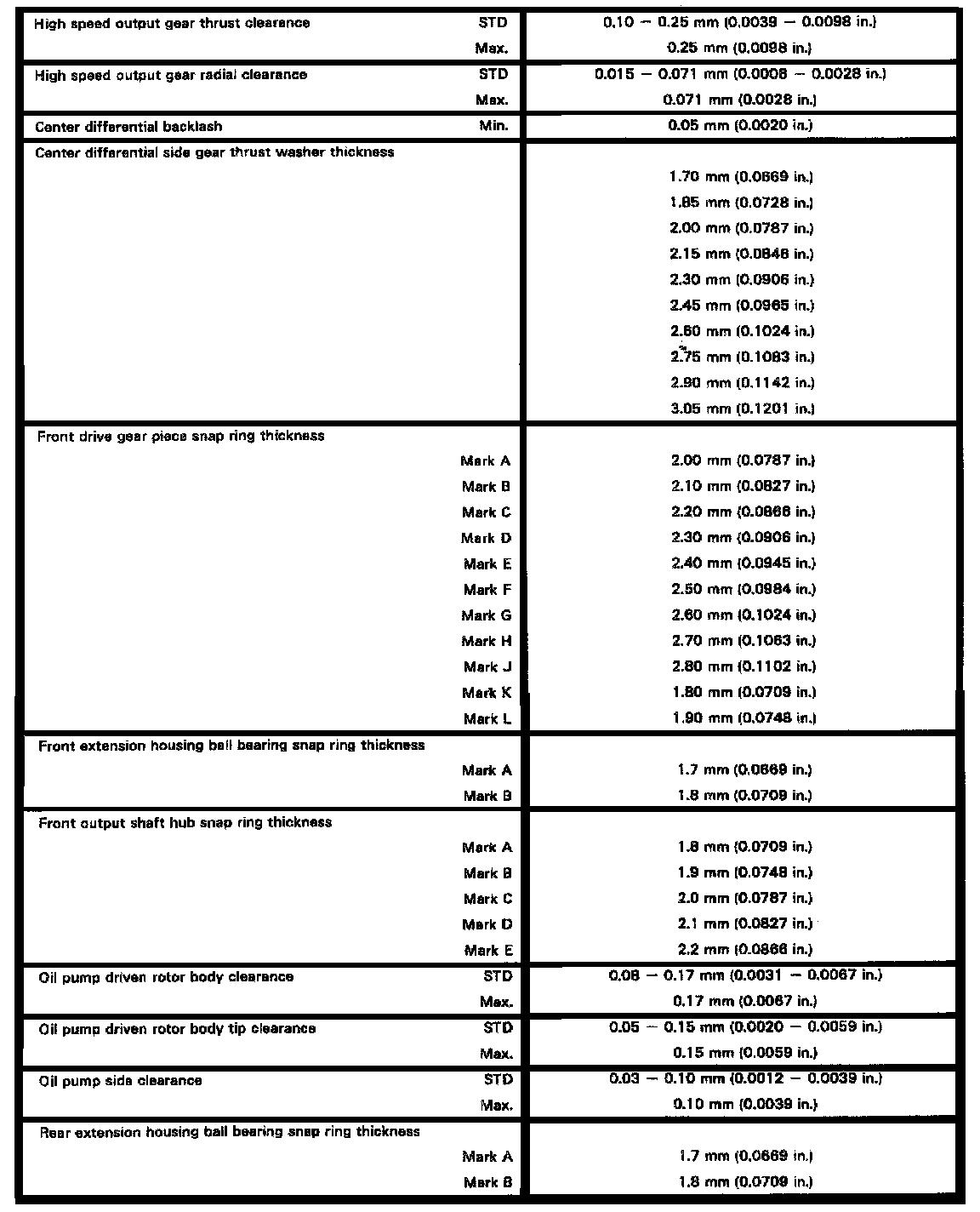

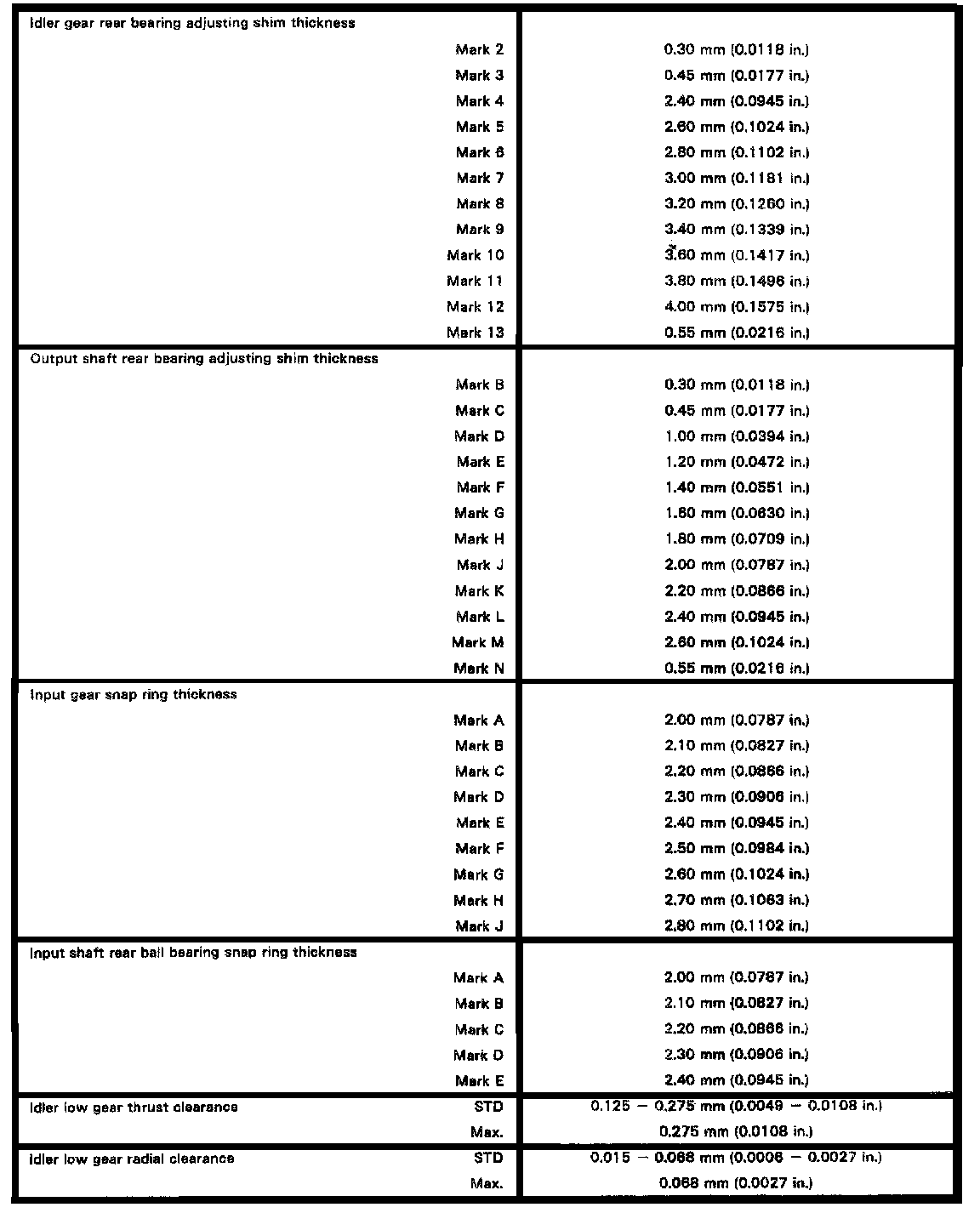

Transfer Case Technical Data

Four Wheel Drive, Transfer Case Thicknesses:





Four Wheel Drive, Transfer Case Backlash / Thickness:





Four Wheel Drive, Transfer Bearing Thickness:
