Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

DETECTING CONDITION

WIRING DIAGRAM

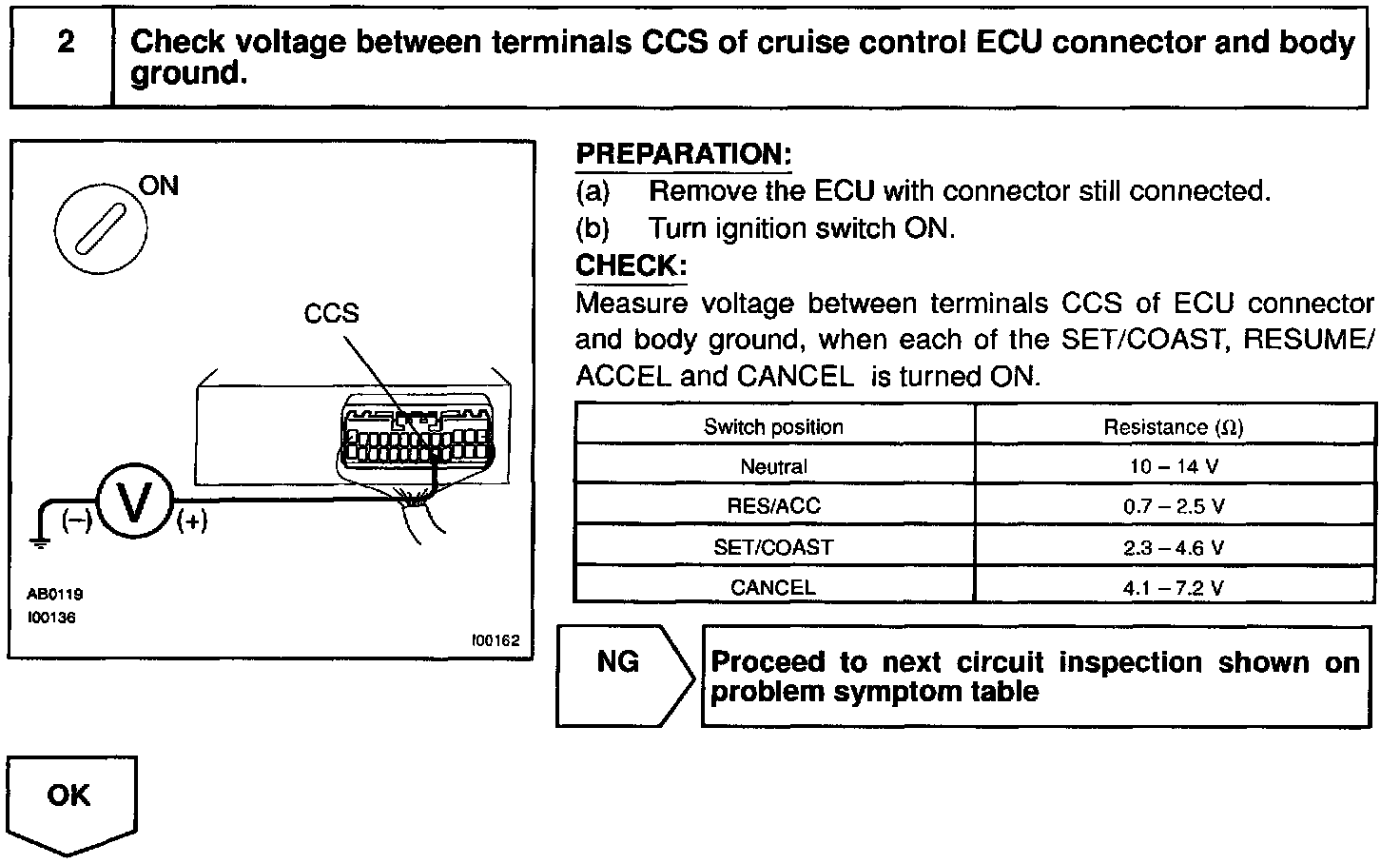

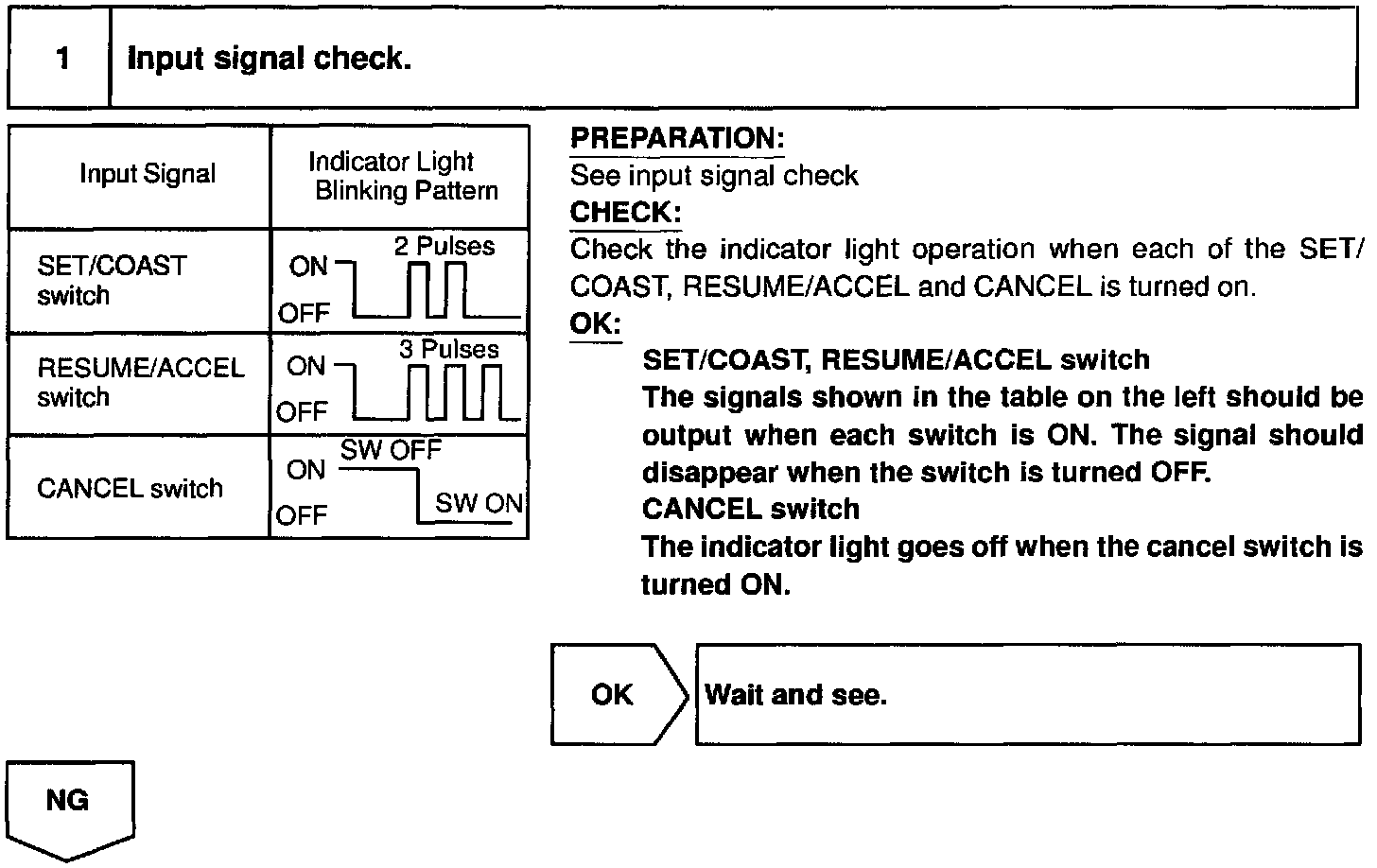

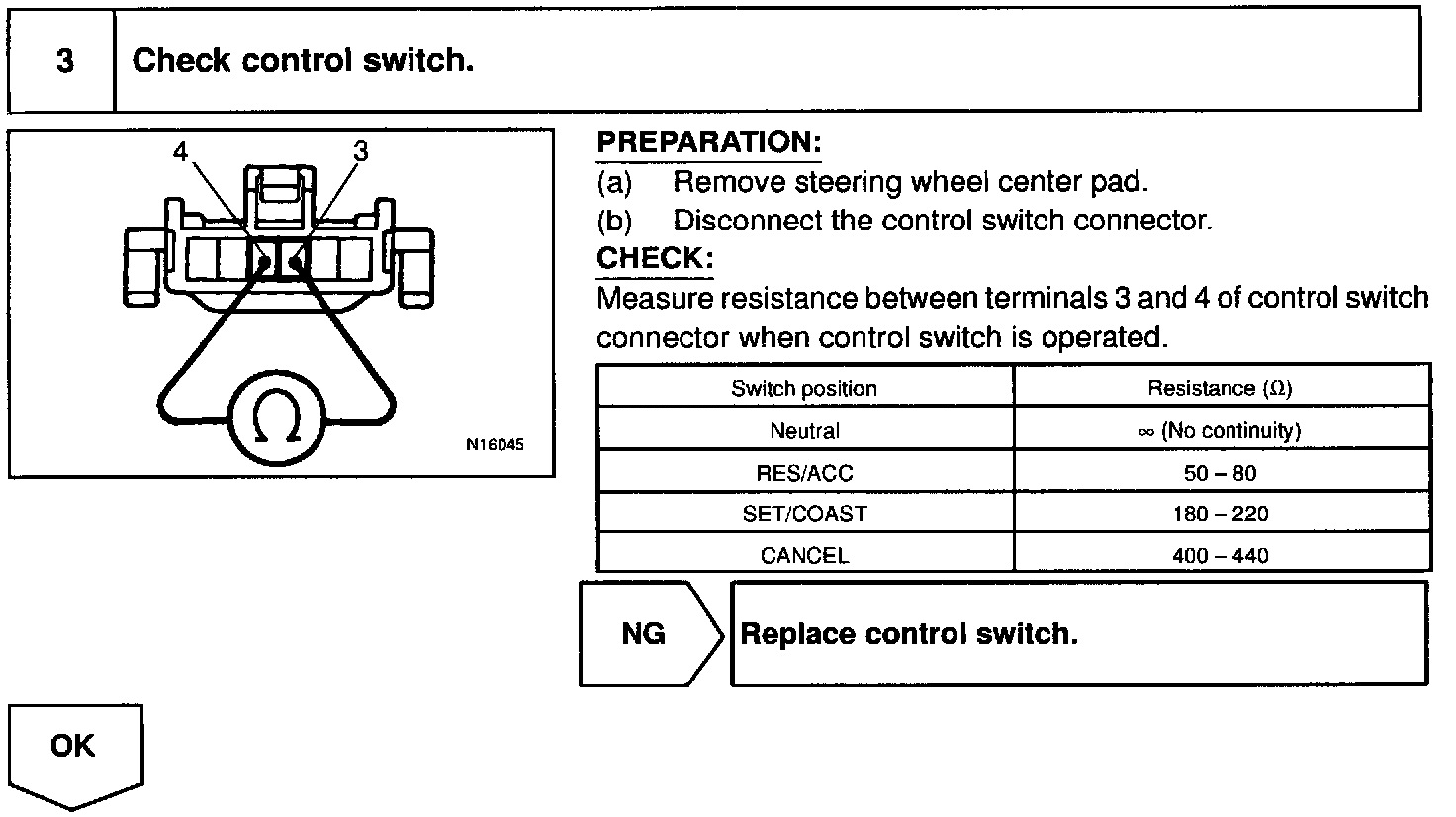

INSPECTION PROCEDURE
