Ground Locations

Ground Points:

GROUND POINTS

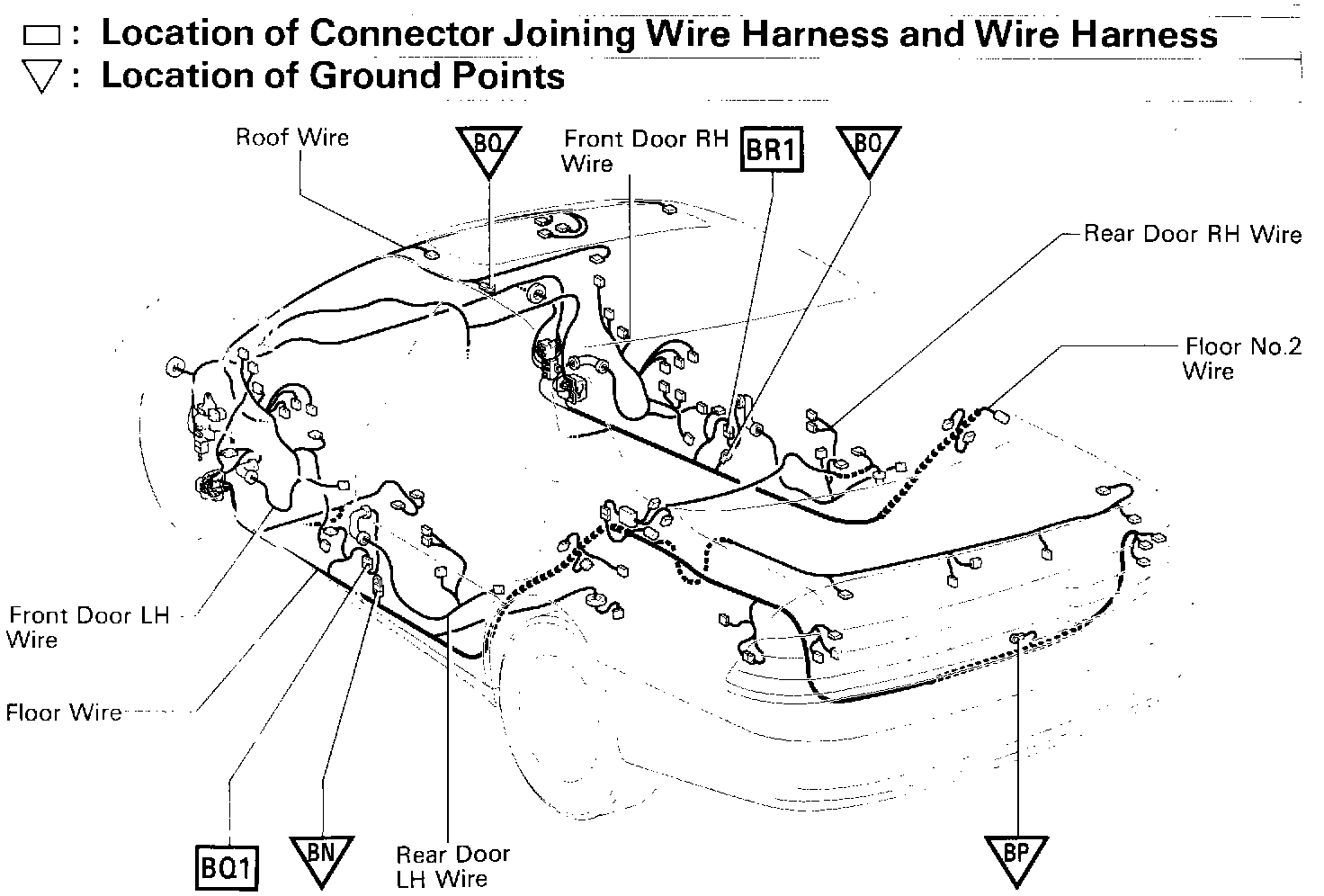

Location Of Connector Joining Wire Harness And Wire Harness Ground Points (Fig 34):

FIG 34

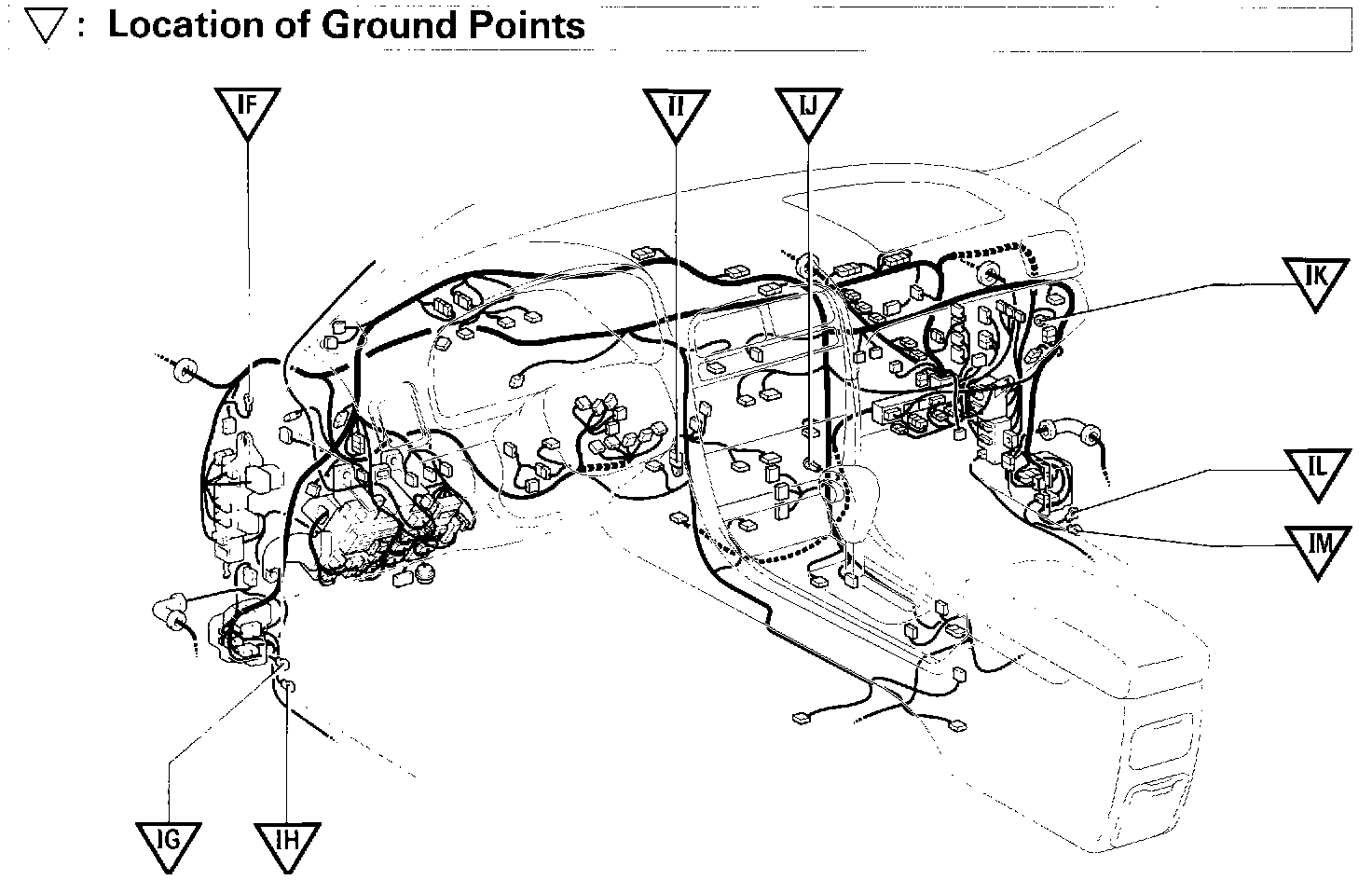

Location Of Ground Points (Fig 36):

FIG 36

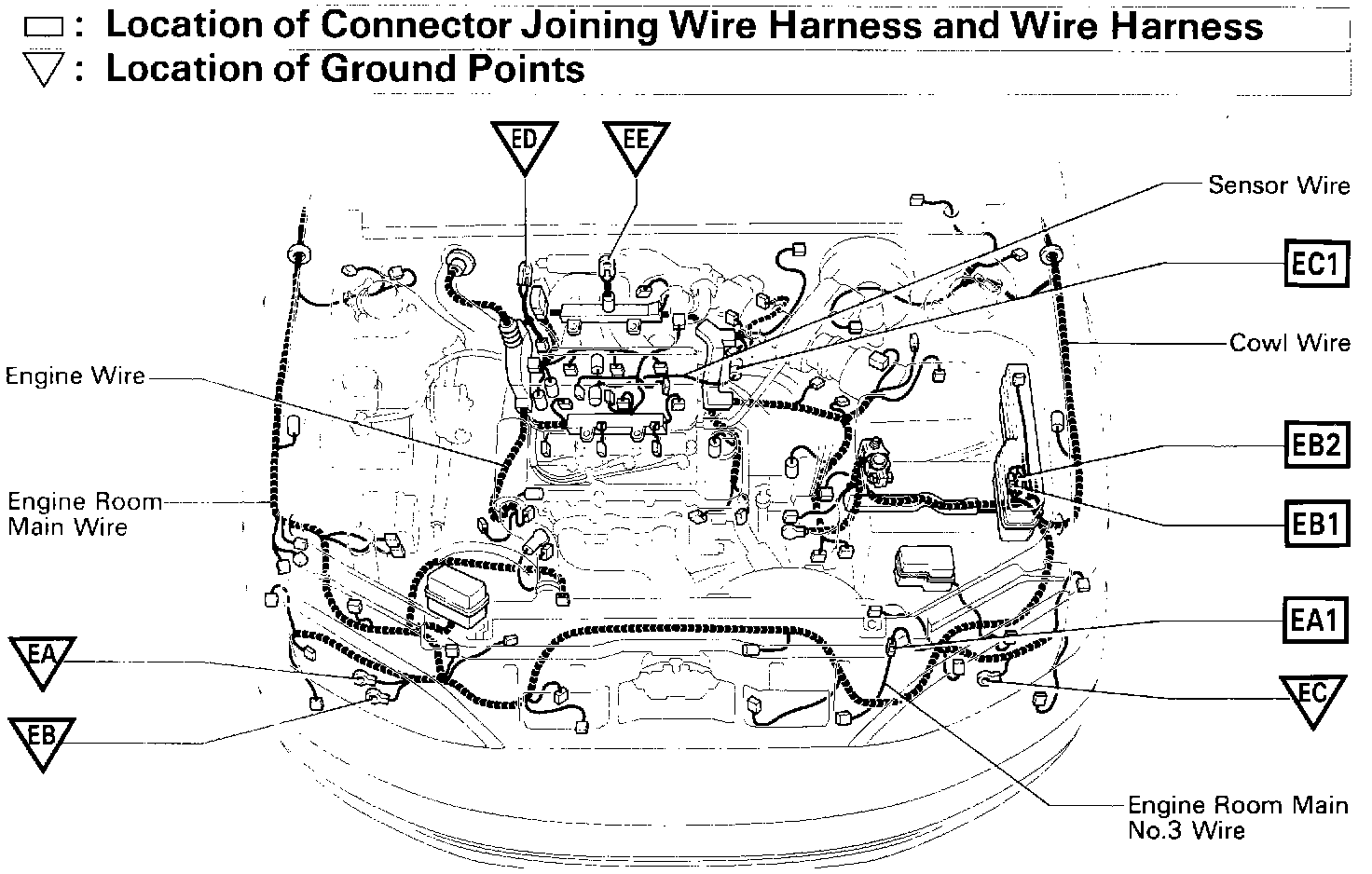

Location Of Connector Joining Wire Harness And Wire Harness Ground Points (Fig 40):

FIG 40
