Front Suspension

Measure and record camber and caster. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, loosen adjuster cam bolts. Rotate adjuster cams as necessary. See Fig 1. Tighten adjuster cam bolts to specification. See TORQUE SPECIFICATIONS .

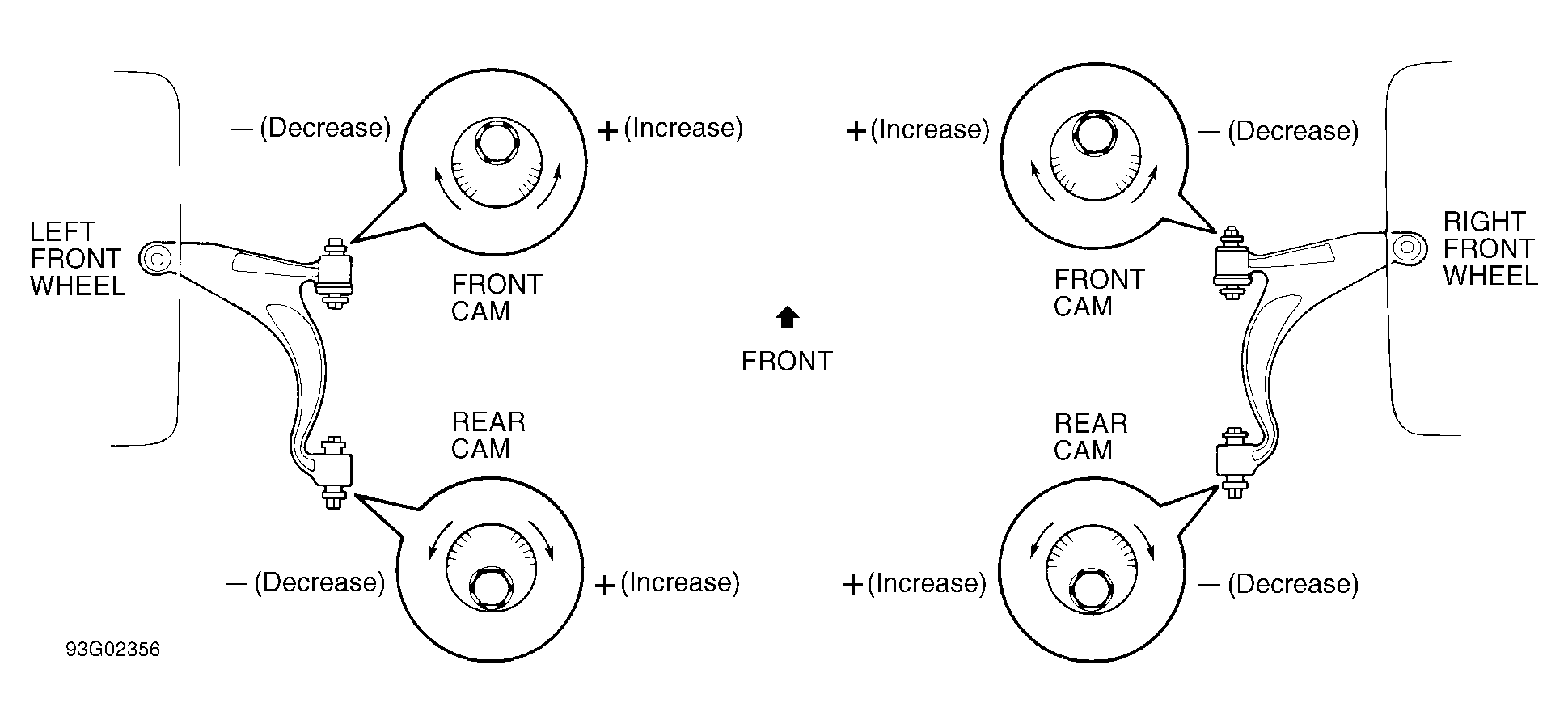

Fig 1: Identifying Front Camber & Caster Adjuster Cams
G93G02356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

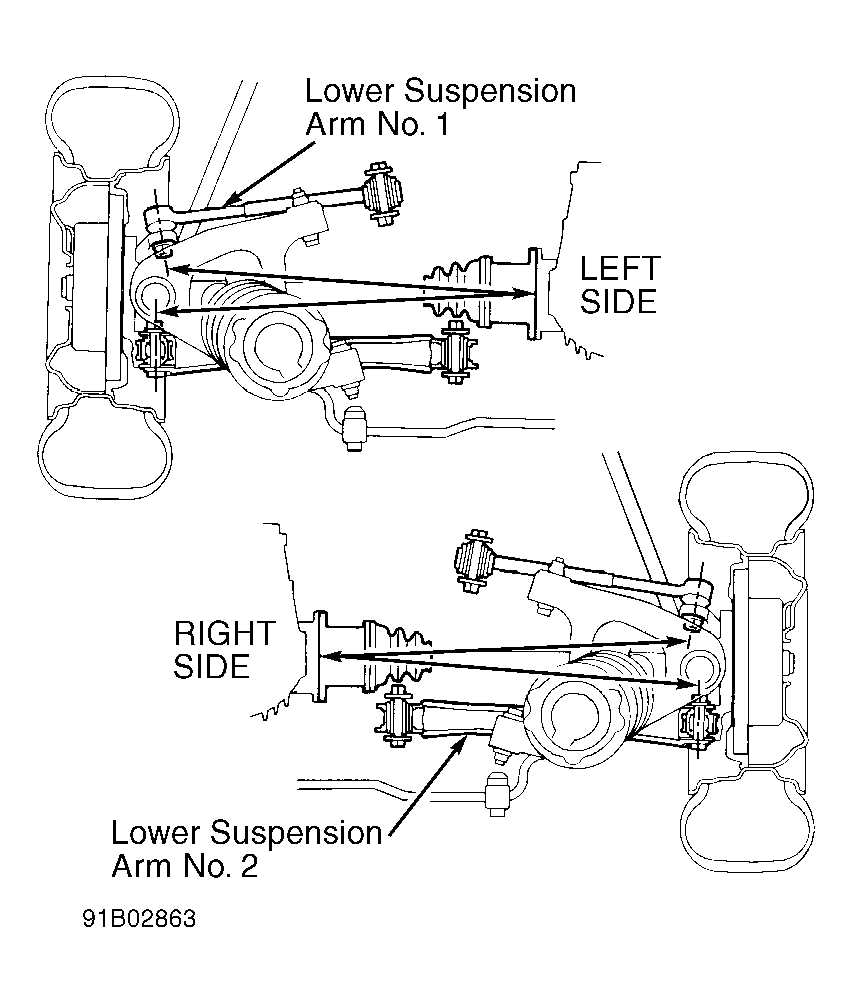

Fig 2: Measuring Rear Suspension Arm Length (Typical)
G91B02863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Rear suspension camber and toe-in are adjusted together.
