Code 78 - Fuel Pump Control Circuit

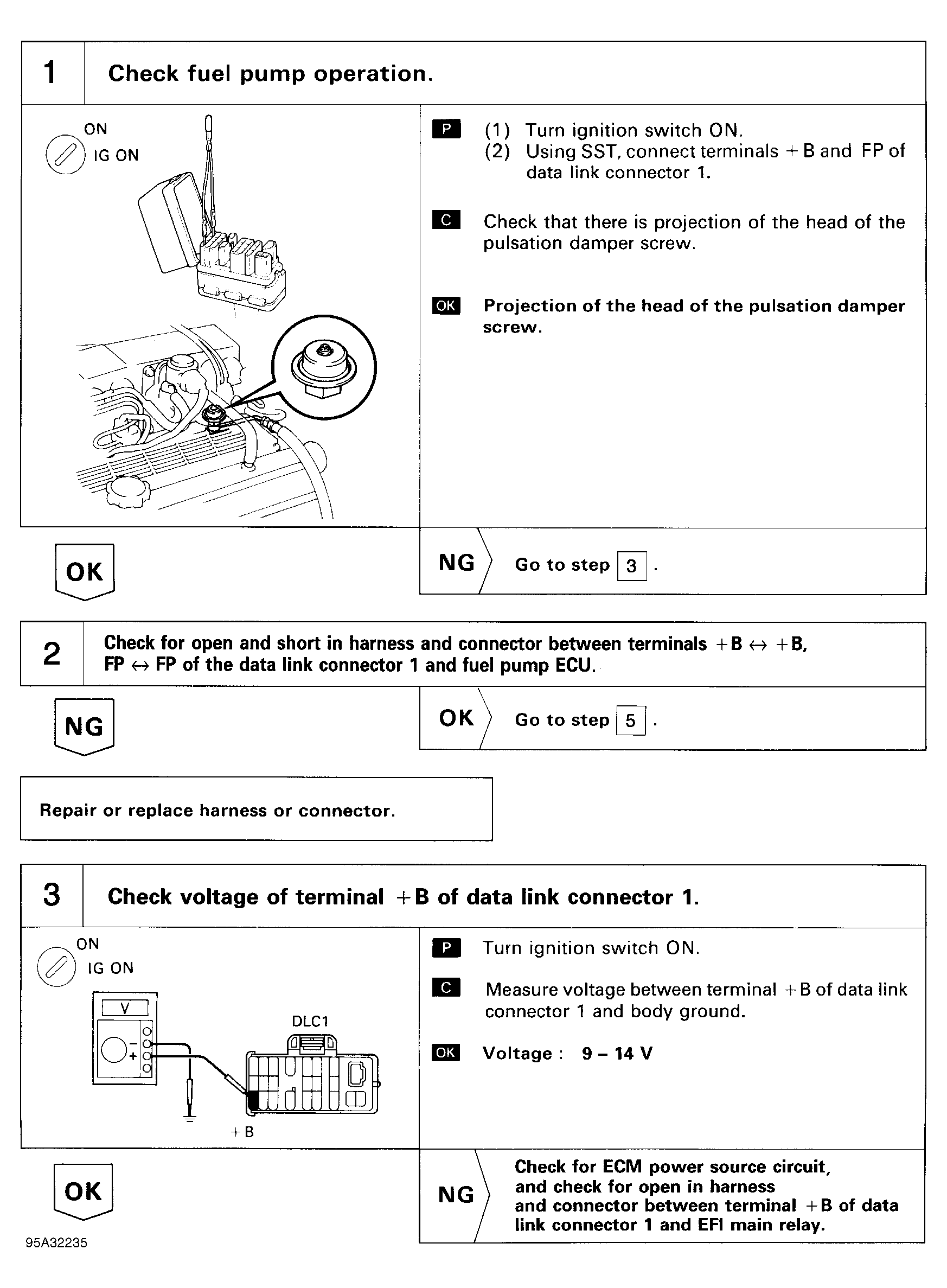

Fig 1: Code 78 Flow Chart (1 Of 2) Fuel Pump Control Circuit

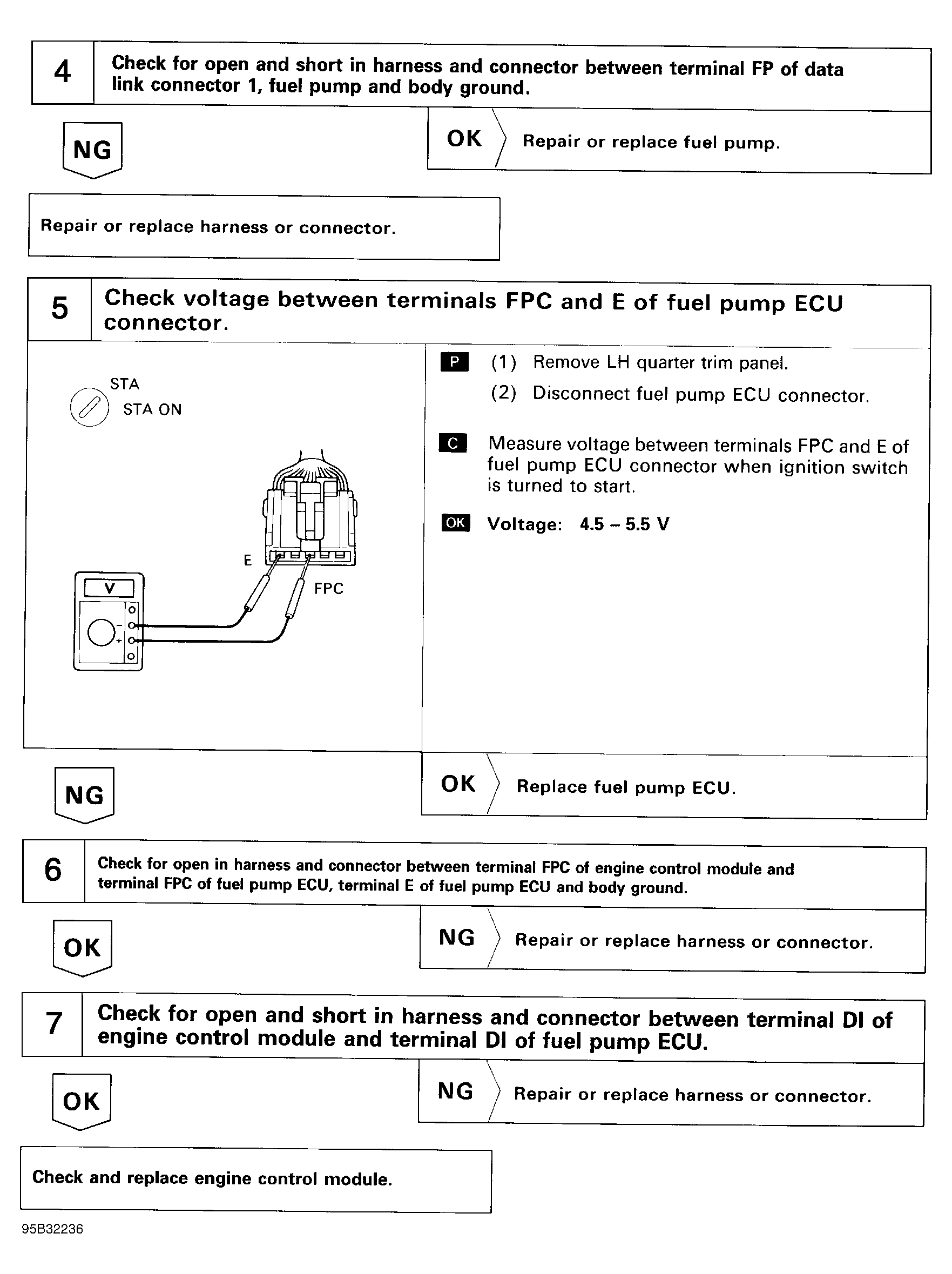

Fig 2: Code 78 Flow Chart (2 Of 2) Fuel Pump Control Circuit
