Code 43 - Starter Signal

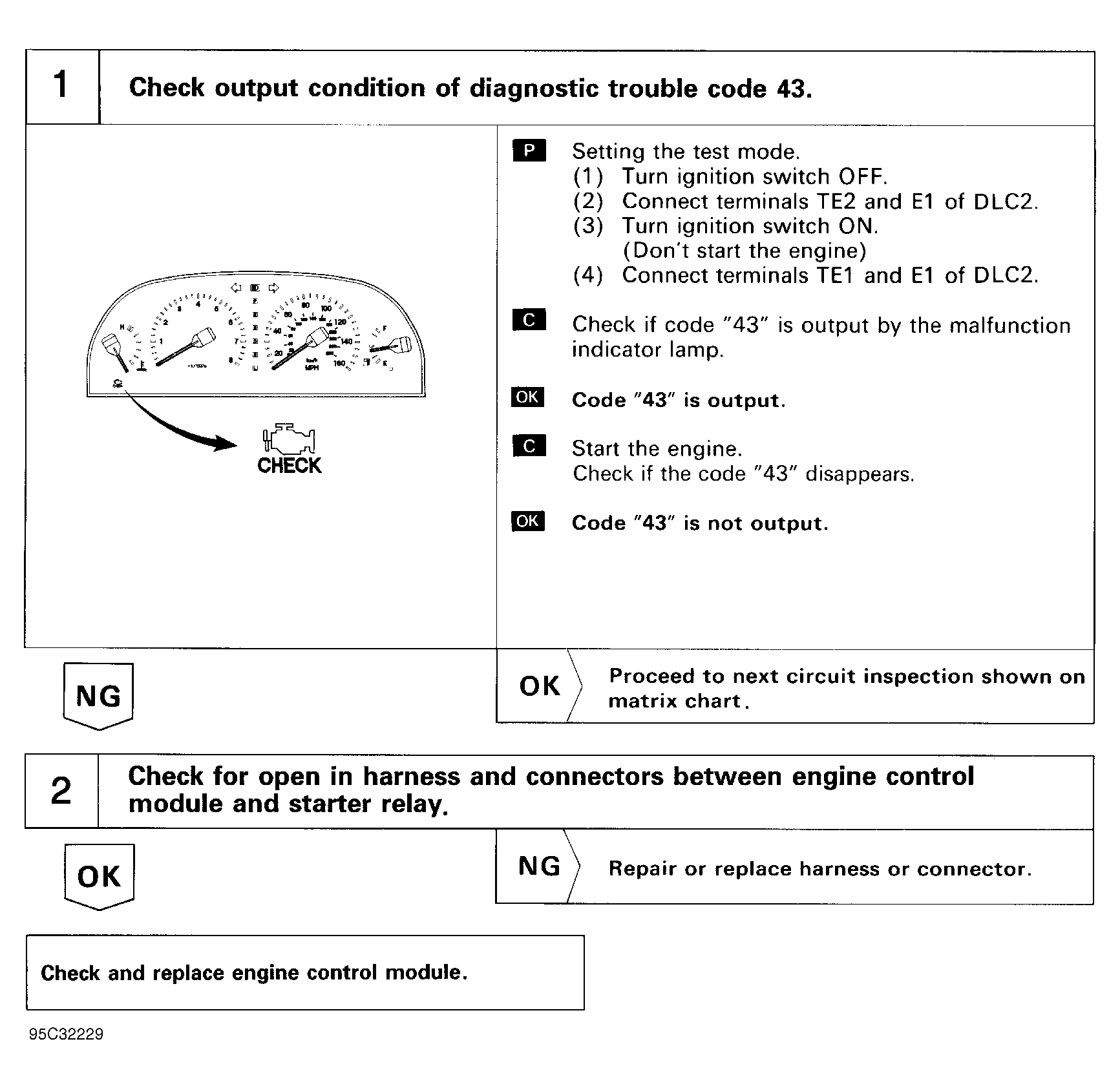

Fig 1: Code 43 Flow Chart Starter Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
