Connector Identification

CONNECTOR IDENTIFICATION

Description	Illustration
ABS Actuator (Non-TRAC)	See Fig 1
ABS Actuator (TRAC)	See Fig 2
ABS Electronic Control Unit (Non-TRAC)	See Fig 3
ABS Electronic Control Unit (TRAC)	See Fig 4

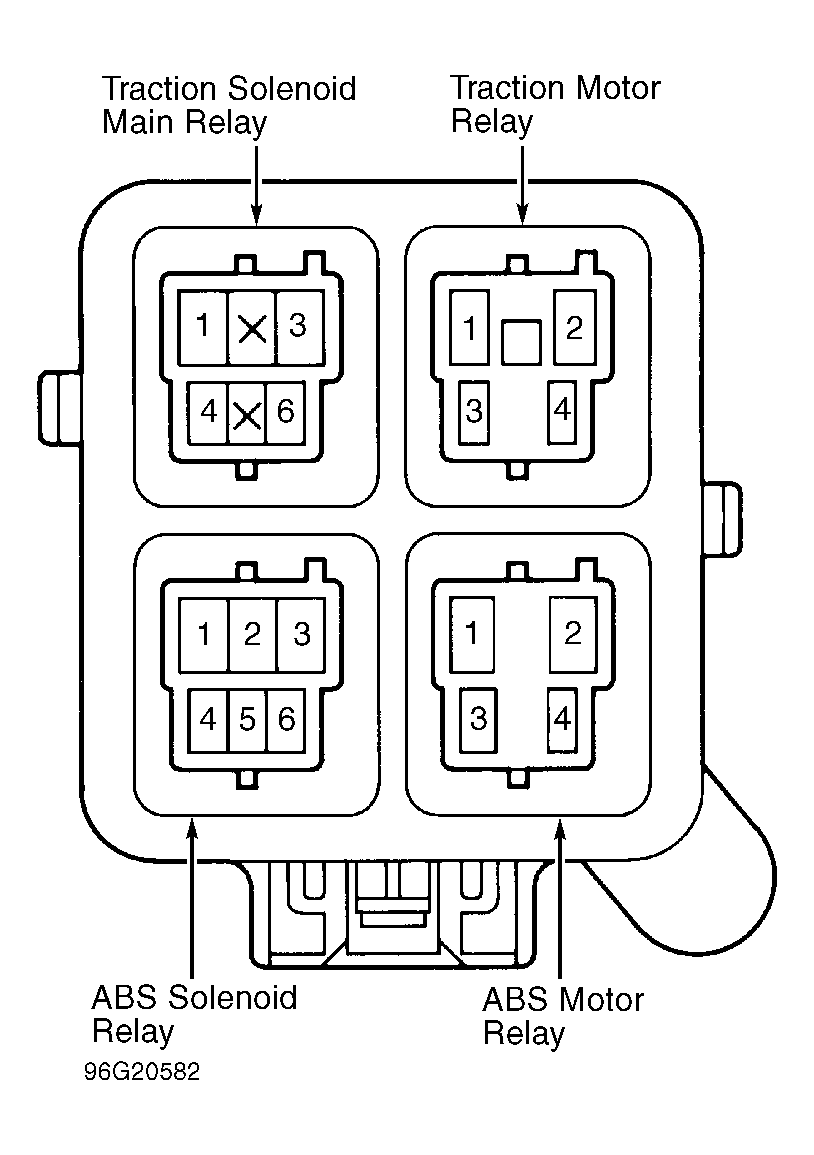

ABS Motor Relay	See Figure
ABS Solenoid Relay	See Figure
Schematic (ABS Motor Relay)	See Fig 5
Schematic (ABS Solenoid Relay)	See Fig 6
Schematic (TRAC Motor Relay)	See Fig 5
Schematic (TRAC Solenoid Relay)	See Fig 6
TRAC Actuator	See Fig 7
TRAC Electronic Control Unit	See Fig 8
TRAC Motor Relay	See Figure
TRAC Pump Motor	See Fig 9
TRAC Solenoid Relay	See Figure

Fig 1: Identifying ABS Actuator Harness Connector Terminals (Non-TRAC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying ABS Actuator Harness Connector Terminals (TRAC)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying ABS Electronic Control Unit (Non-TRAC) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECU TERMINAL IDENTIFICATION (NON-TRAC)

Fig 4: Identifying ABS Electronic Control Unit (TRAC) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECU TERMINAL IDENTIFICATION (WITH TRAC)

Fig 5: Identifying Schematic (ABS Motor Relay, TRAC Motor Relay)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Schematic (ABS Solenoid Relay & TRAC Solenoid Relay)

Fig 7: Identifying TRAC Actuator Harness Connector

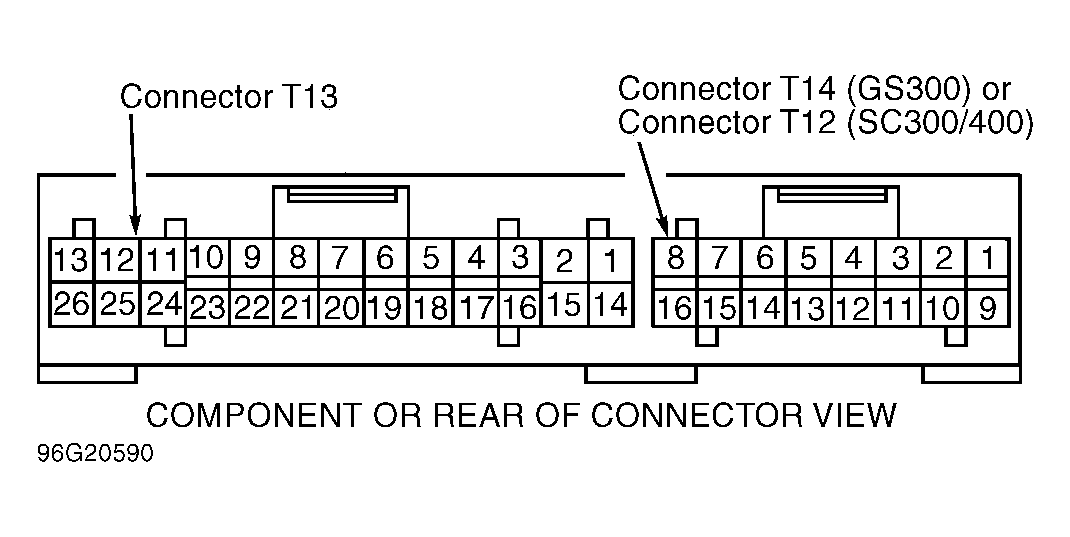

Fig 8: Identifying TRAC Electronic Control Unit Terminals

Fig 9: Identifying TRAC Pump Motor Harness Connector Terminals
