Rear Suspension

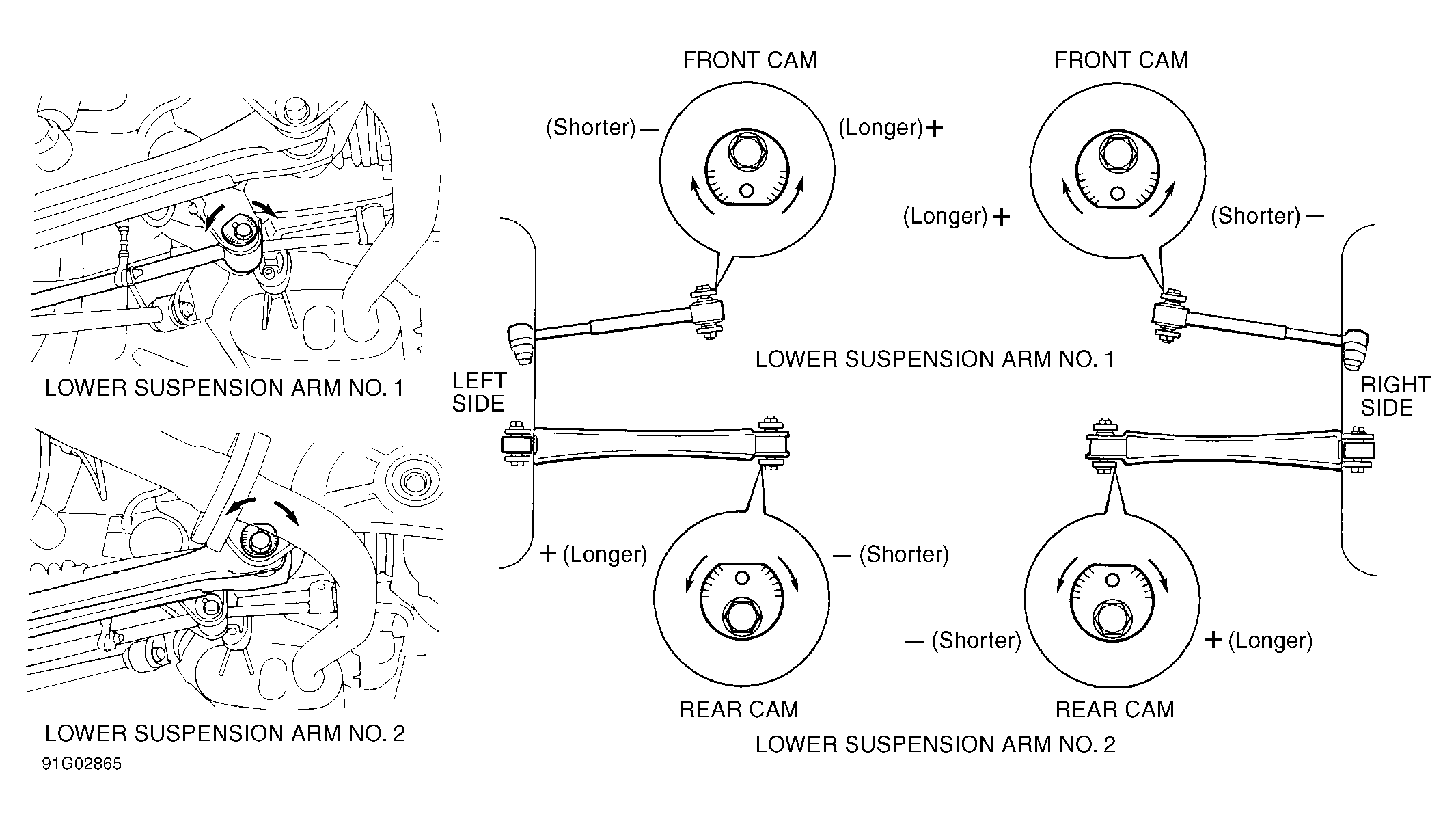

Ensure rear camber is correct. See CAMBER ADJUSTMENT under WHEEL ALIGNMENT PROCEDURES. Bounce both ends of vehicle several times to settle suspension. Measure toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If toe-in is not within specification, loosen adjuster cam bolts. Adjust toe-in by turning adjuster cams. See Figure. Tighten adjuster cam bolts to specification. See TORQUE SPECIFICATIONS .
