Engine Compartment

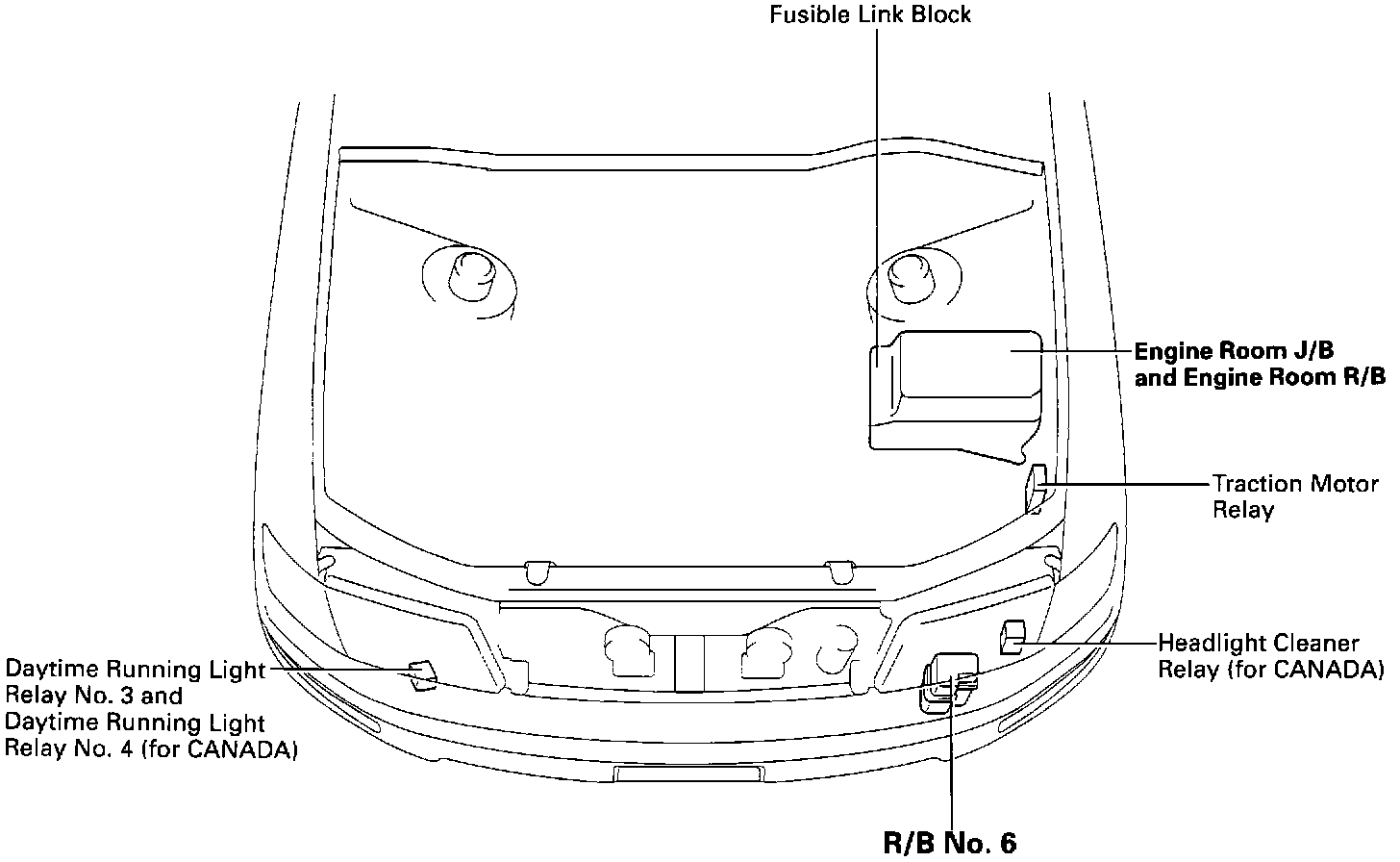

Locations-Engine Compartment (Fig 18):





Daytime Running Light Relay No.3 and Daytime Running Light Relay No.4 (for CANADA)

Engine Room J/B and Engine Room R/B

Fusible Link Block

Headlight Cleaner Relay (for CANADA)

R/B No.6

Traction Motor Relay
