Connector Identification

CONNECTOR IDENTIFICATION

Description	Illustration
ABS Actuator	See Fig 1
ABS Control Relay Harness	See Fig 2
ABS Control Relay Component	See Fig 3
Electronic Control Unit	See Fig 4

Fig 1: Identifying ABS Actuator Harness Connector Terminals

G96E19640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying ABS Control Relay Harness Connector Terminals

G96B19639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

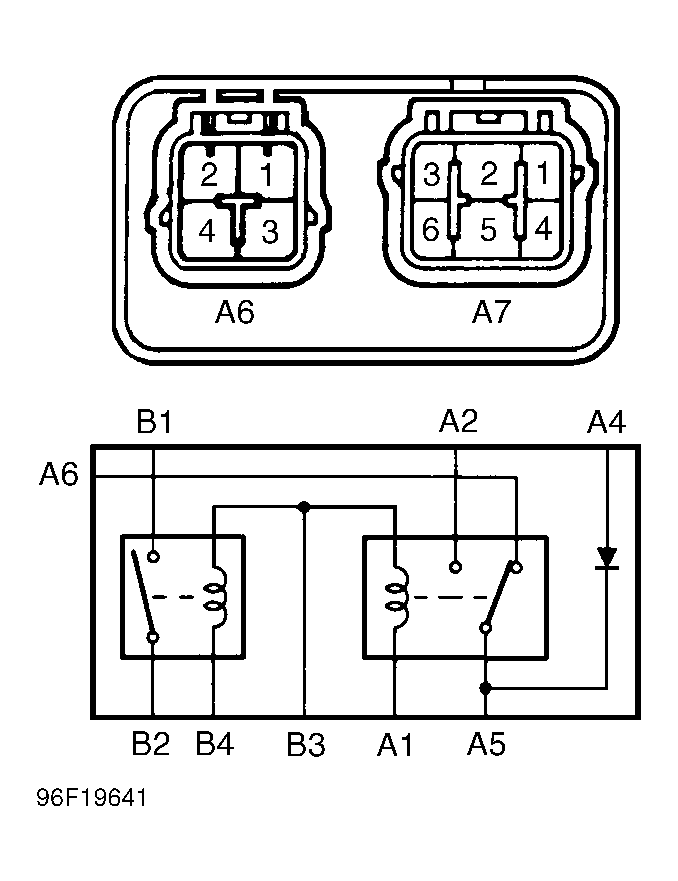

Fig 3: Identifying ABS Control Relay Component Connector Terminals

G96F19641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

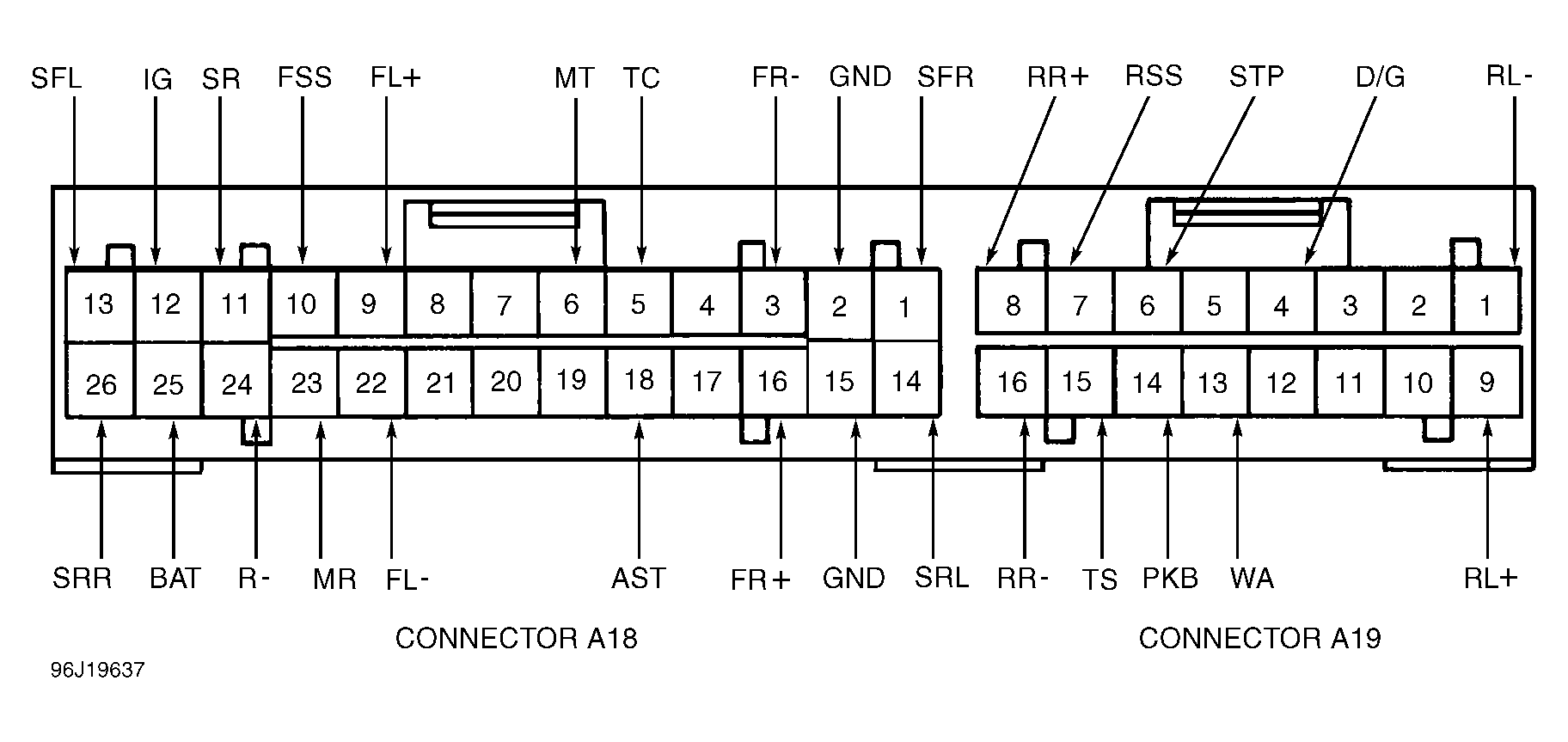

Fig 4: Identifying Electronic Control Unit Terminals

G96J19637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
