Driver's Door

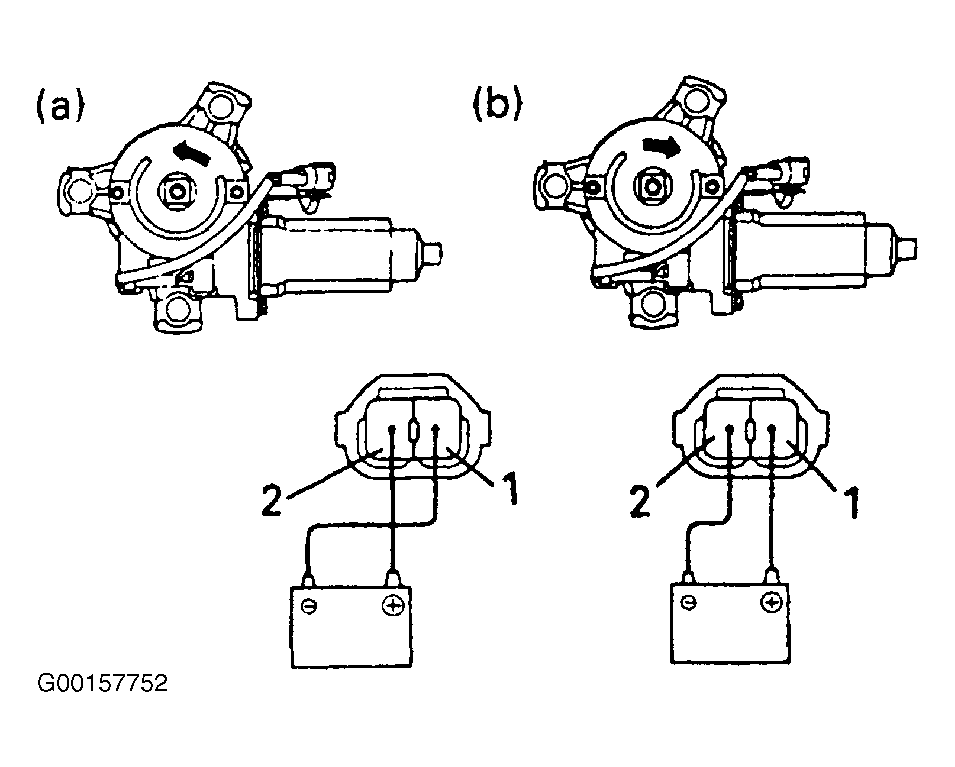

- Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns counterclockwise. See Fig 1.
- Reverse the polarity, check that the motor turns clockwise. See Fig 1. If operation is not as specified, replace the motor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
