Test 5 - Headlight Control Relay Circuit

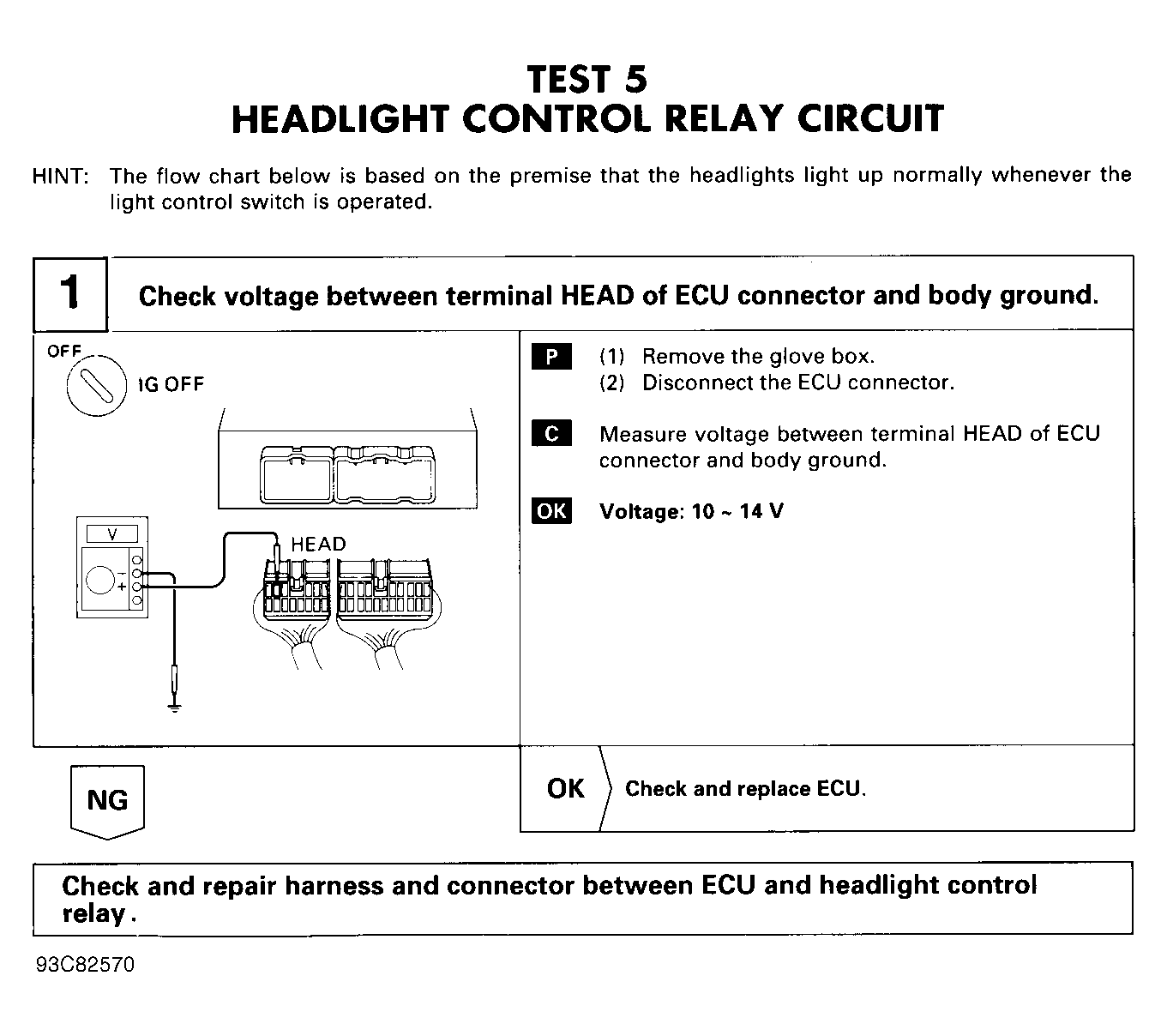

Fig 1: Test 5 - Headlight Control Relay Circuit
G93C82570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
