Throttle Valve Cable

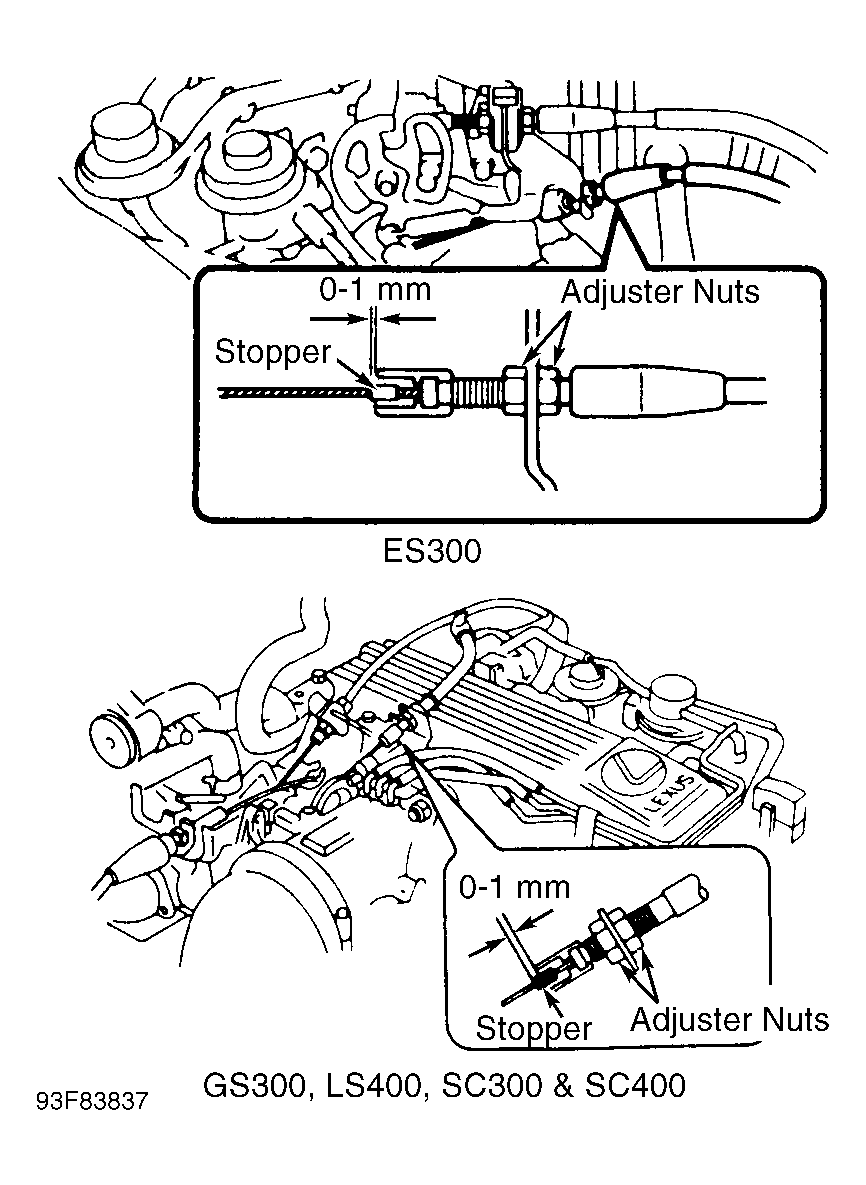

Remove throttle body cover. Measure distance between outer cable and cable stopper, with accelerator pedal in idle position. Rotate adjuster nuts as required to adjust distance to 0-.04" (0-1.0 mm). See Fig 1.
Remove throttle body cover. Measure distance between outer cable and cable stopper, with accelerator pedal in idle position. Rotate adjuster nuts as required to adjust distance to 0-.04" (0-1.0 mm). See Fig 1.
