Test 1 - Indicator Light Circuit

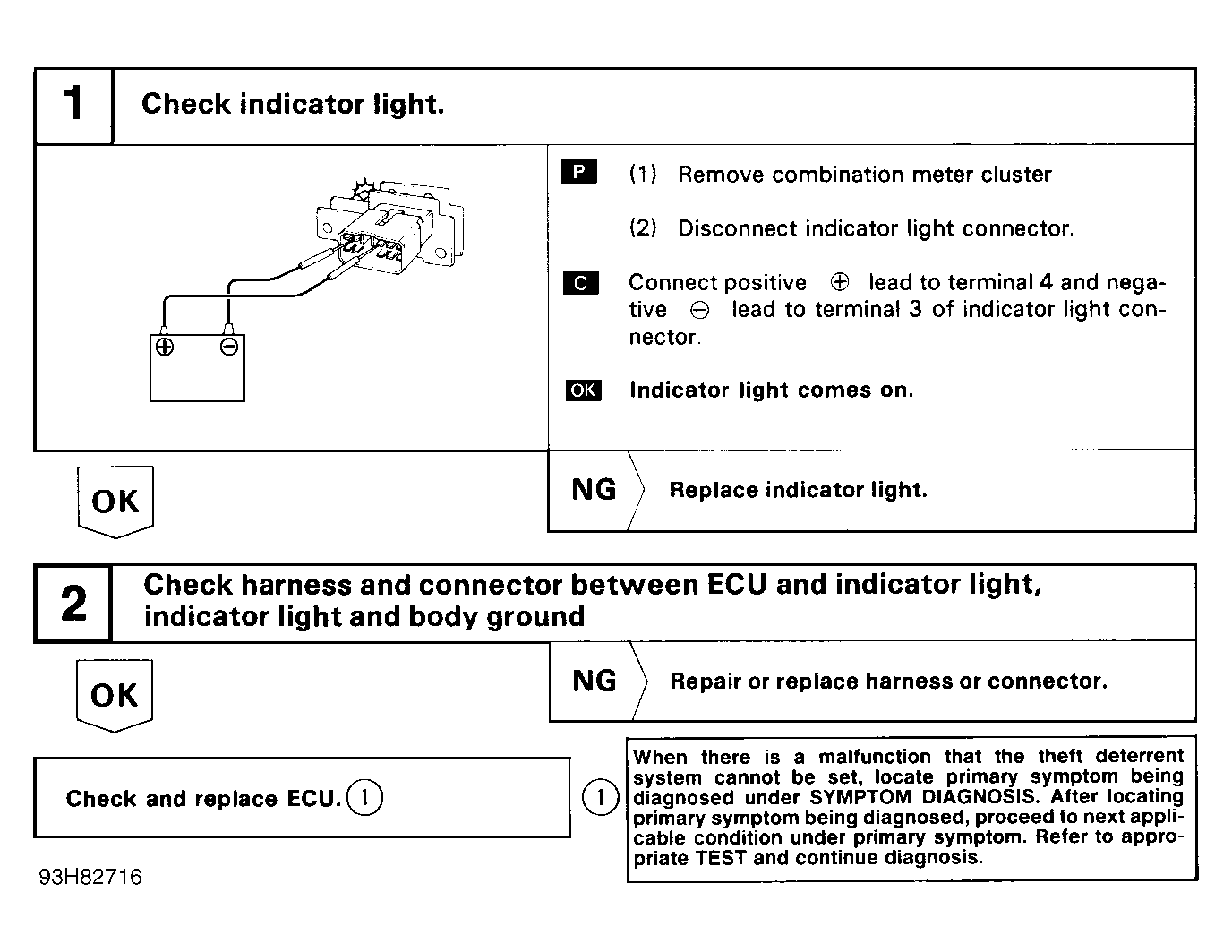

Fig 1: Test 1 - Indicator Light Circuit
G93H82716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
