Power Steering Pump: Disassembly
- Clamp pump body in vise. Remove pulley, using Shaft Holder (09278-54012 ) to prevent rotation. Remove reservoir. Remove pressure port fitting, flow control valve, and spring. Remove rear housing.

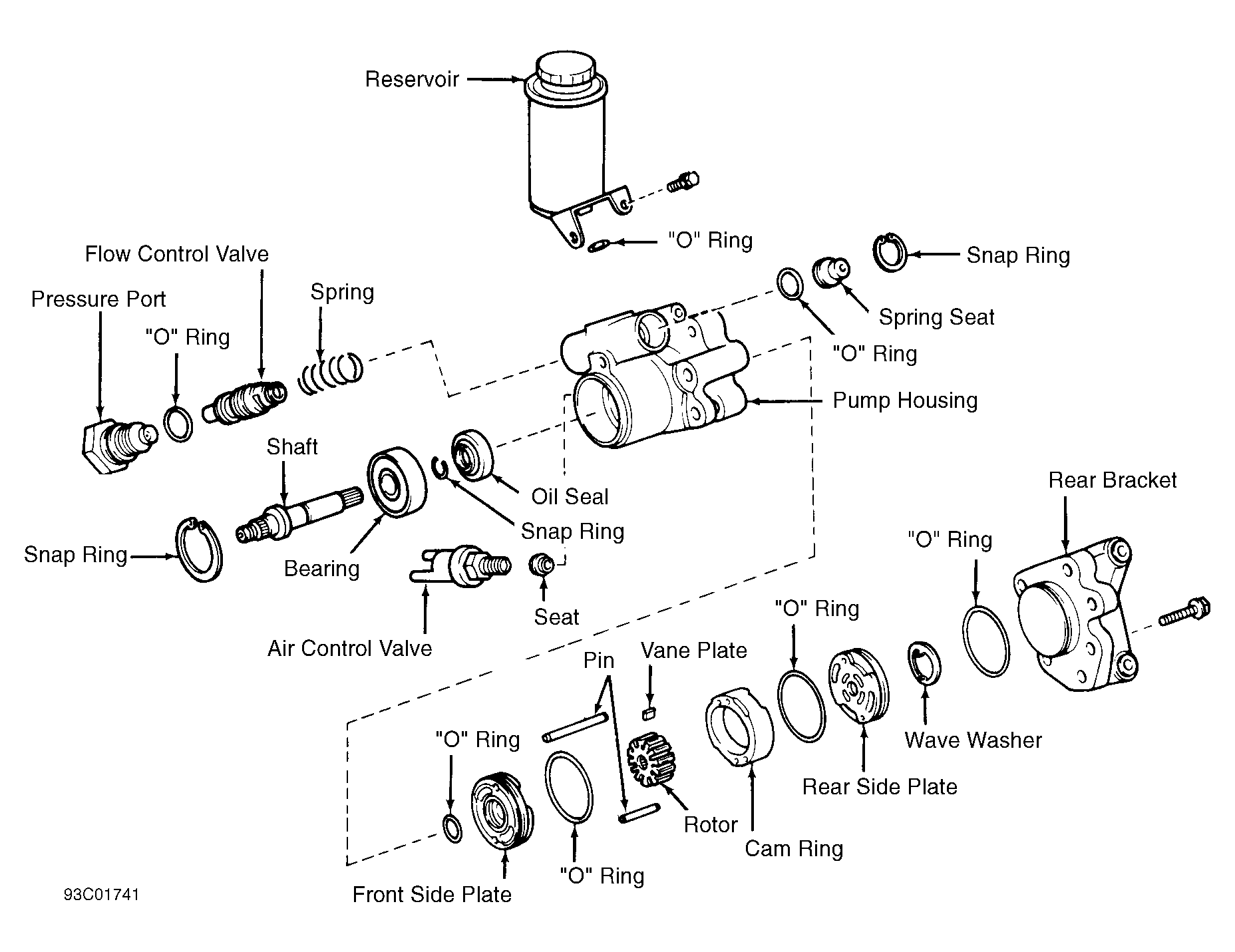

- Remove cam ring, rotor, and vane plates. Remove pins. Remove snap ring. Remove shaft and bearing as an assembly. Press bearing from shaft. Remove rear side plate. See Fig 1.
