Codes 52, 53 & 55 - Knock Sensor Circuit

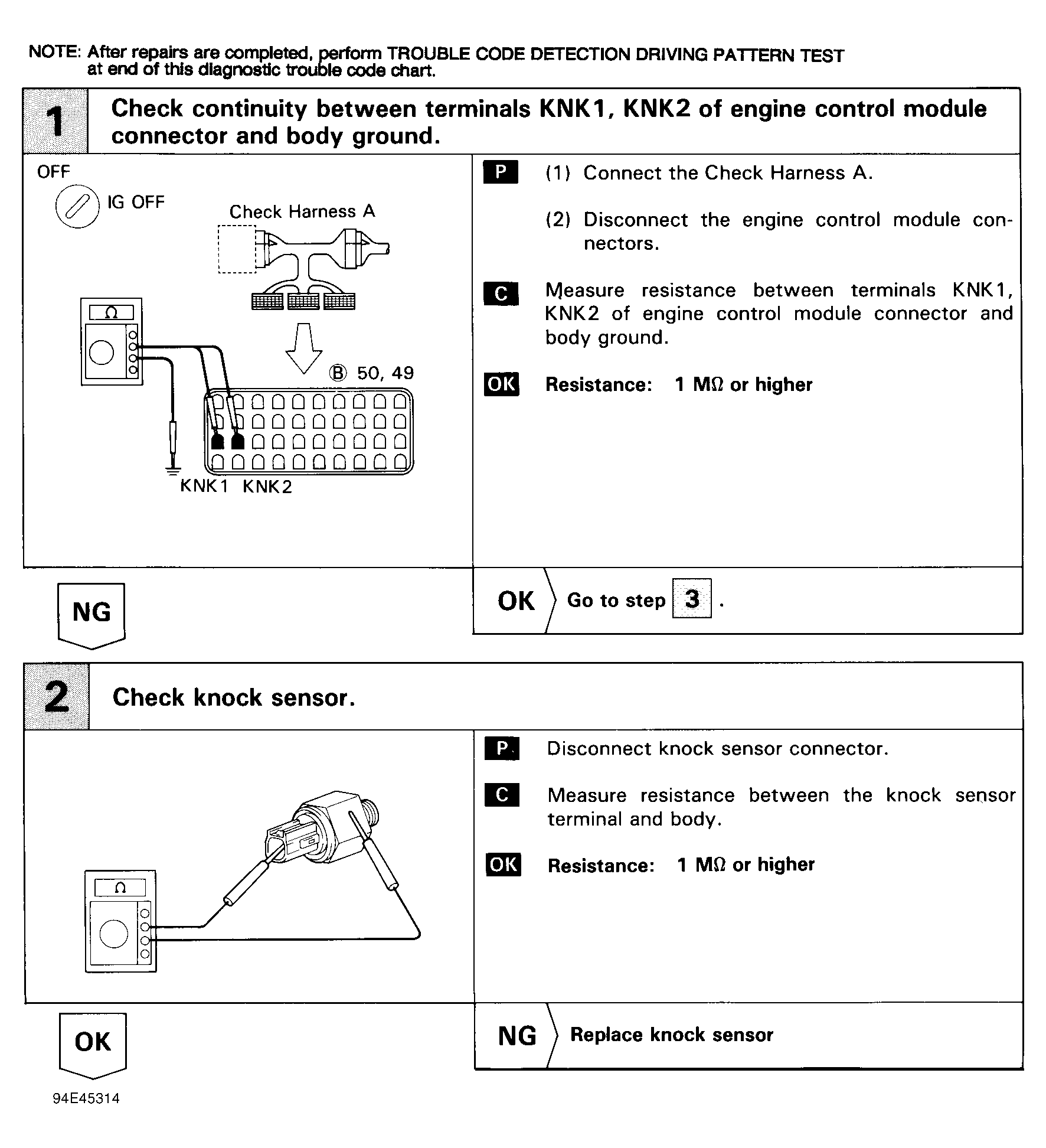

Fig 1: Code 52, 53 & 55 Flow Chart - 1 Of 2 (SC300) Knock Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

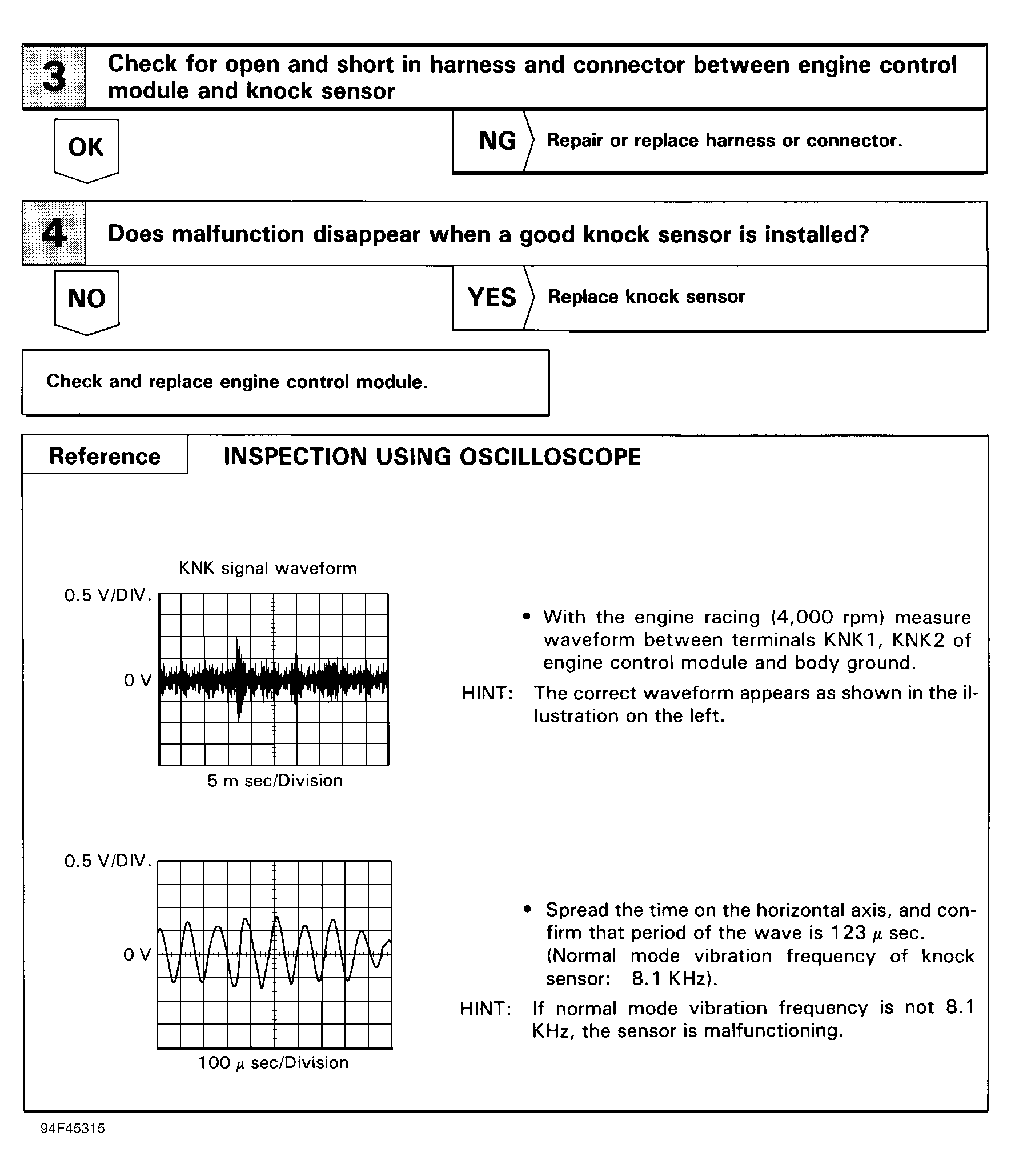

Fig 2: Code 52, 53 & 55 Flow Chart - 2 Of 2 (SC300) Knock Sensor Circuit

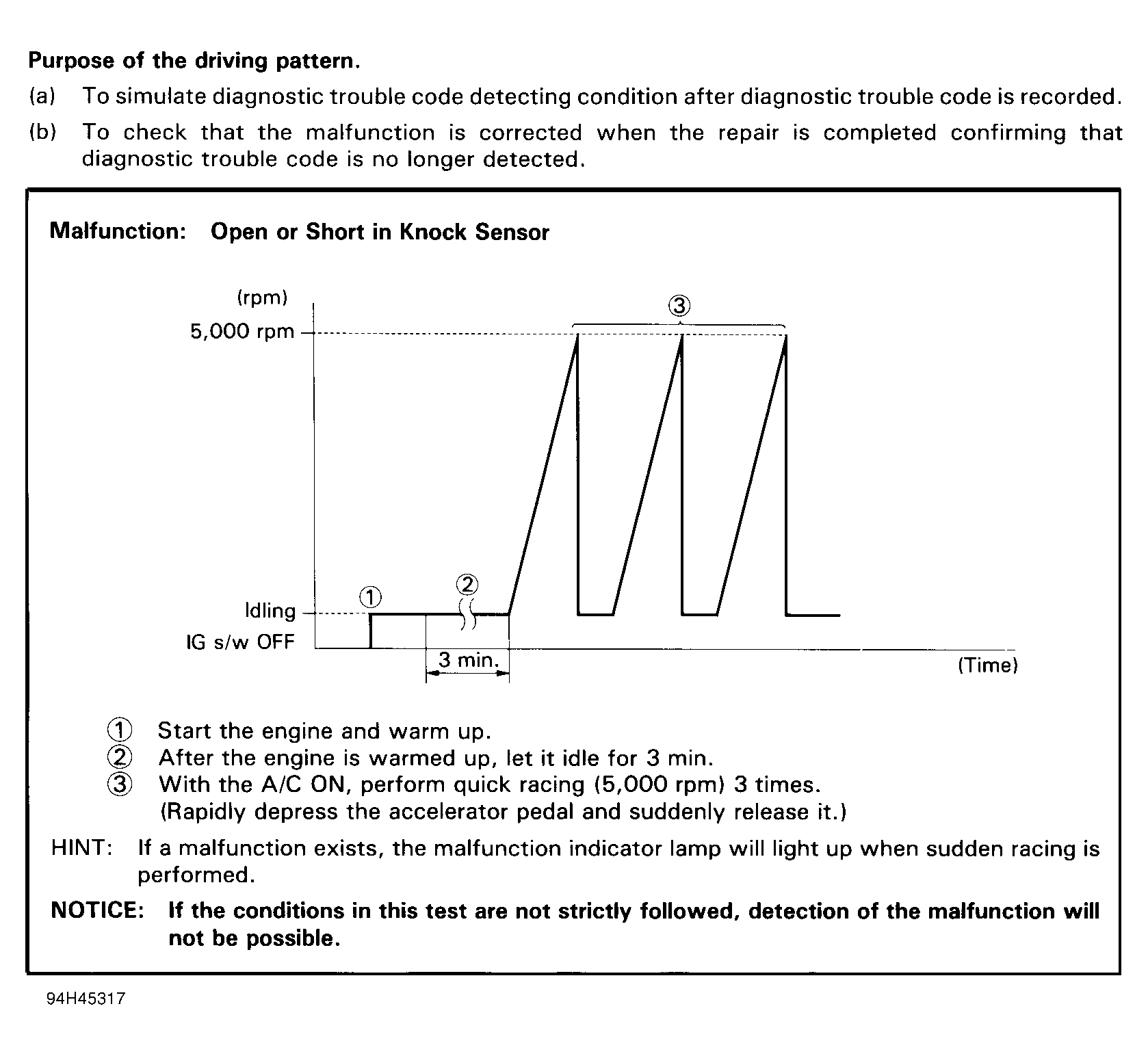

Fig 3: Code 52, 53 & 55 Diag. Trouble Code Detection Test (SC300) Knock Sensor Circuit
