Code 48 - Secondary Air Injection Malfunction (CALIF)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code 48 - Secondary Air Injection Malfunction (CALIF)

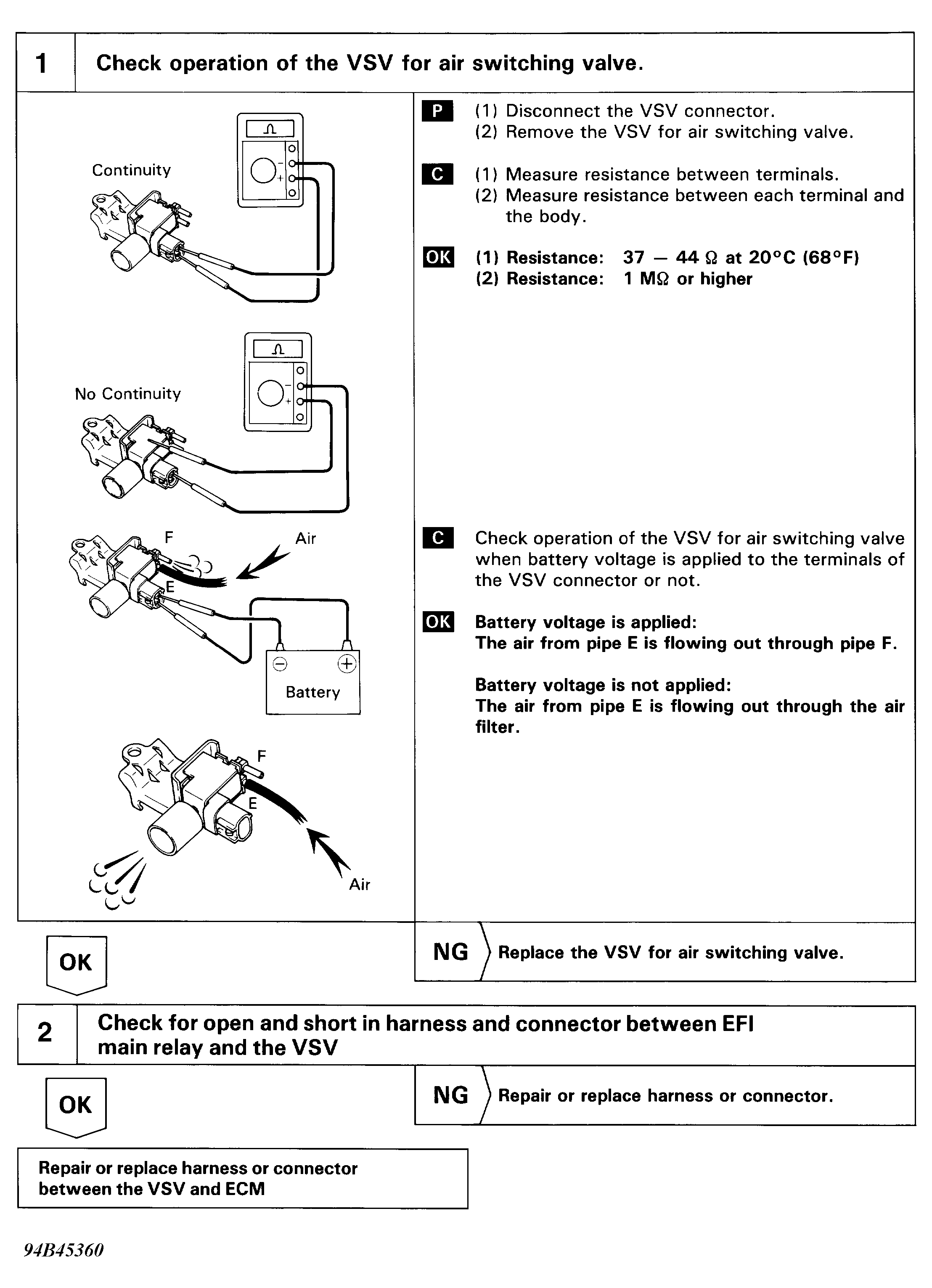

Fig 1: Code 48 Flow Chart (LS400) Secondary Air Injection Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
