Fuse Block: Locations

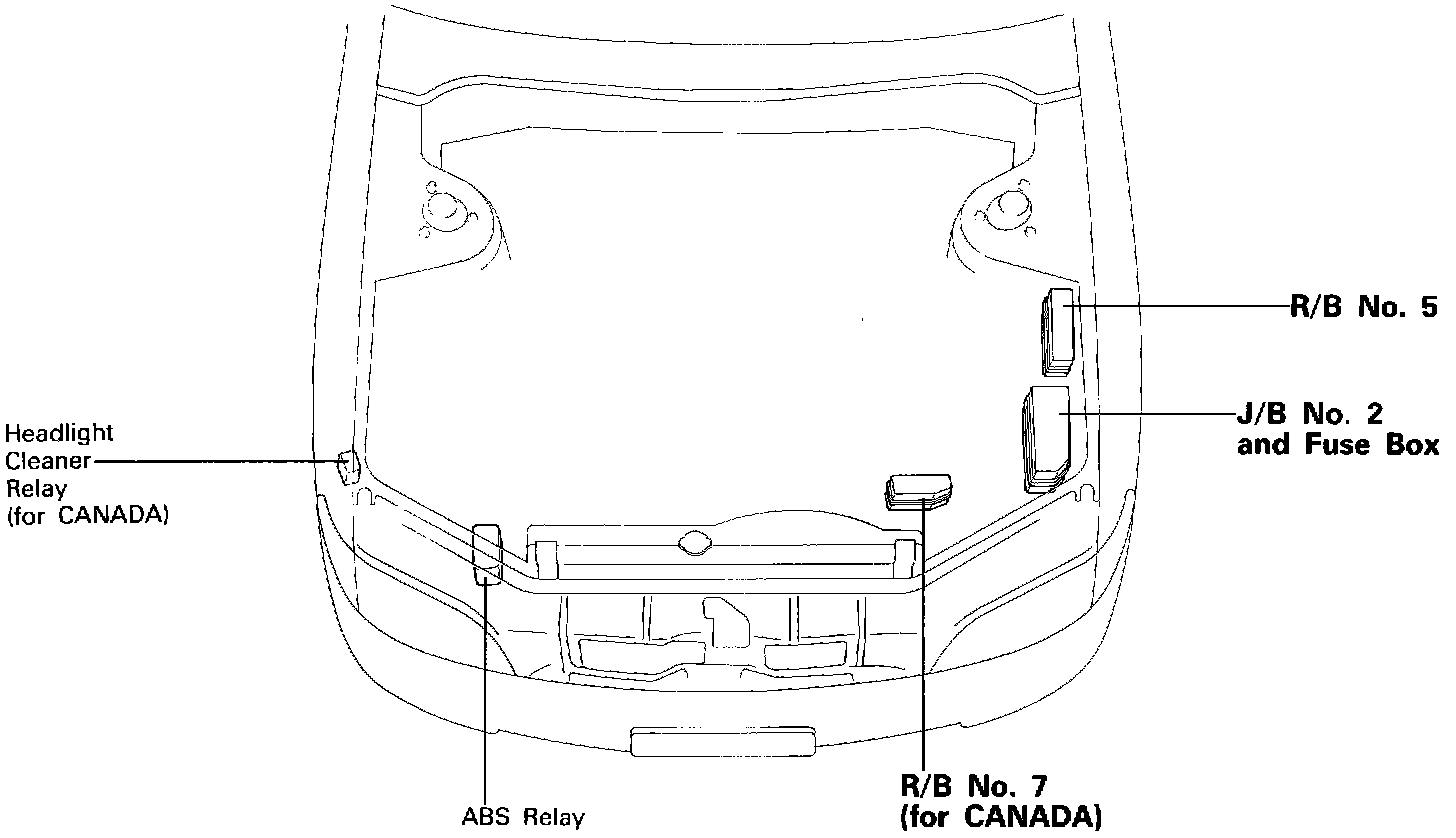

Engine Compartment:

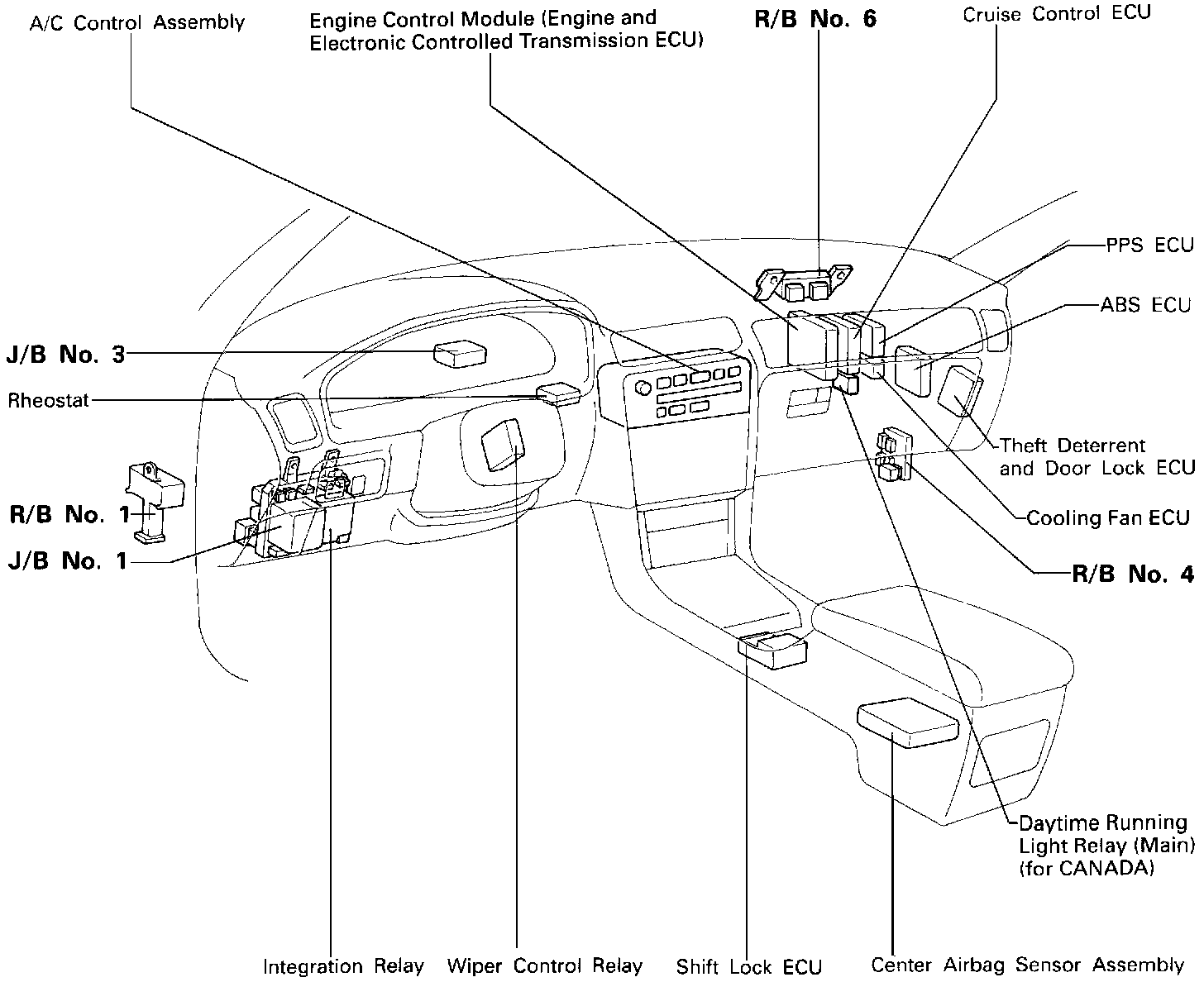

Instrument Panel:

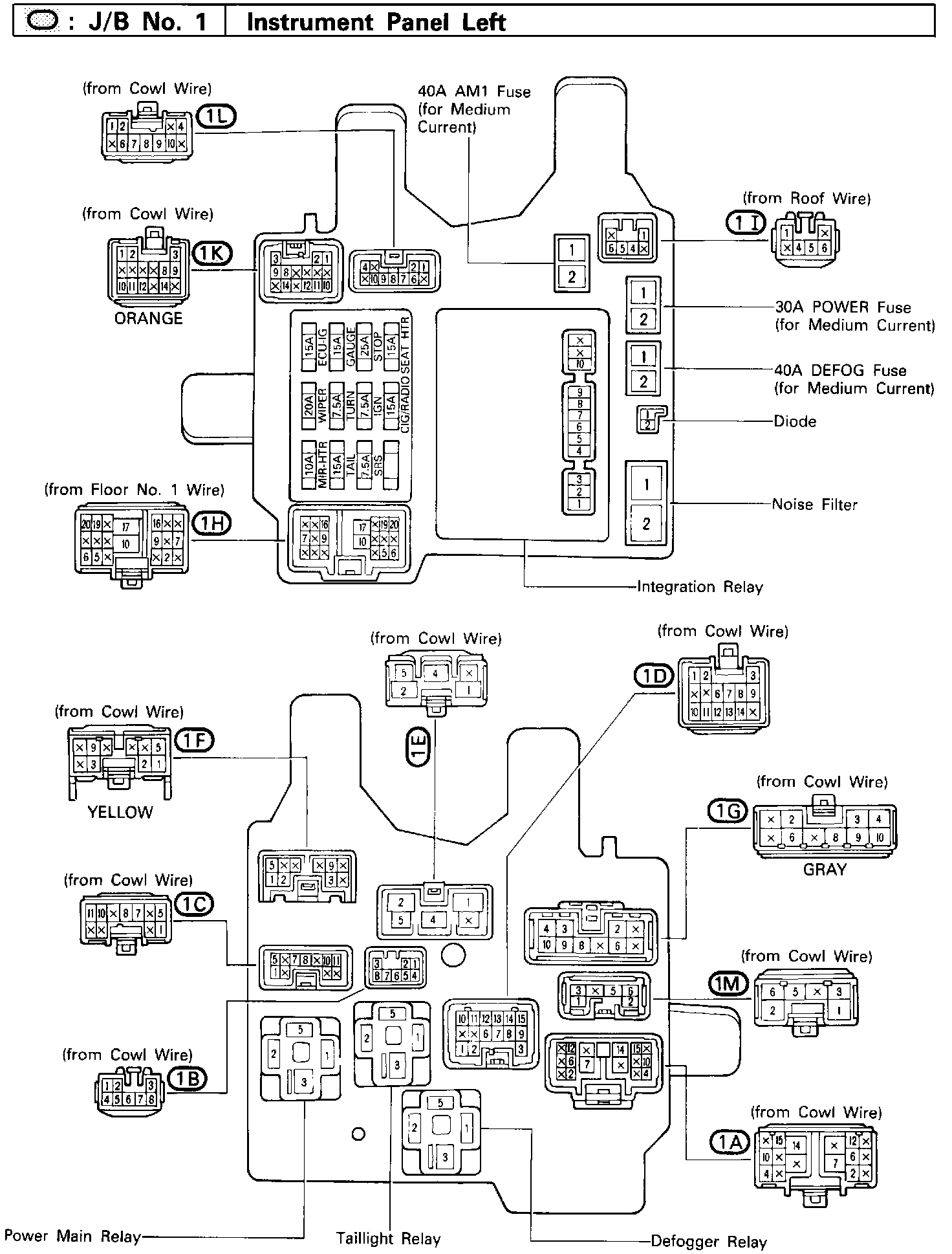

J/B No.1 Instrument Panel Left:

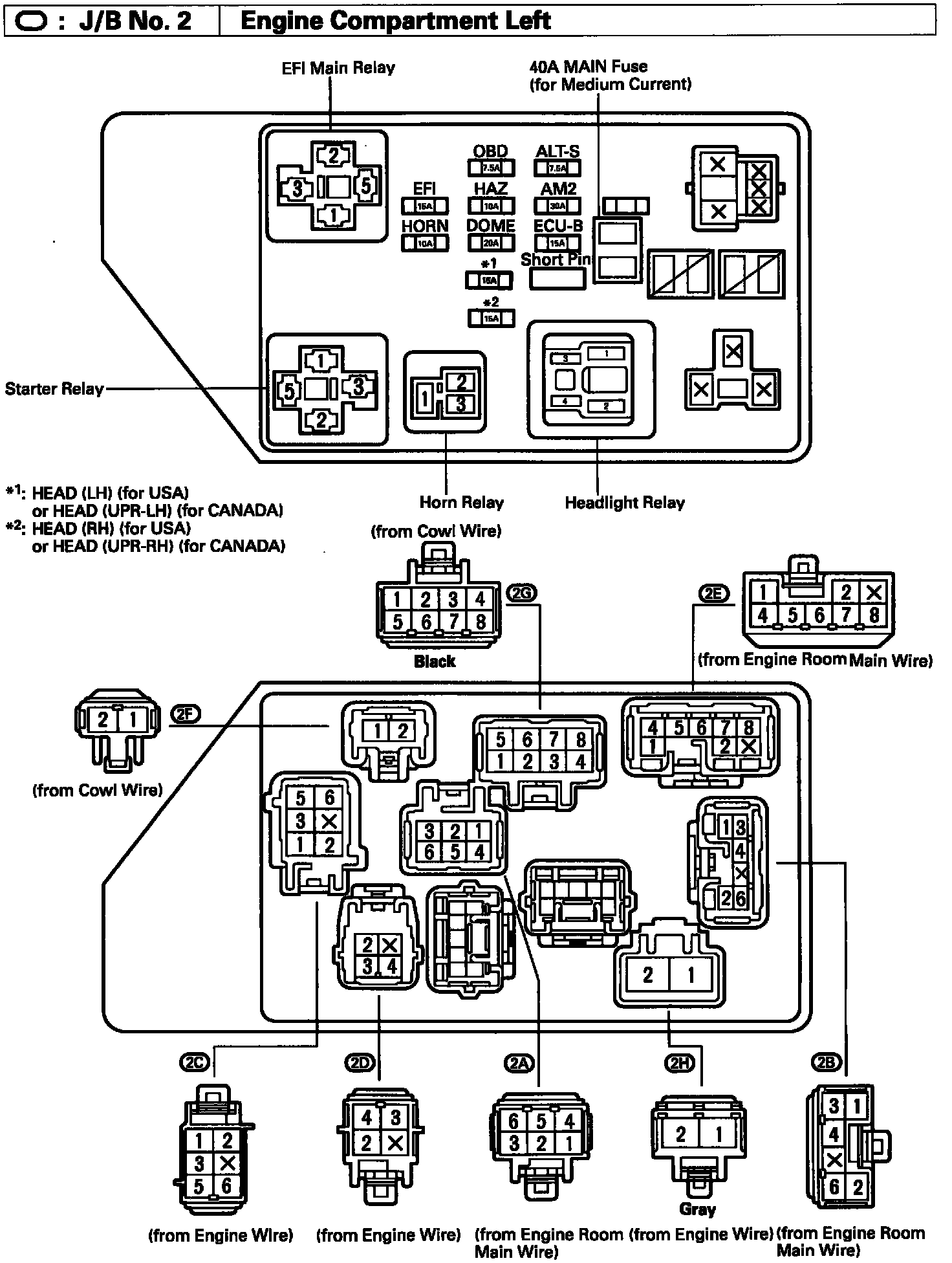

J/B No.2 Engine Compartment Left:

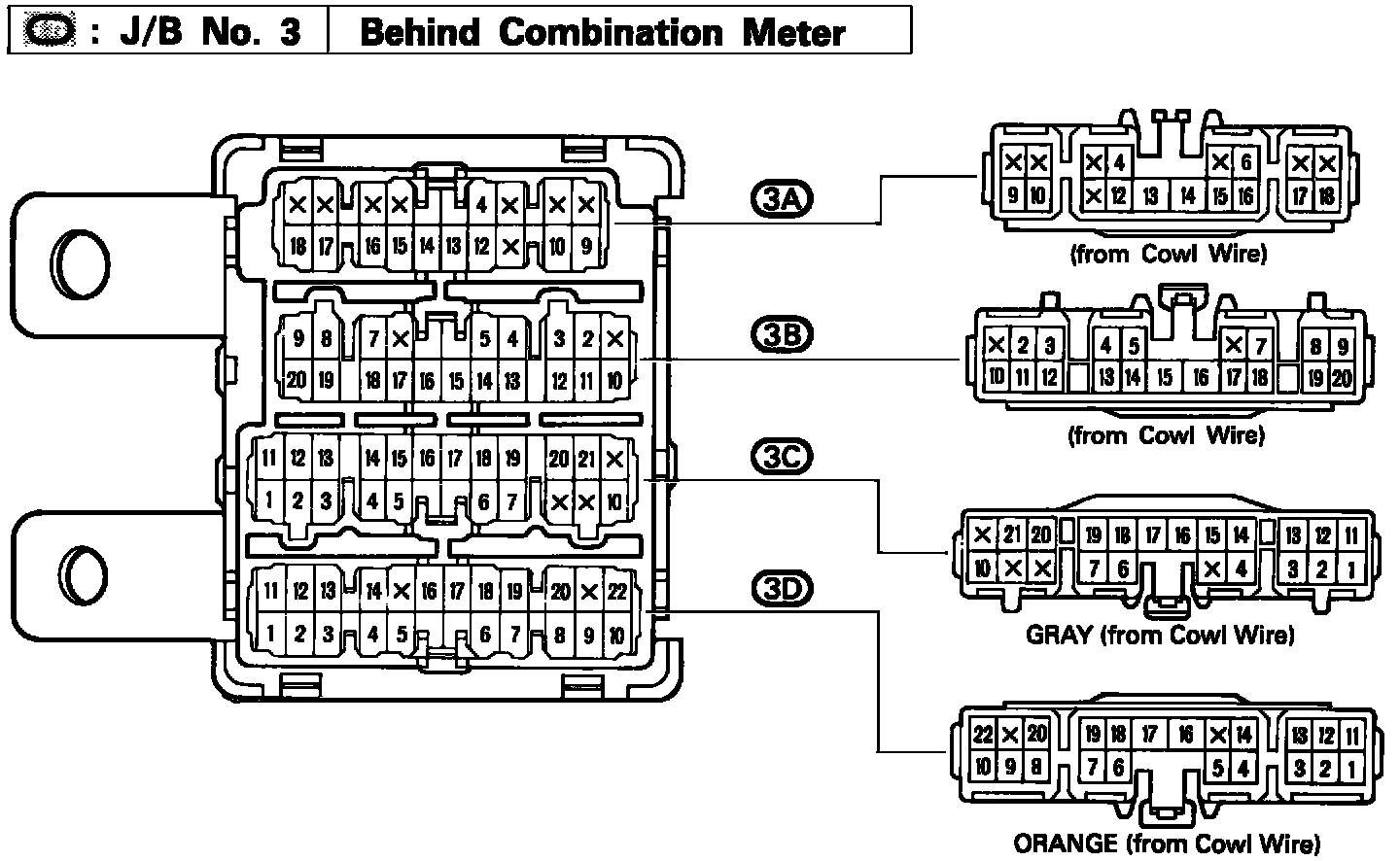

J/B No.3 Behind Combination Meter:
