Voltage Signal: Testing and Inspection

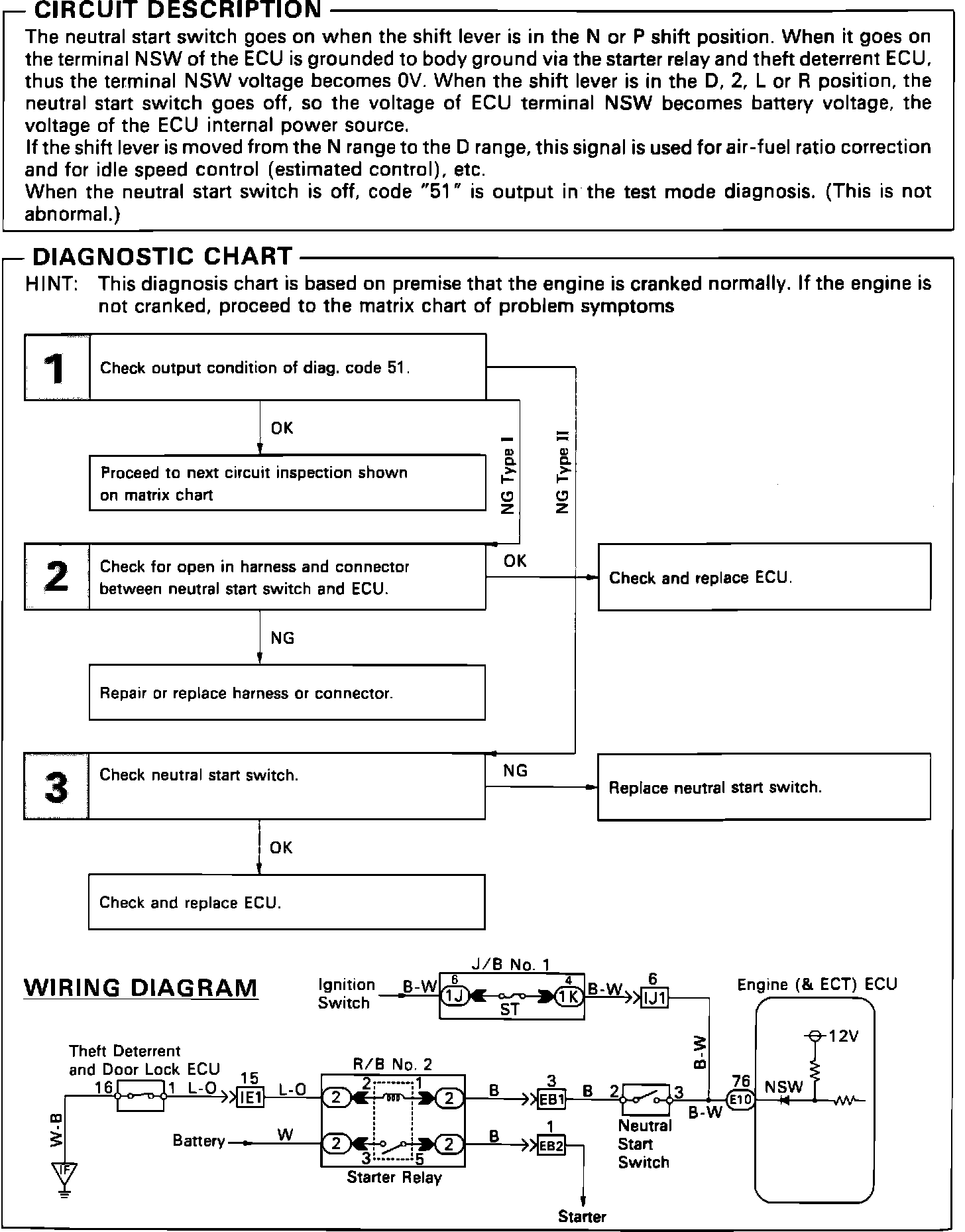

Fig. 23 Neutral Start Switch Signal Diagnosis (Part 1 Of 2):

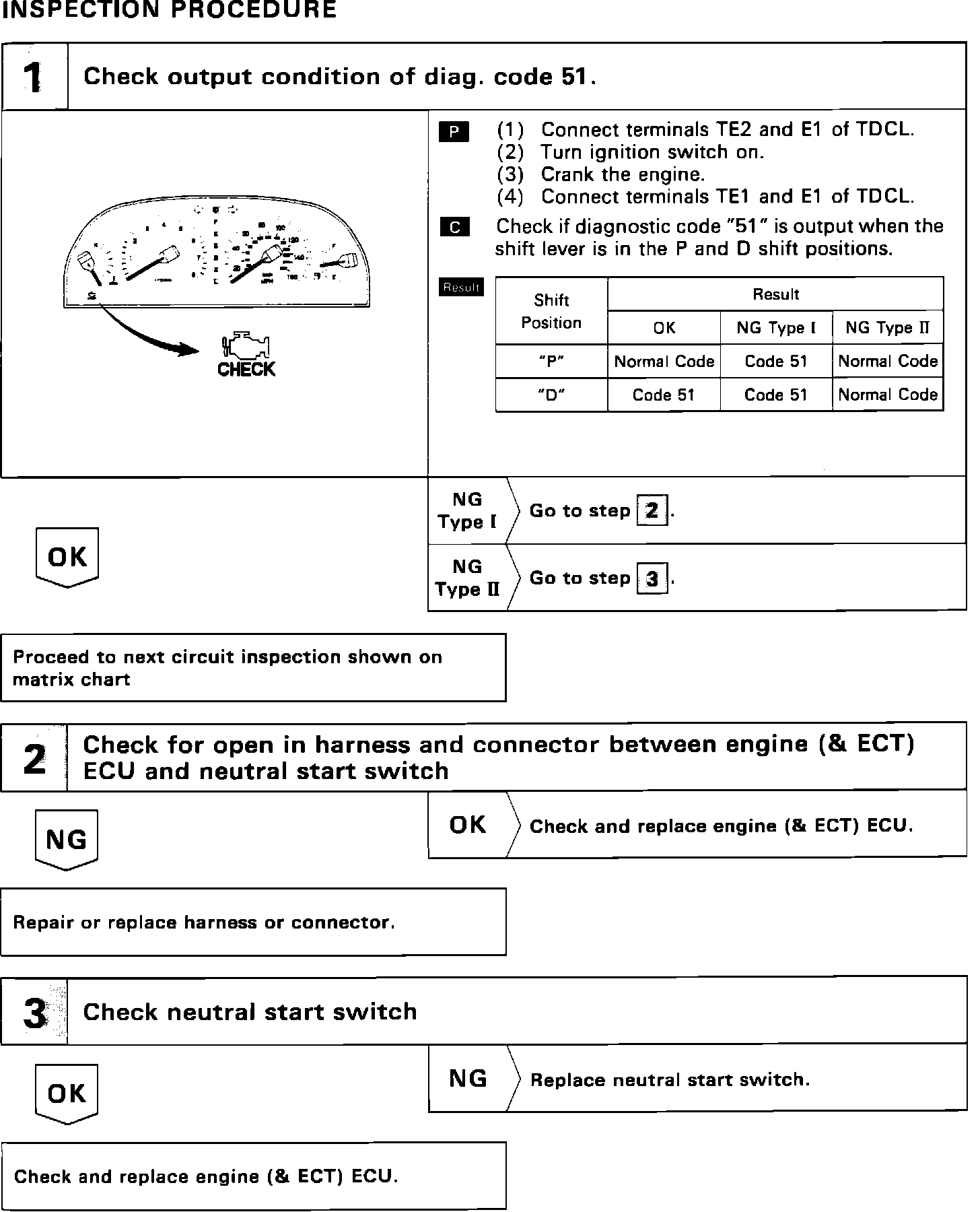

Fig. 23 Neutral Start Switch Signal Diagnosis (Part 2 Of 2):
