ECM Power Source Circuit

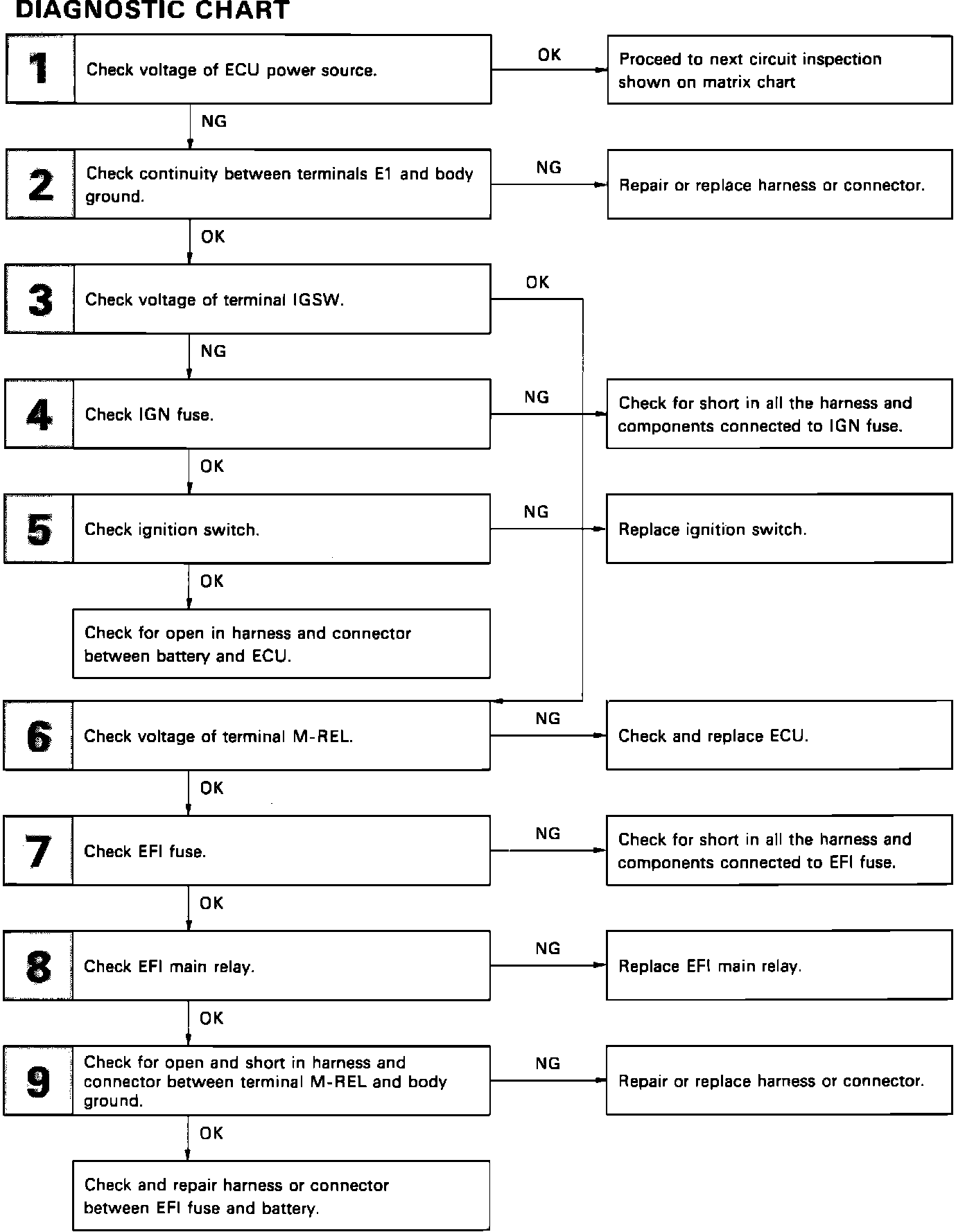

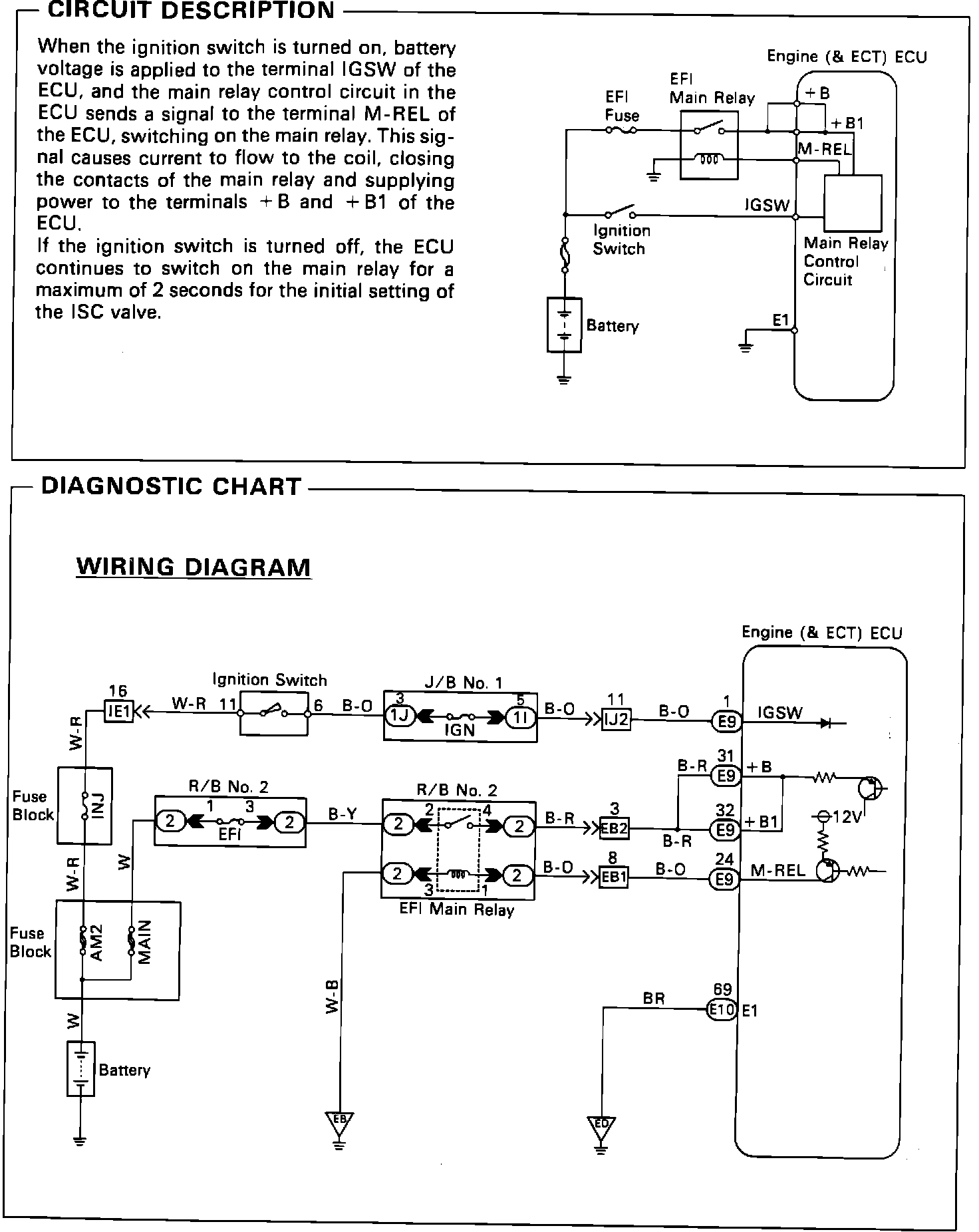

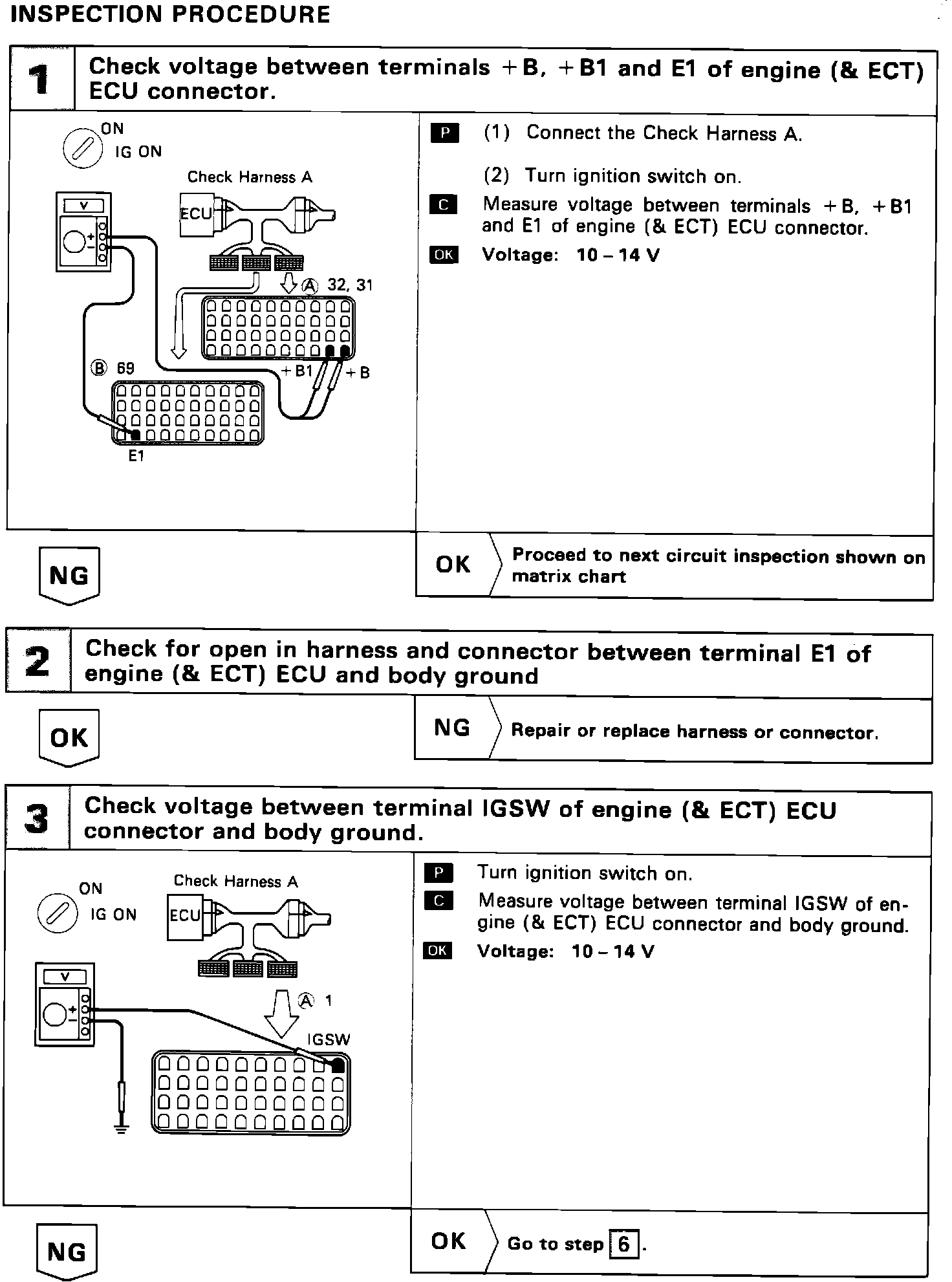

Fig. 24 ECU Power Source Circuit Diagnosis (Part 1 Of 6):

Fig. 24 ECU Power Source Circuit Diagnosis (Part 2 Of 6):

Fig. 24 ECU Power Source Circuit Diagnosis (Part 3 Of 6):

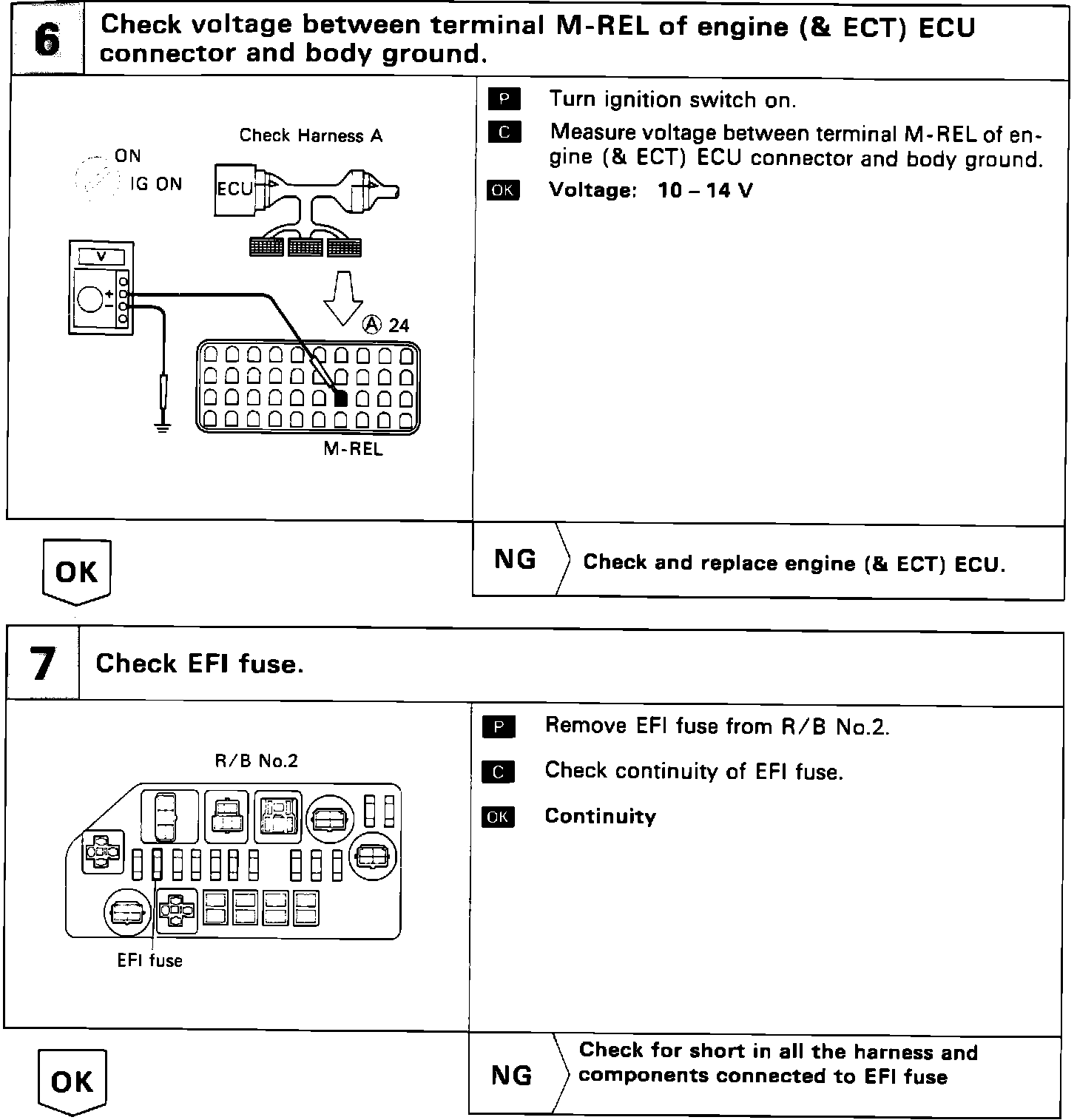

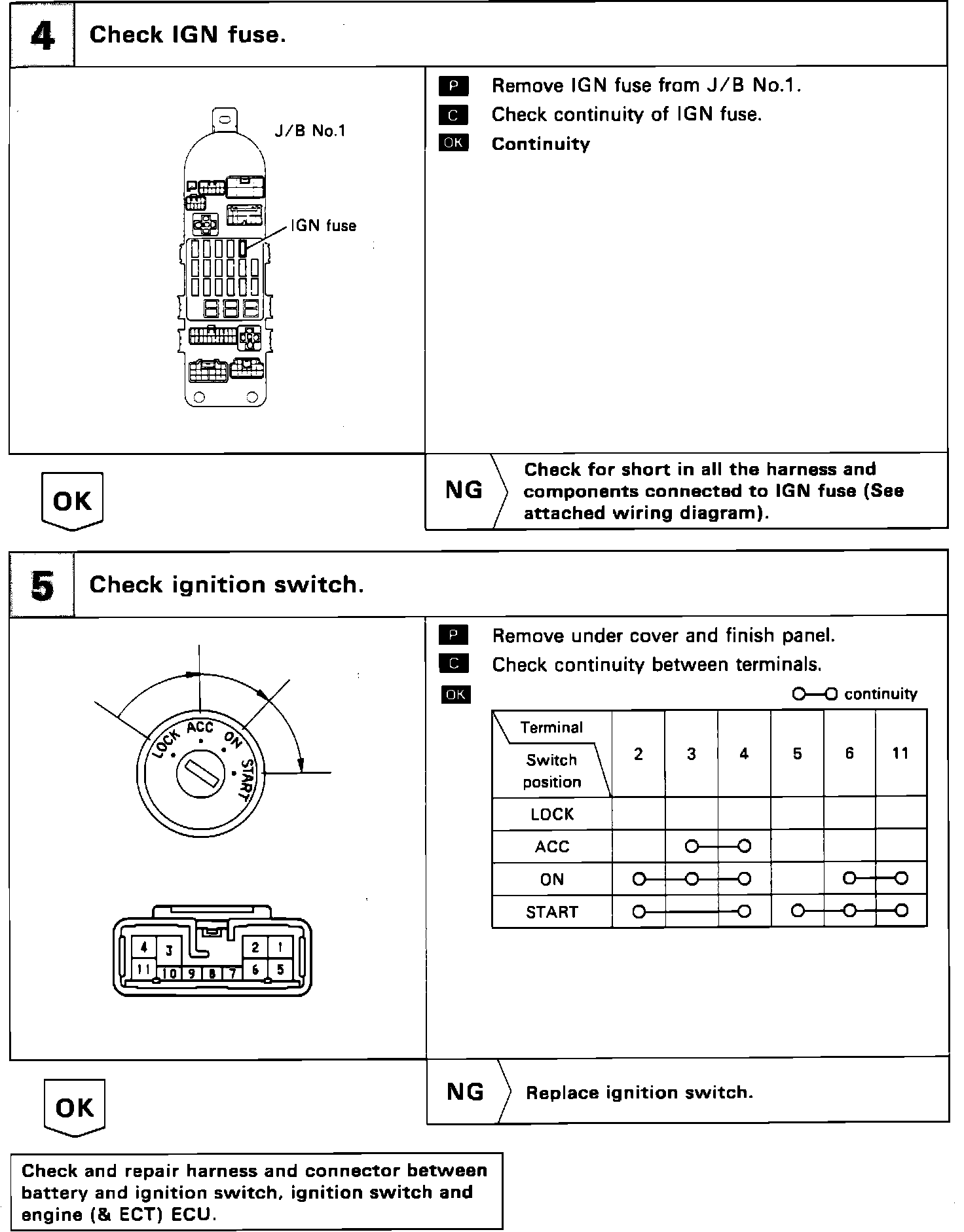

Fig. 24 ECU Power Source Circuit Diagnosis (Part 4 Of 6):

Fig. 24 ECU Power Source Circuit Diagnosis (Part 5 Of 6):

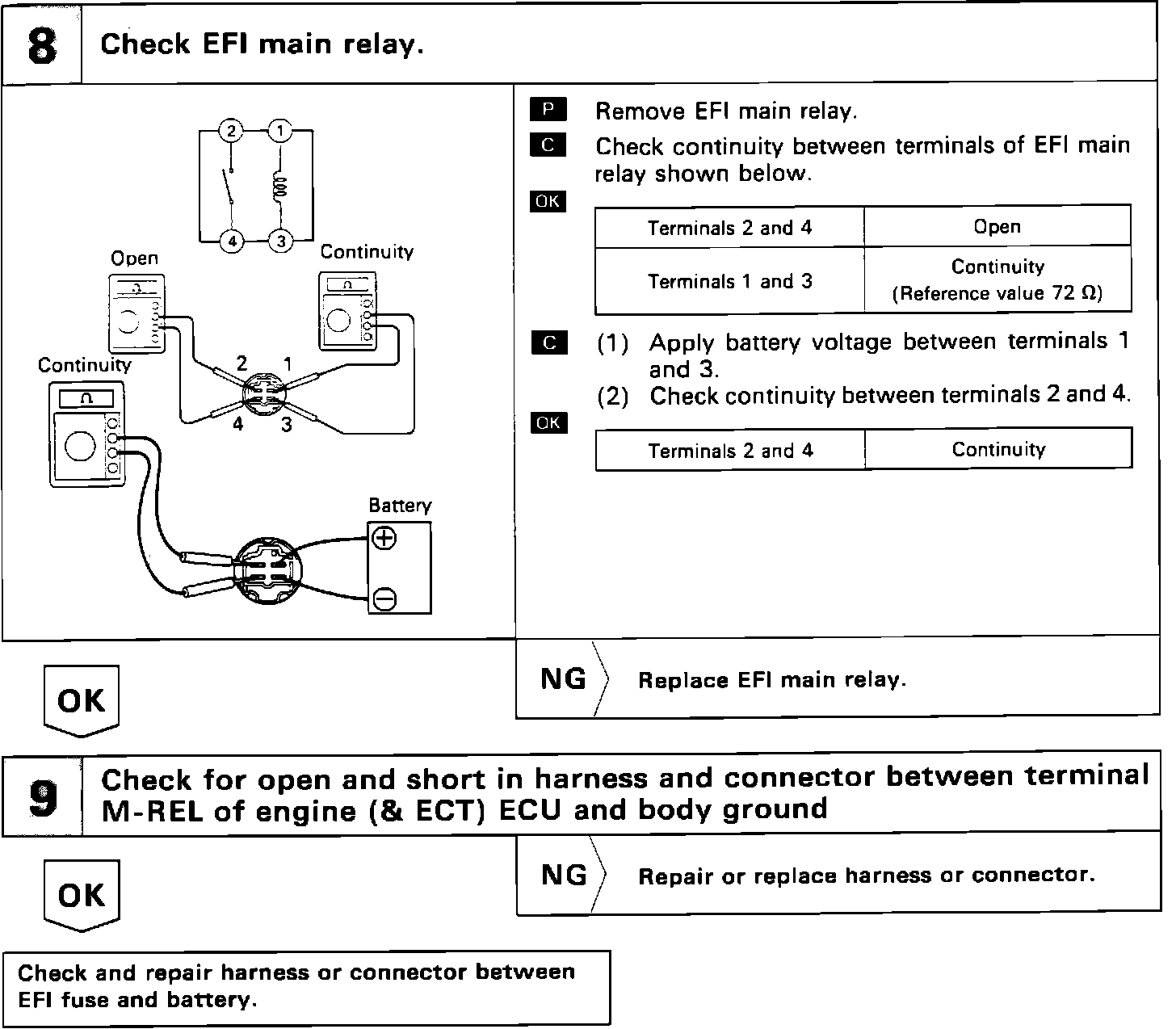

Fig. 24 ECU Power Source Circuit Diagnosis (Part 6 Of 6):
