Lexus
>>
1993
>>
LS 400
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Traction Control System
>>
Diagnostic Charts
>>
DTC 49 Engine Communication Circuit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC 49 Engine Communication Circuit
Fig 1: DTC 49 Engine Communication Circuit (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

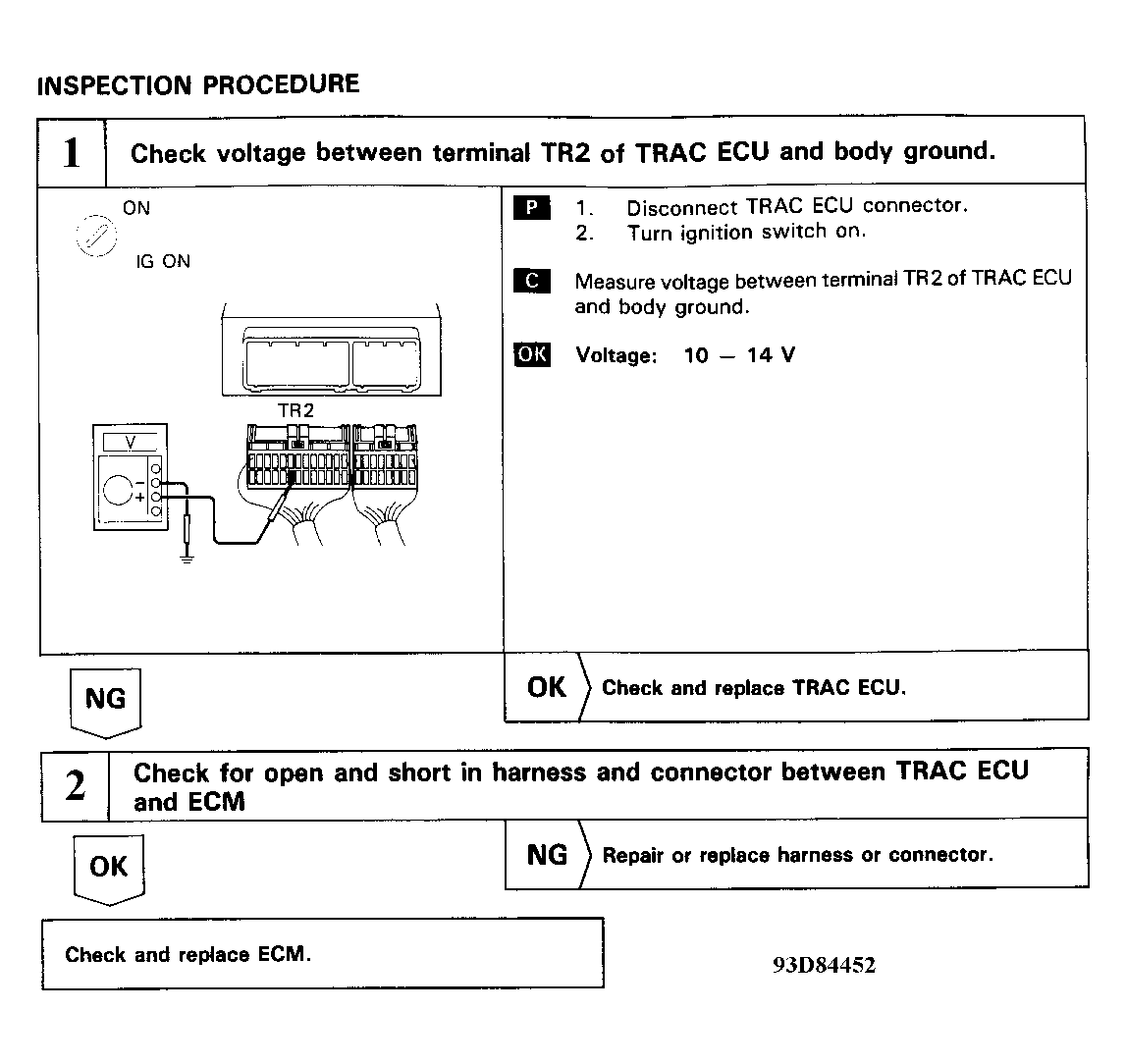

Fig 2: DTC 49 Engine Communication Circuit (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
