DTC 45 & 46 Main Throttle Position Sensor Circuit

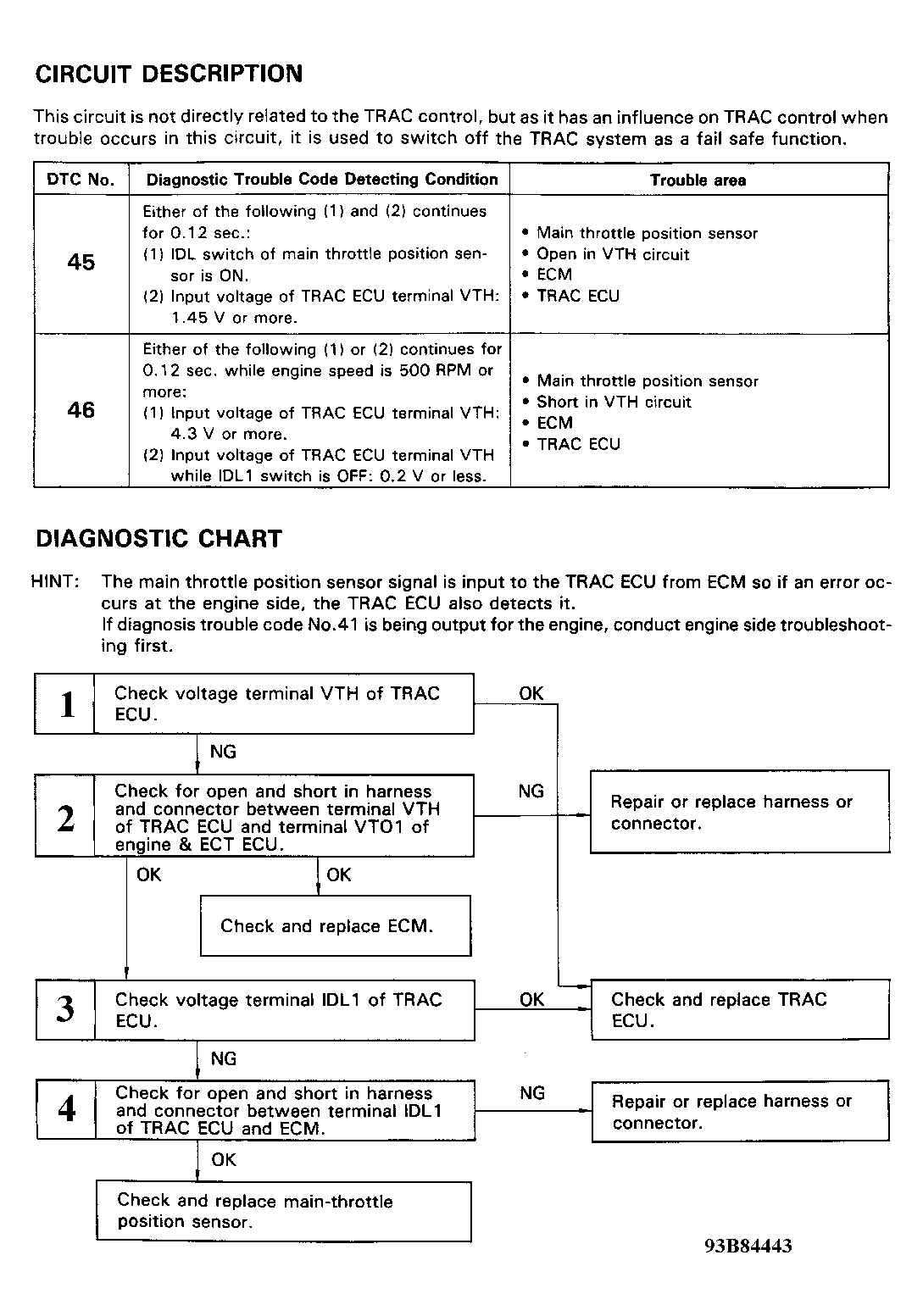

Fig 1: DTC 45 & 46 Main Throttle Position Sensor Circuit (1 Of 4)
G93B84443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

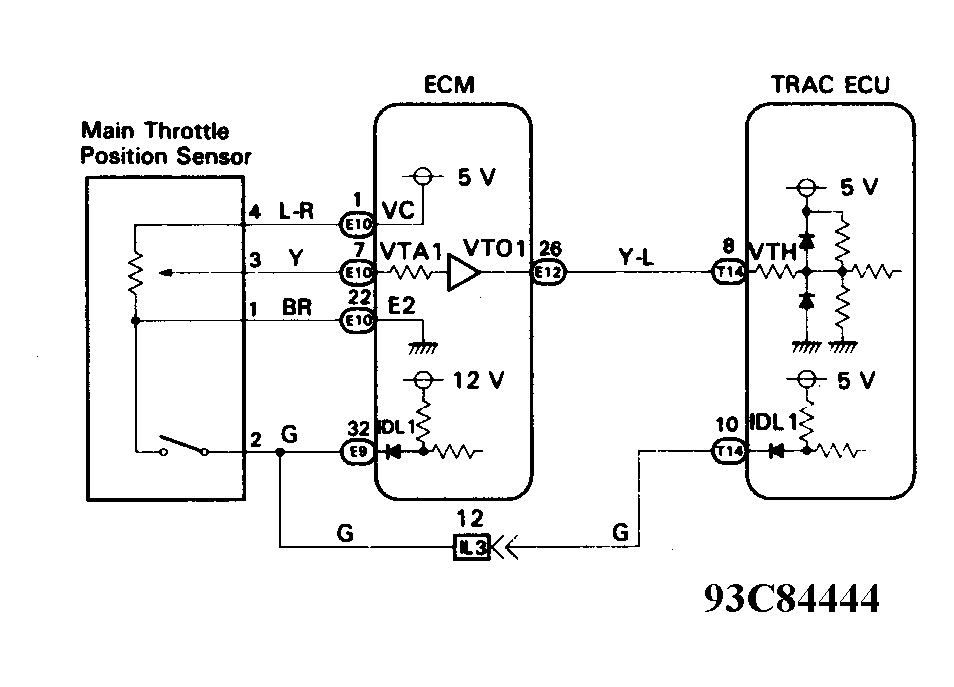

Fig 2: DTC 45 & 46 Main Throttle Position Sensor Circuit (2 Of 4)
G93C84444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

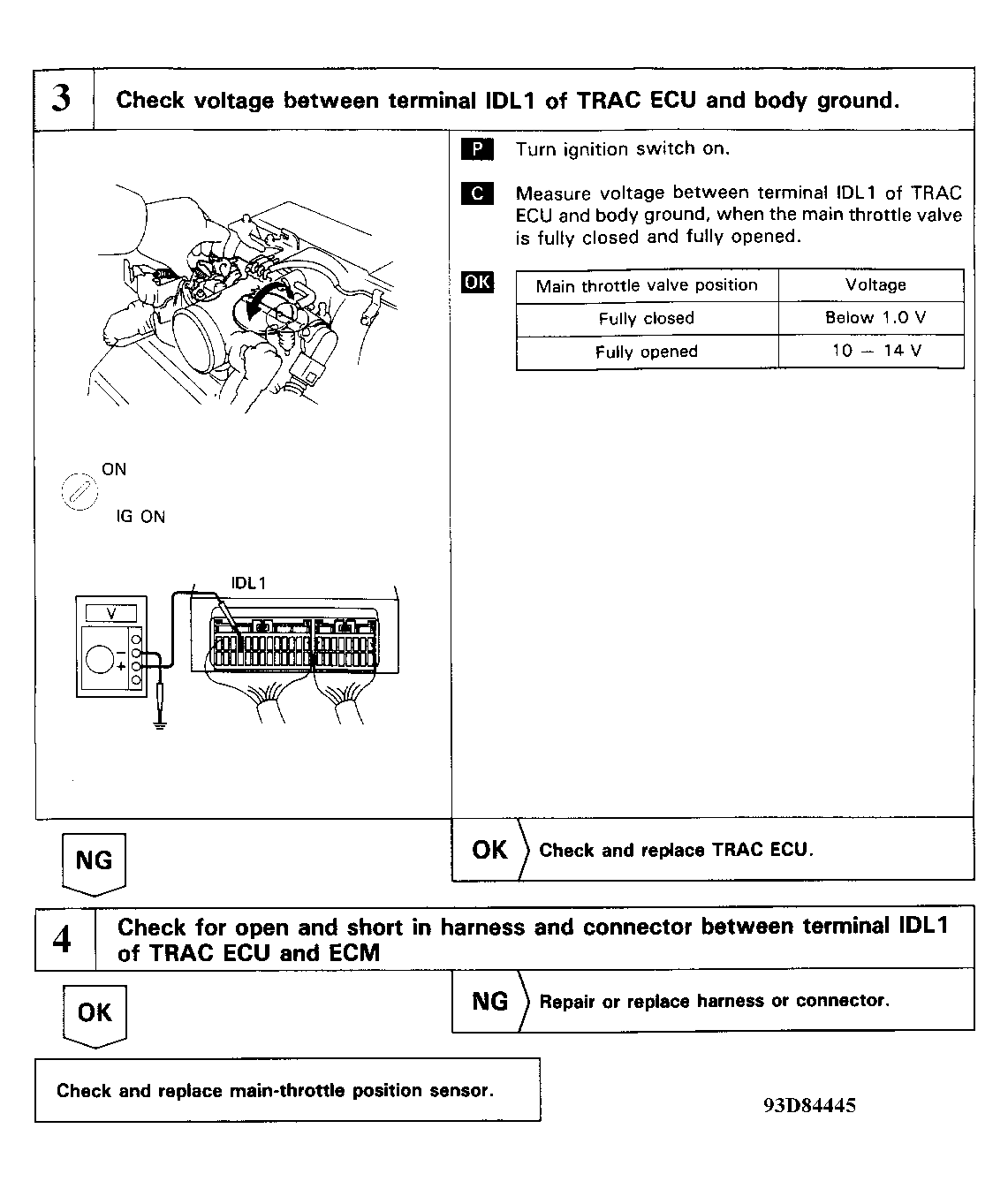

Fig 3: DTC 45 & 46 Main Throttle Position Sensor Circuit (3 Of 4)
G93D84445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

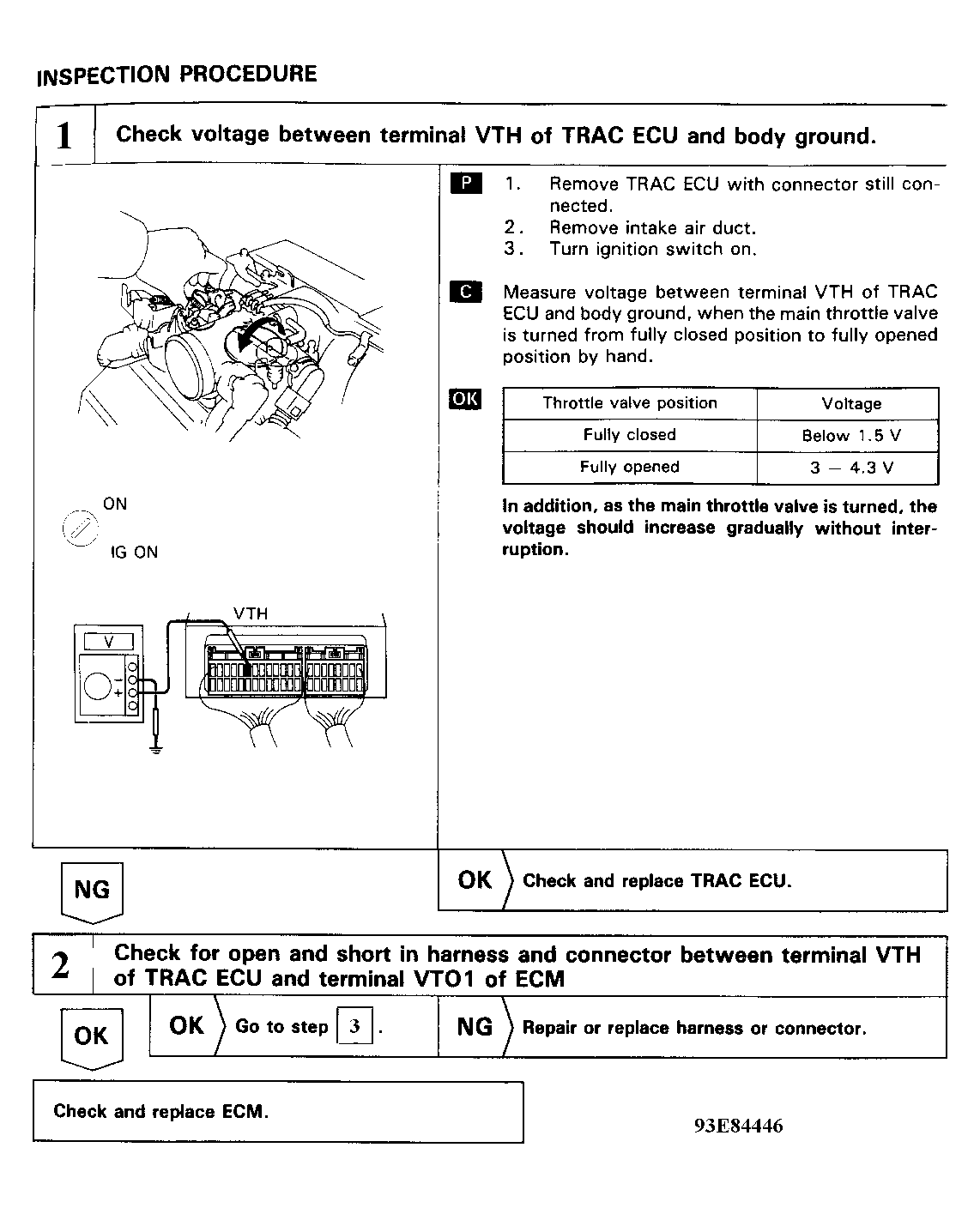

Fig 4: DTC 45 & 46 Main Throttle Position Sensor Circuit (4 Of 4)
G93E84446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
