Wiring Diagrams
NOTE:
For wiring diagrams on models with traction control, see
TRACTION CONTROL SYSTEM
article in the BRAKES section.

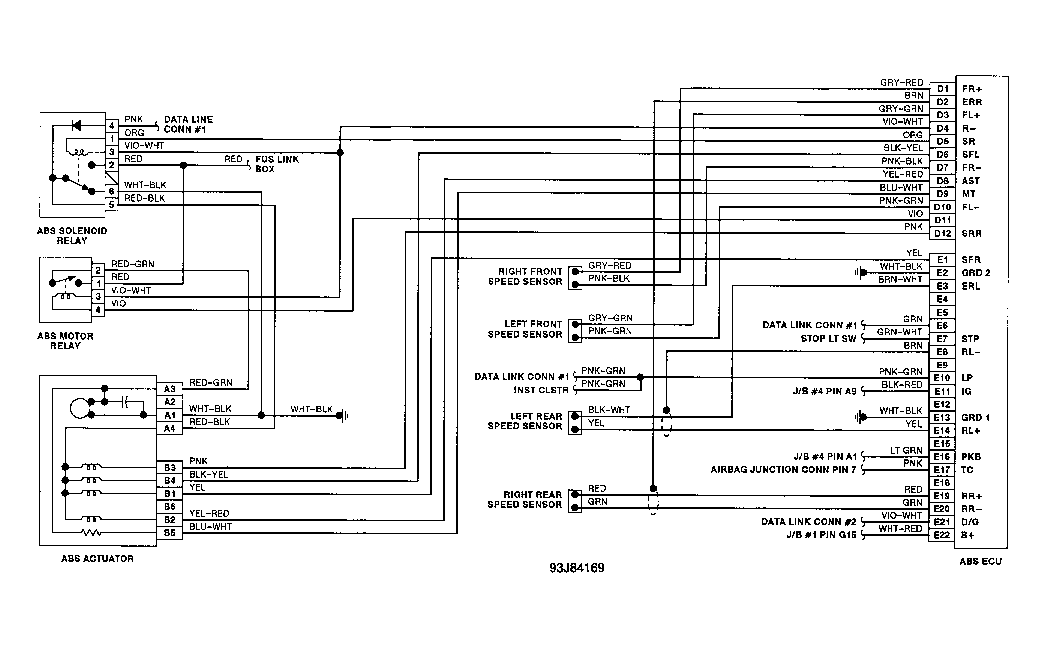

Fig 1: Anti-Lock Brake System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
