DTC 41 - IG Power Source Circuit

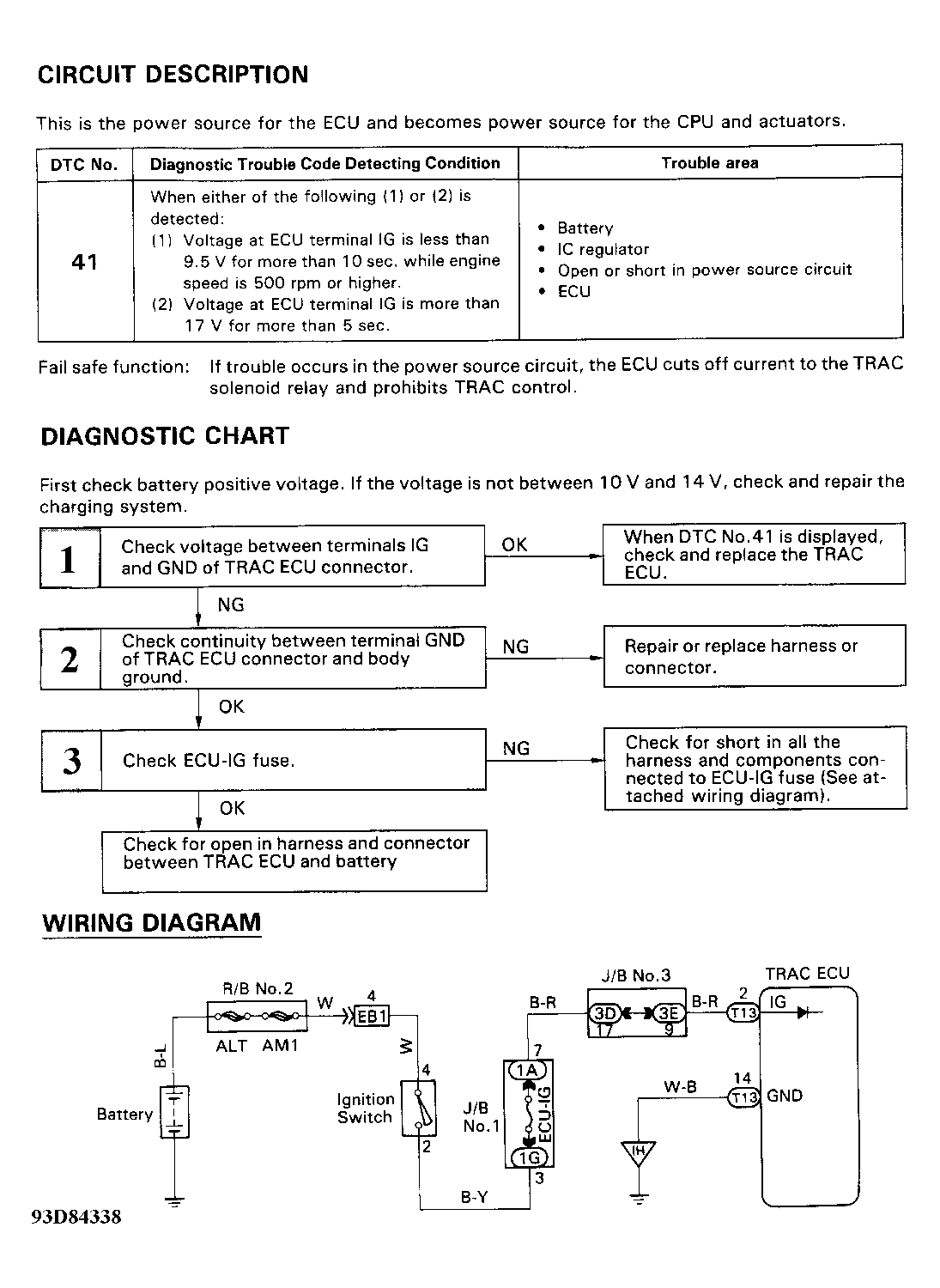

Fig 1: DTC 41 - IG Power Source Circuit (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

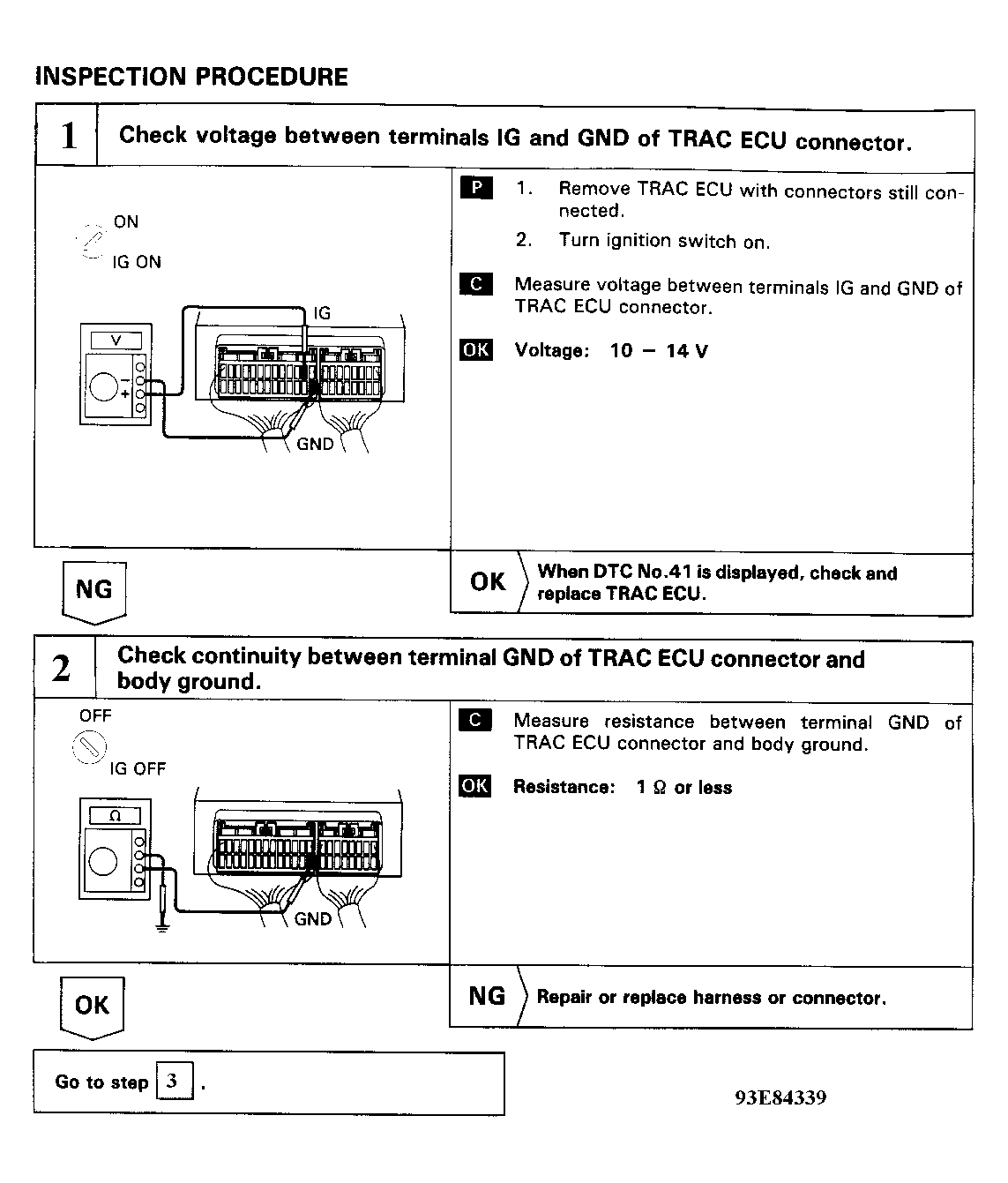

Fig 2: DTC 41 - IG Power Source Circuit (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

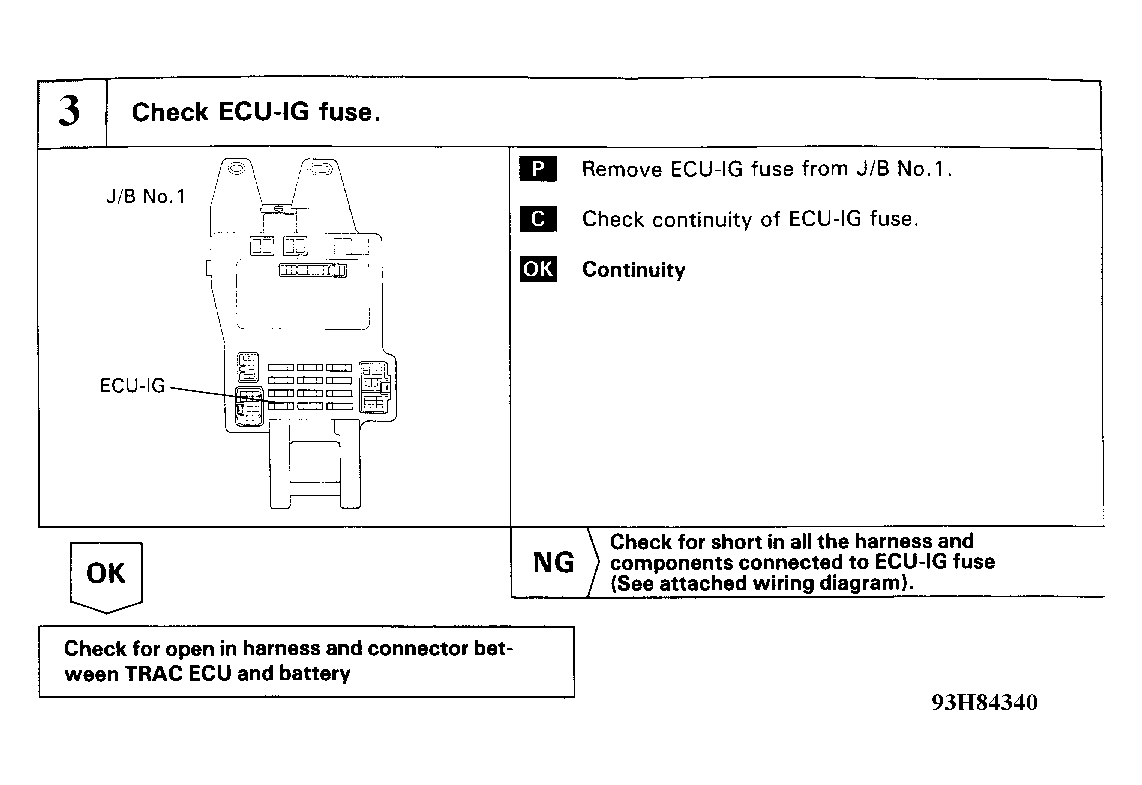

Fig 3: DTC 41 - IG Power Source Circuit (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
