System Specifications

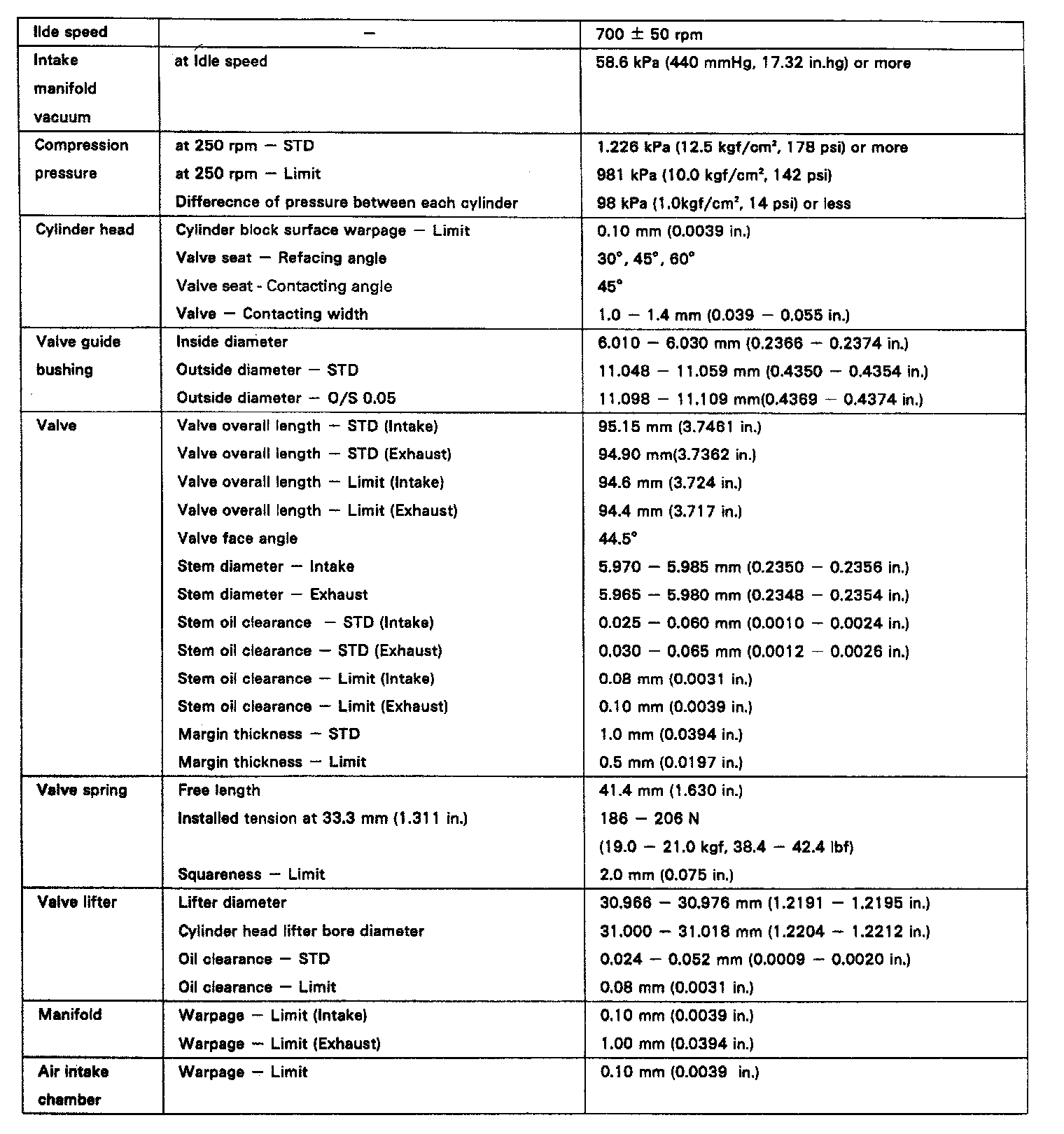

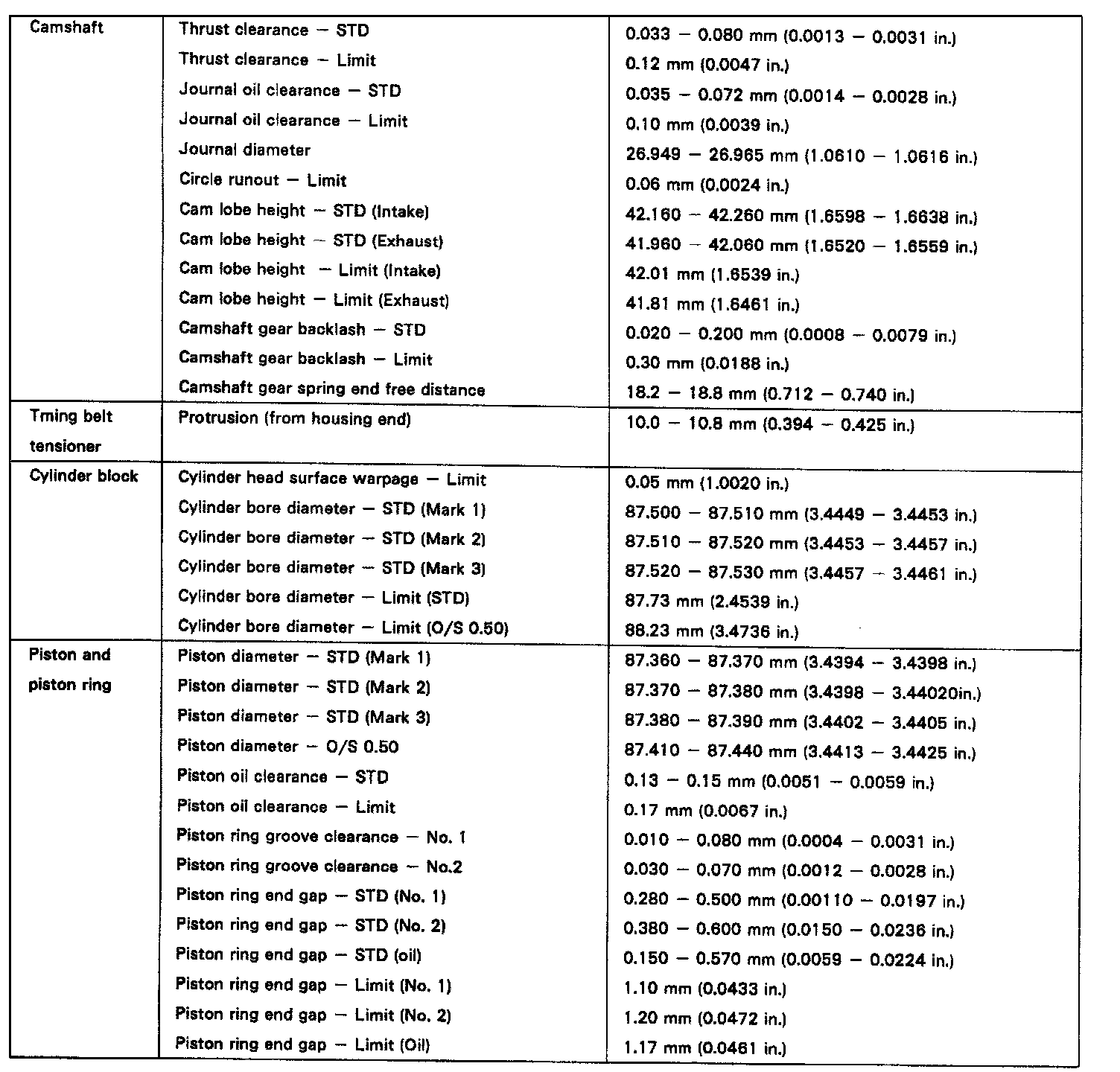

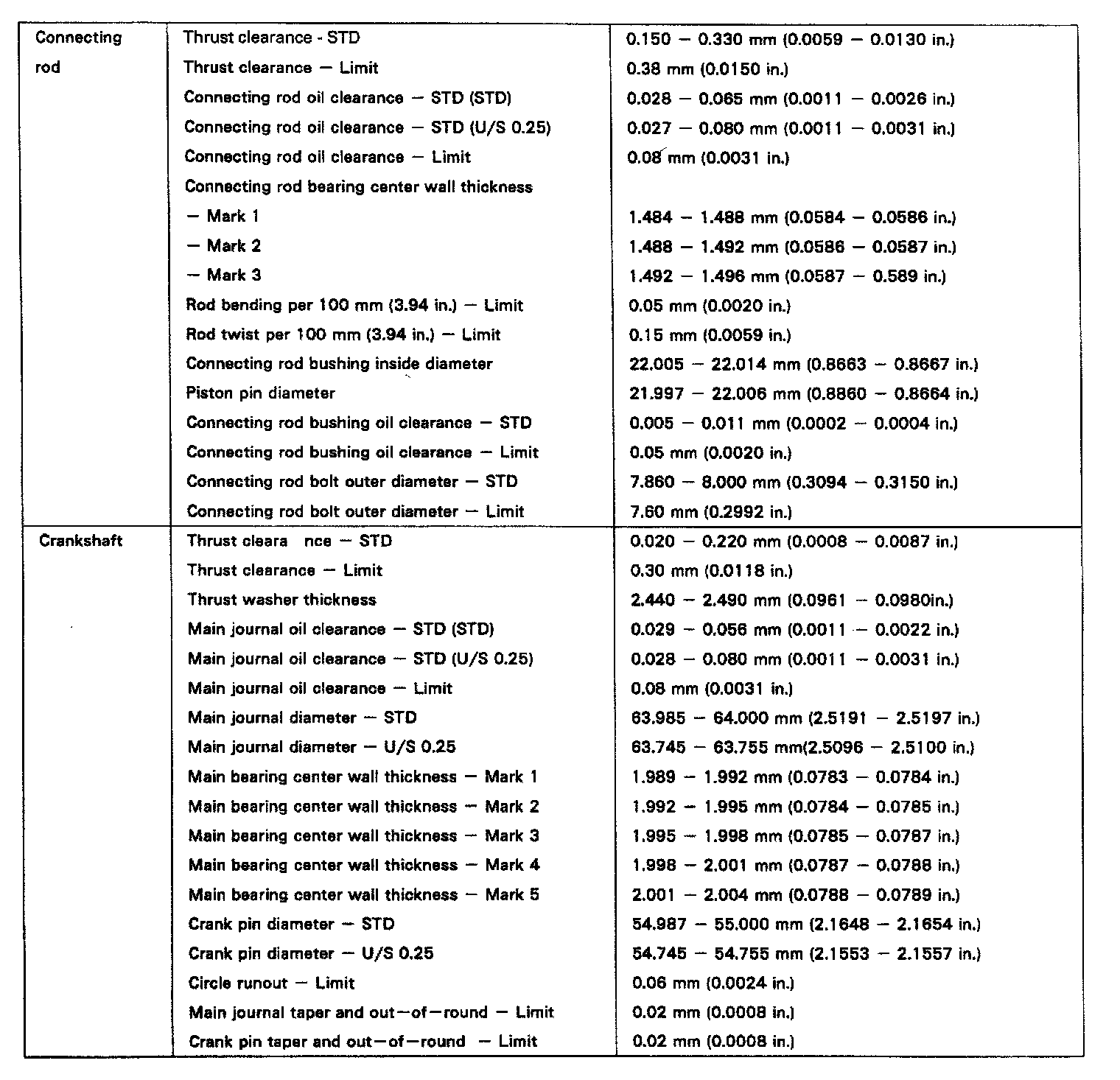

ENGINE SPECIFICATIONS

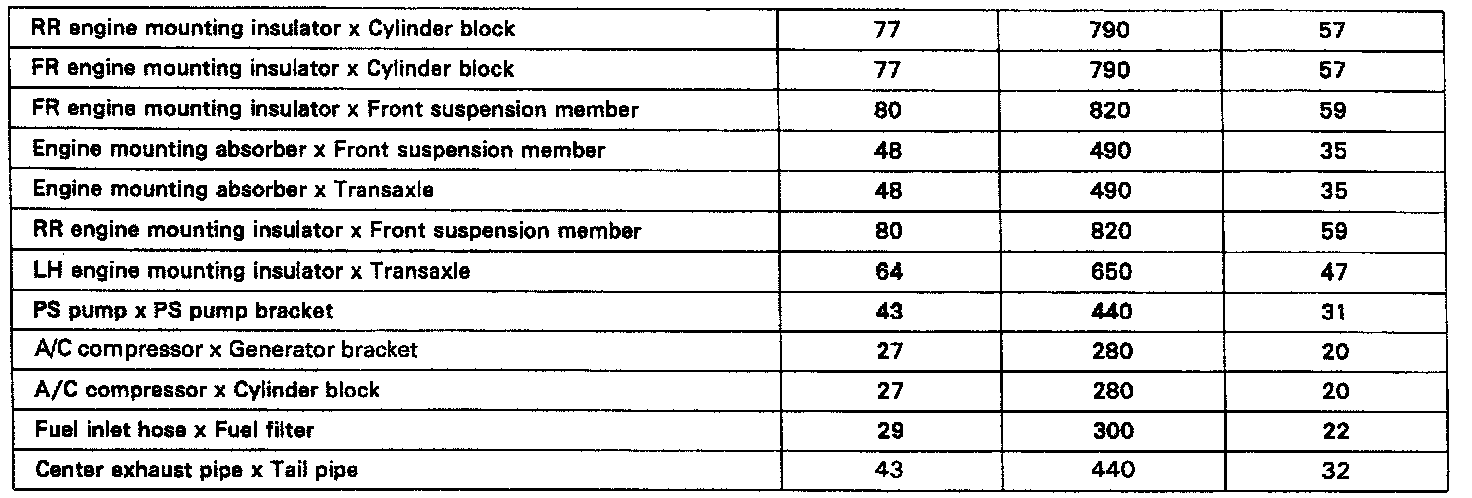

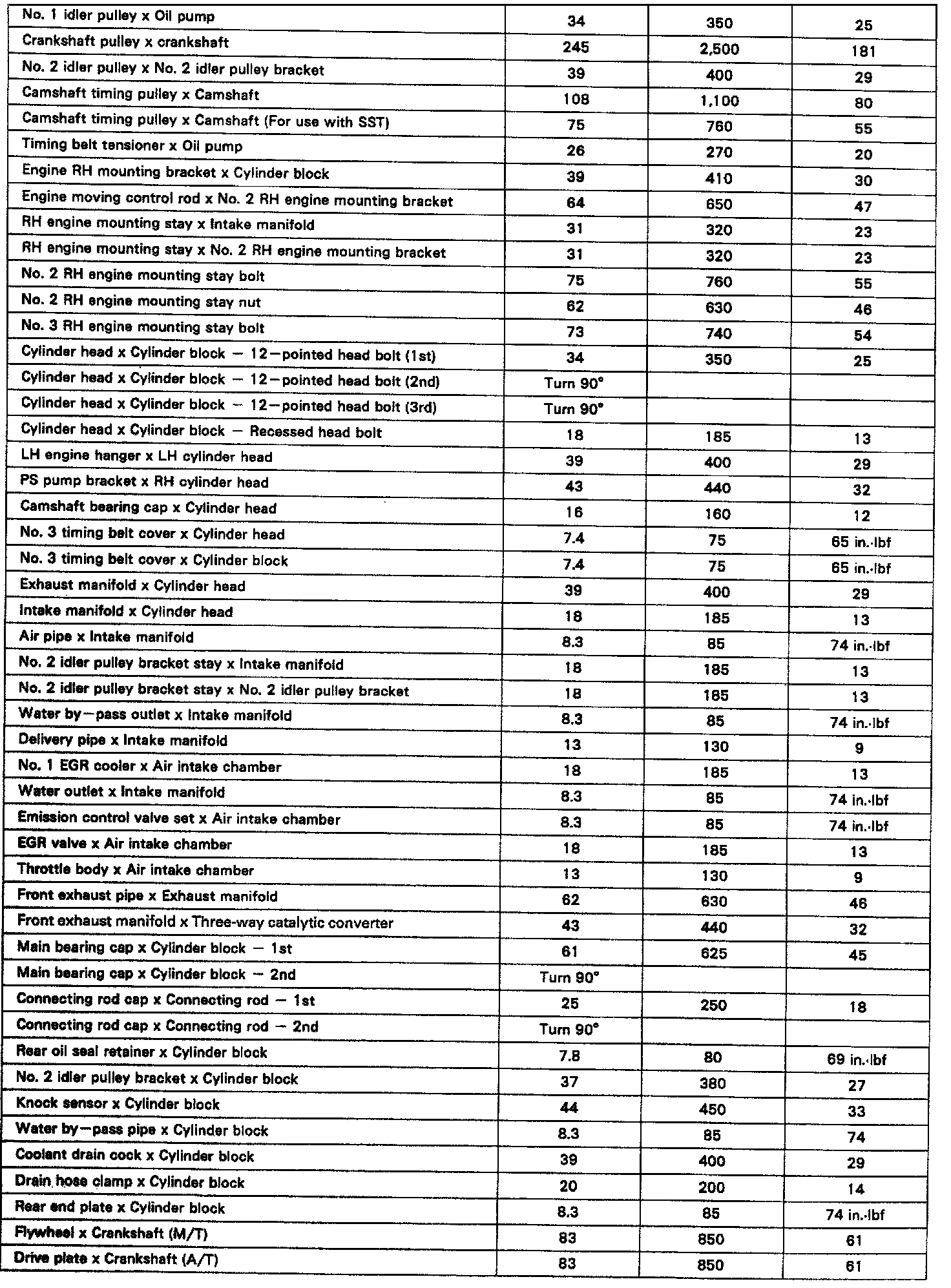

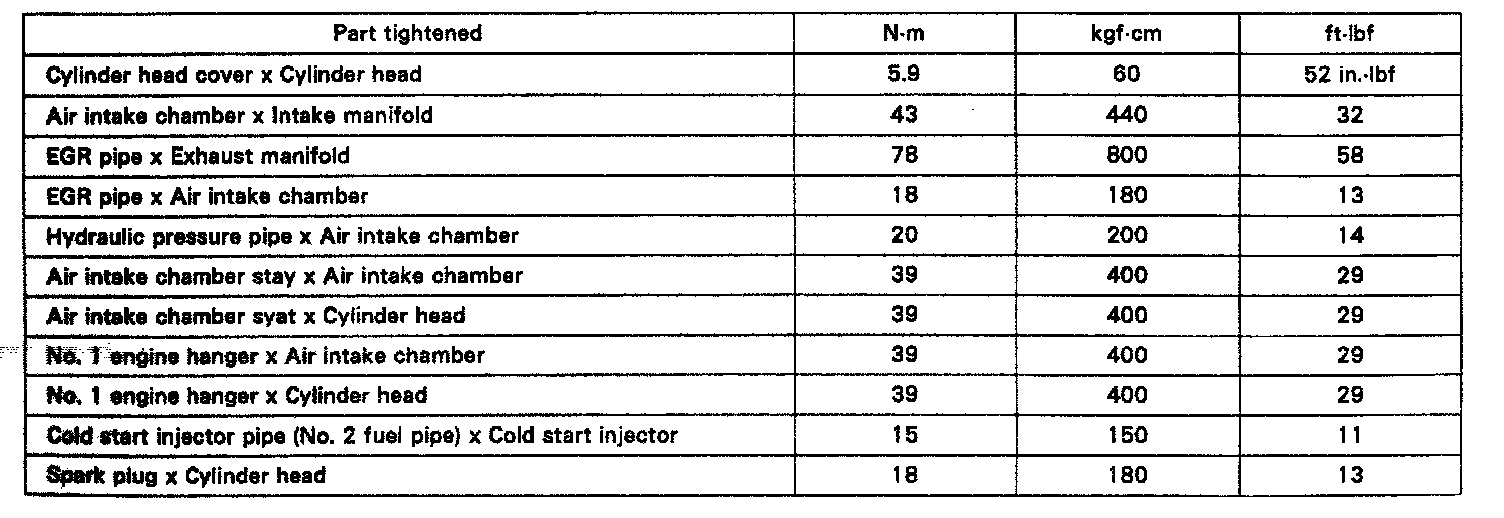

TIGHTENING SPECIFICATIONS

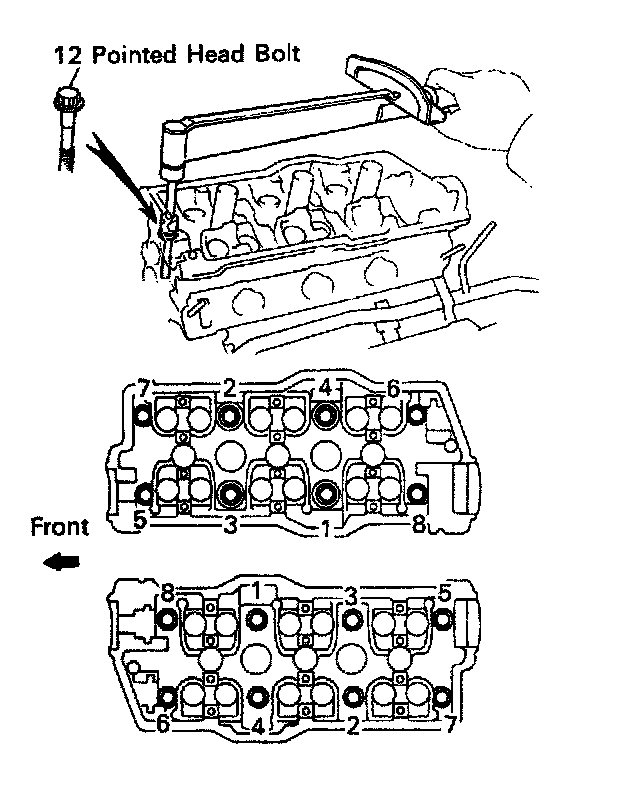

CYLINDER HEAD TIGHTENING SEQUENCE





RH CAM TIGHTENING SEQUENCE









LH CAM TIGHTENING SEQUENCE









FLYWHEEL TIGHTENING SEQUENCE
