Test E: Position Sensor Power Source Circuit (Driver's Seat)

NOTE: This circuit provides power to the slide, front vertical, rear vertical and reclining sensors.

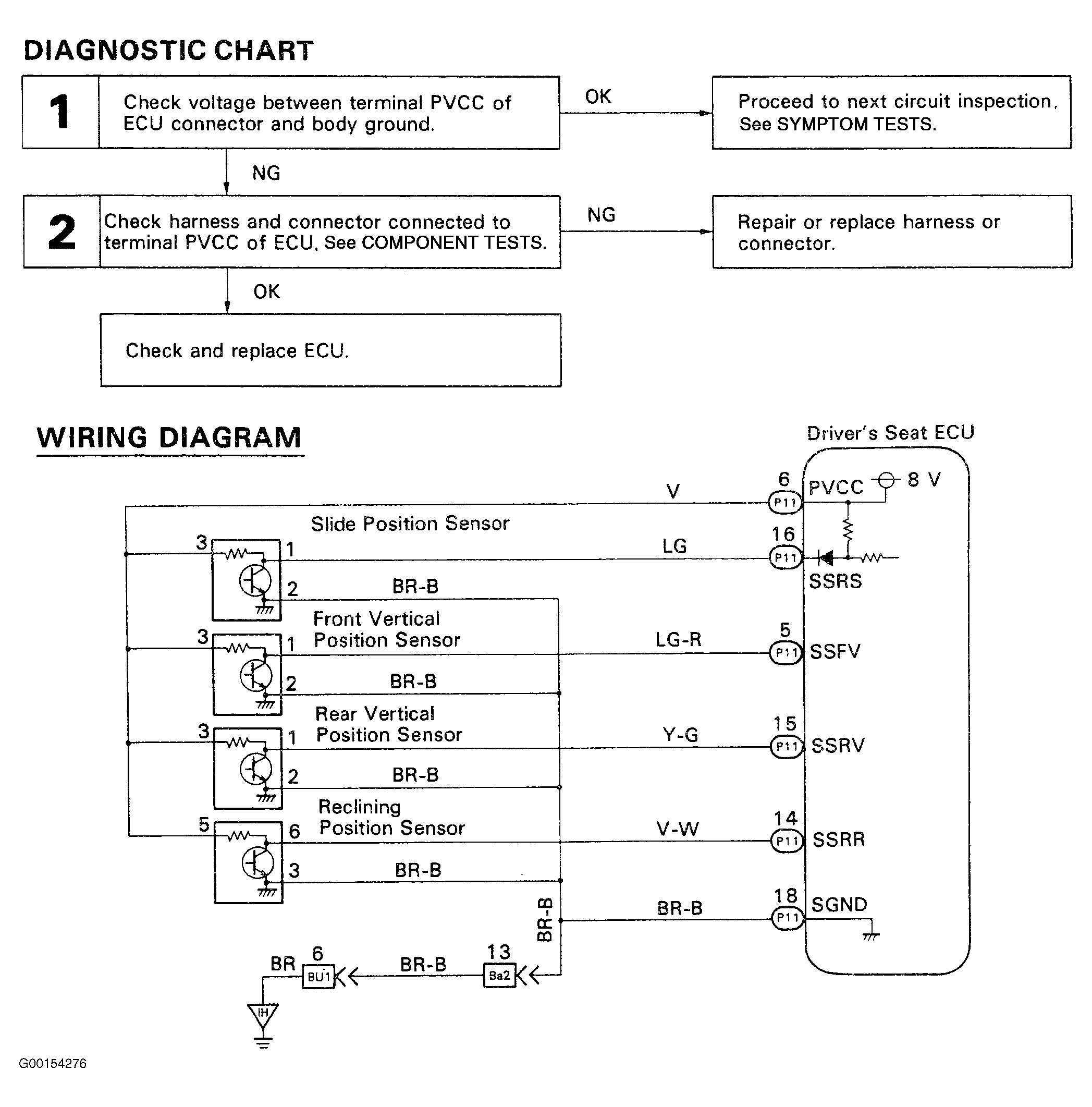

Fig 1: Test E: Position Sensor Power Source Circuit (Driver's Seat - 1 Of 2)
G00154276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

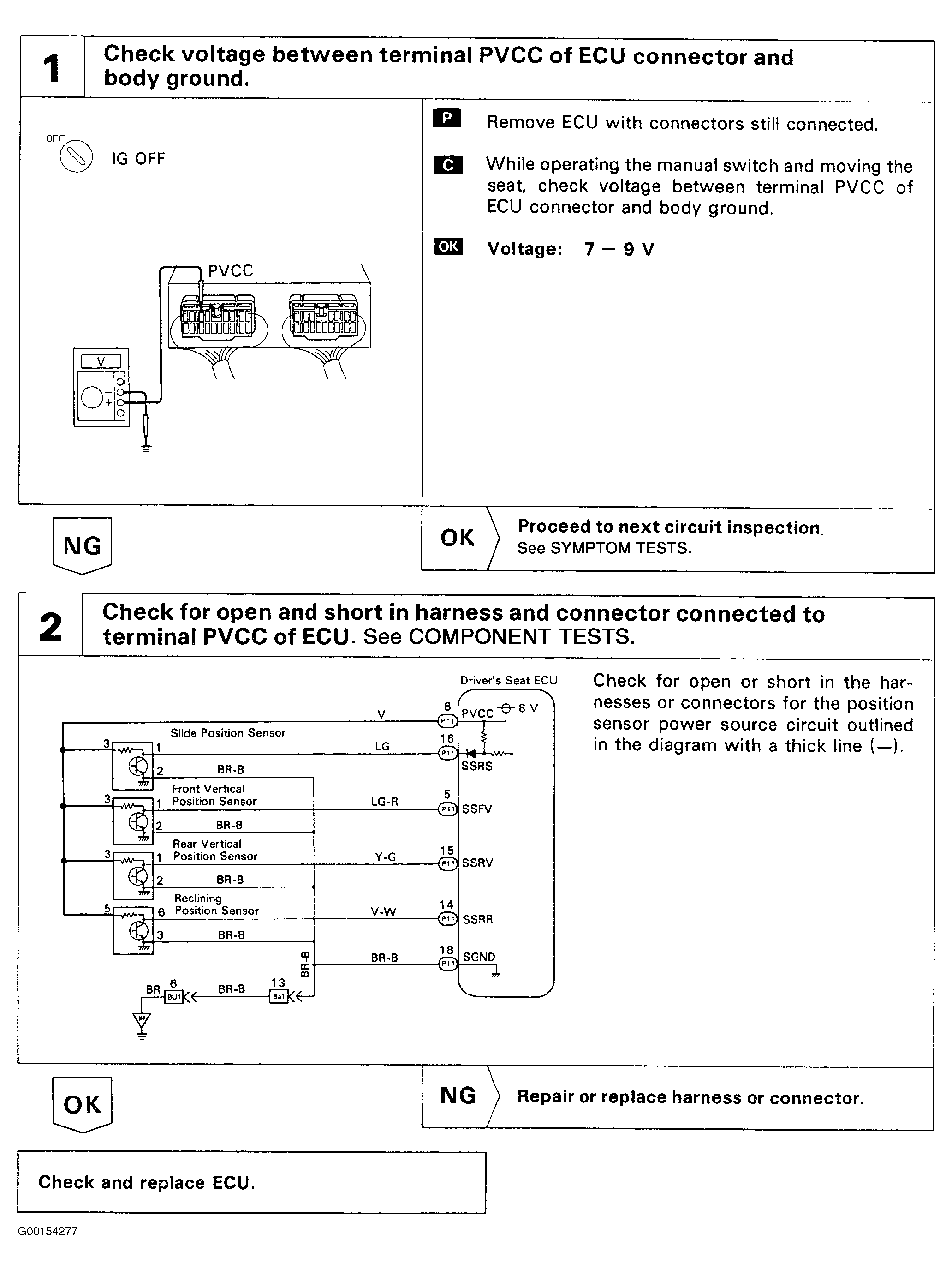

Fig 2: Test E: Position Sensor Power Source Circuit (Driver's Seat - 2 Of 2)
G00154277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
