A/T Technical Data

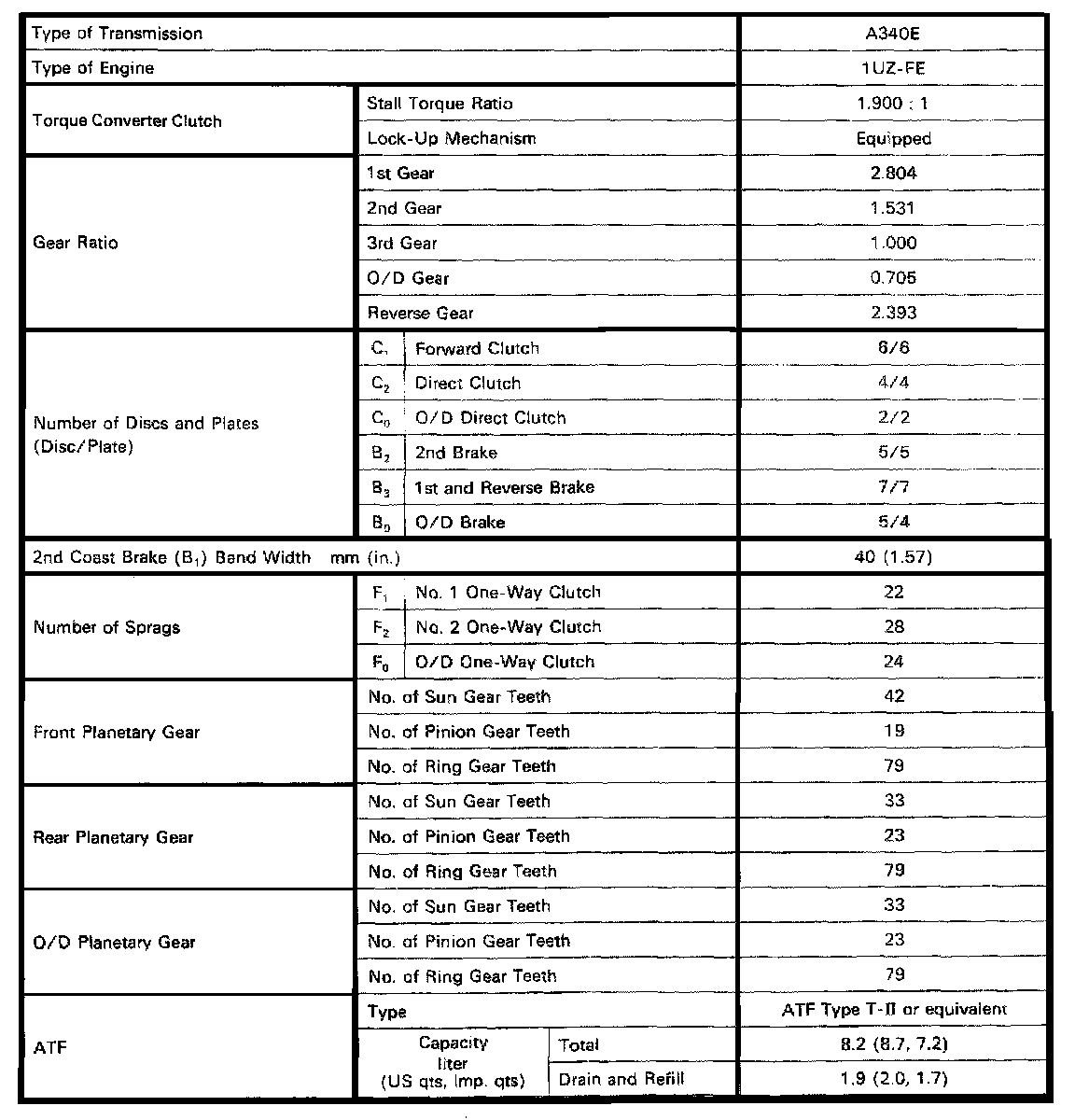

A340E 4-spd A/T, Gear Ratio/ Gear Teeth:

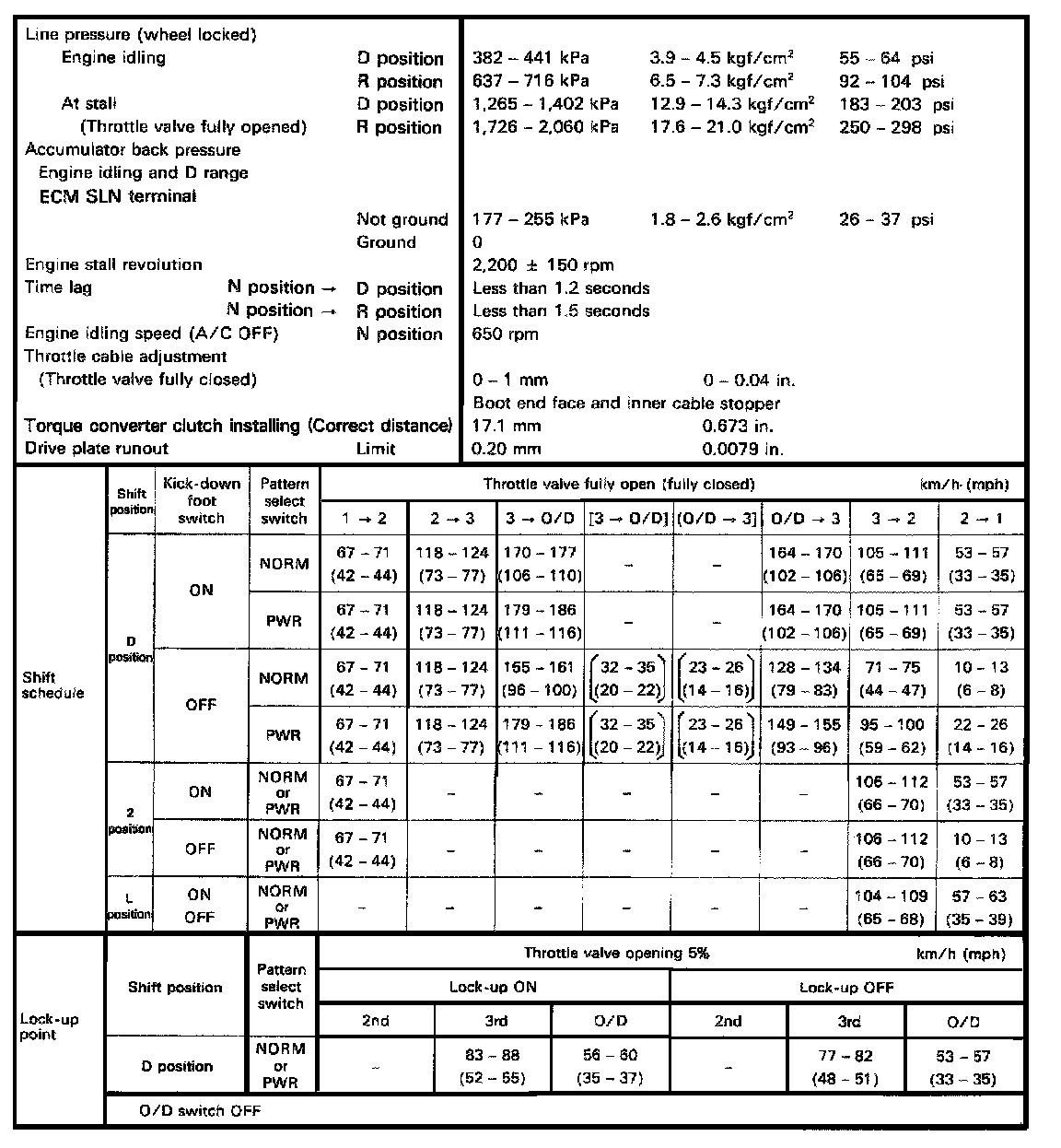

A340E 4-spd A/T, Line Pressure/ Shift Schedule:
