Back Up Power Source Circuit

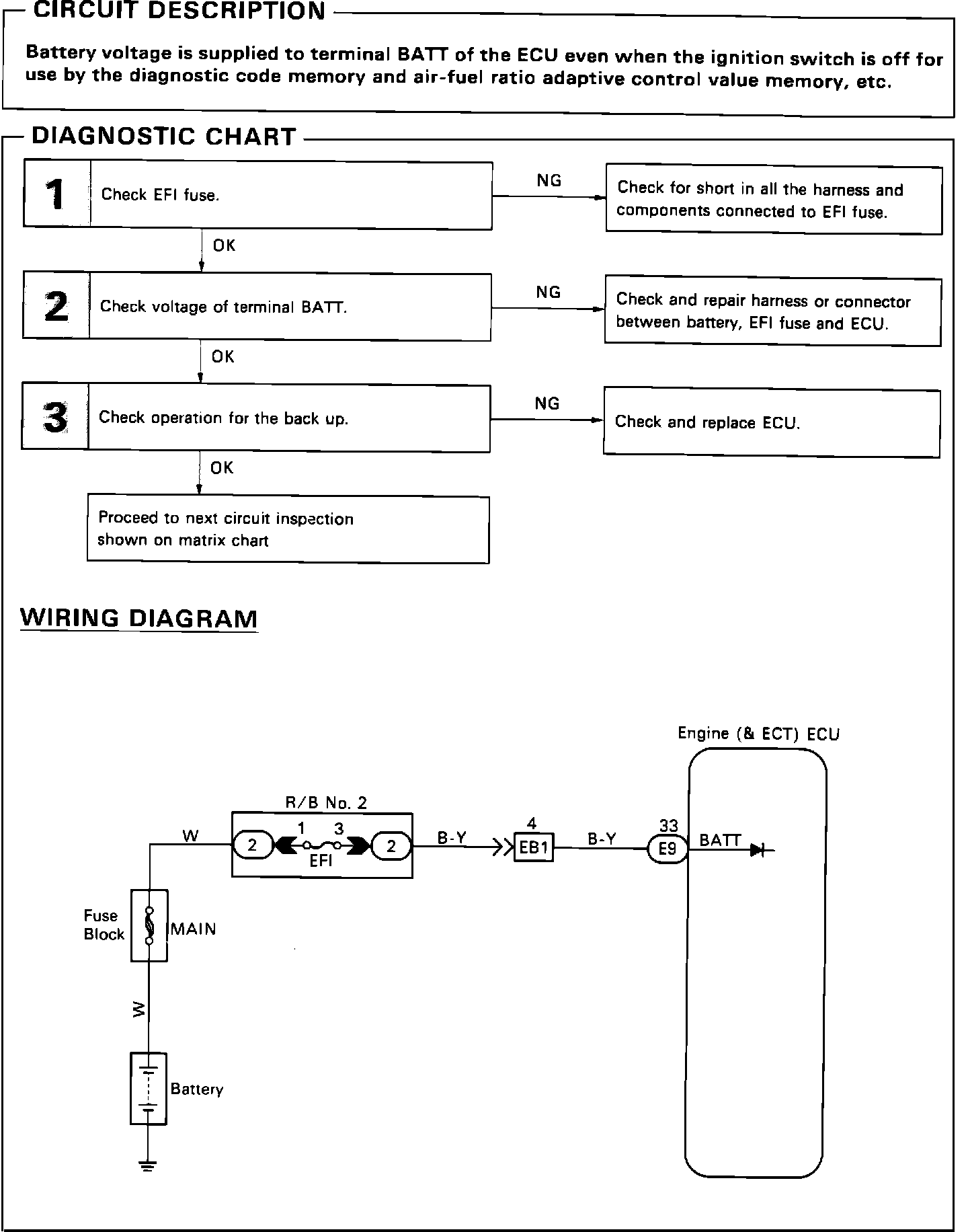

Fig. 25 Back-up Power Source Circuit Diagnosis (Part 1 Of 2):

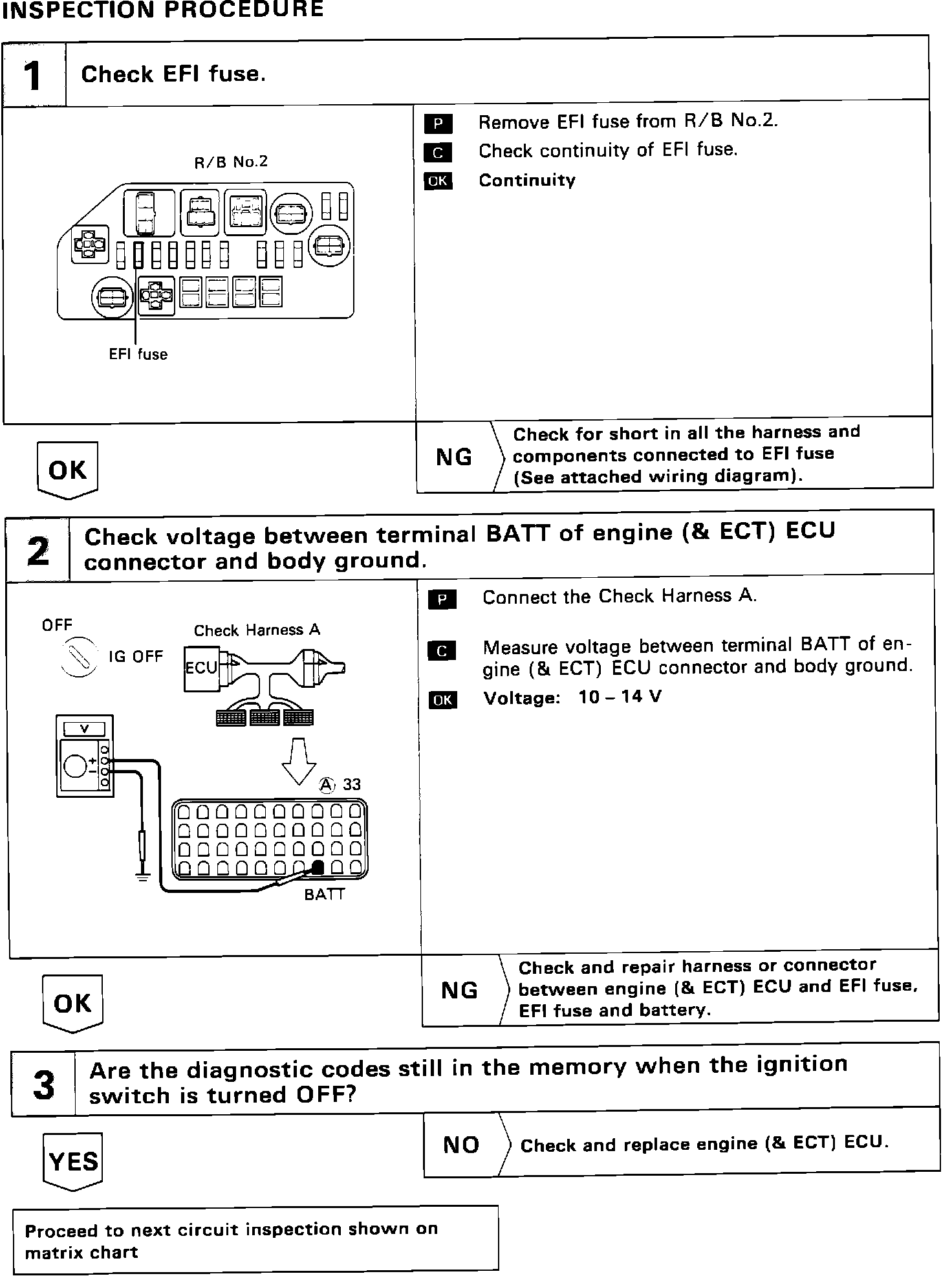

Fig. 25 Back-up Power Source Circuit Diagnosis (Part 2 Of 2):
