Air Bag Control Module: Service and Repair

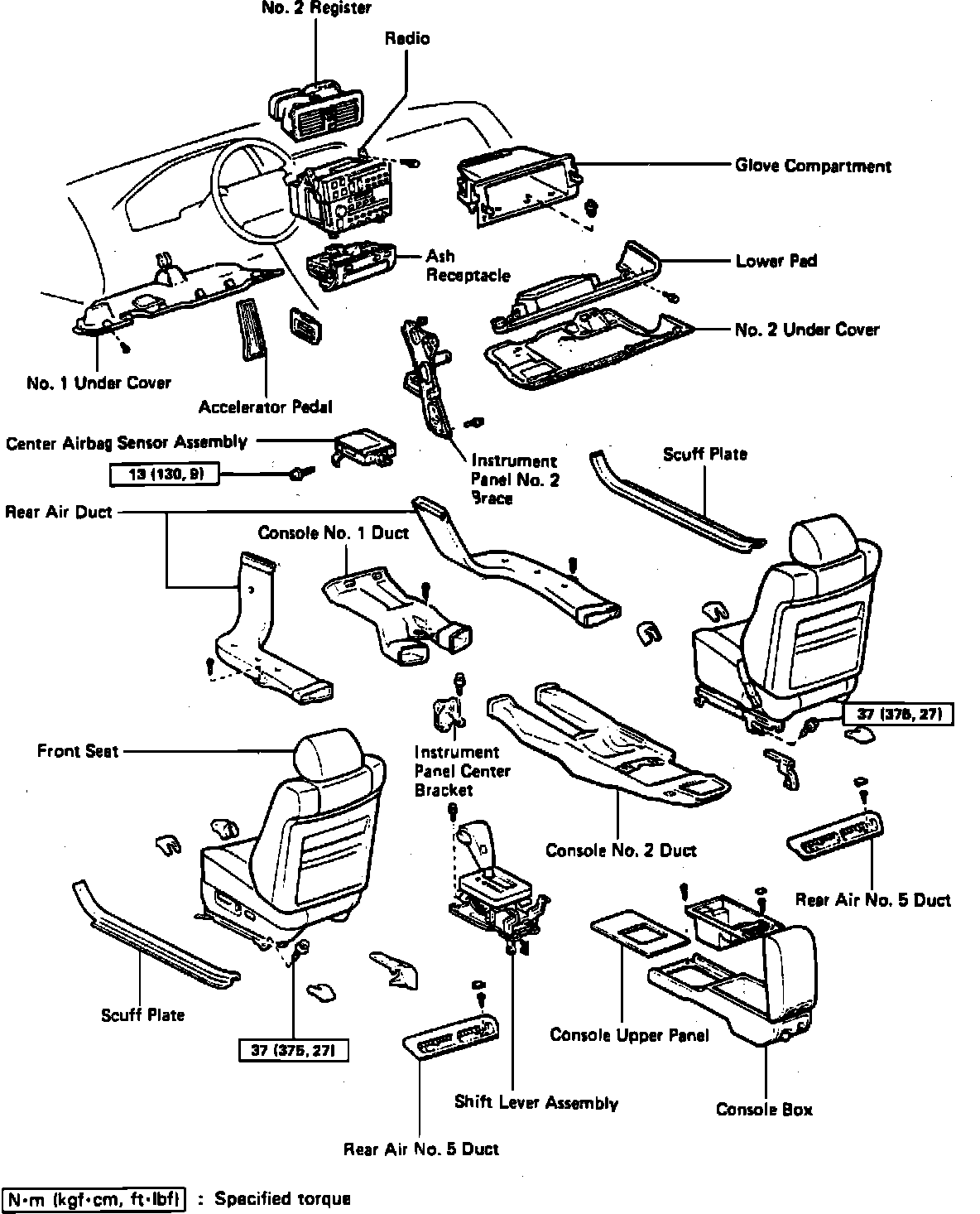

Fig. 48 Center Sensor Removal:






Disarm and arm airbag system as described under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING. Remove components as shown in Fig. 48 in order to remove center sensor. Ensure to disconnect connectors while sensor is still mounted to the vehicle. Torque sensor bolts to 9 ft. lbs.
