Voltage Signal: Testing and Inspection

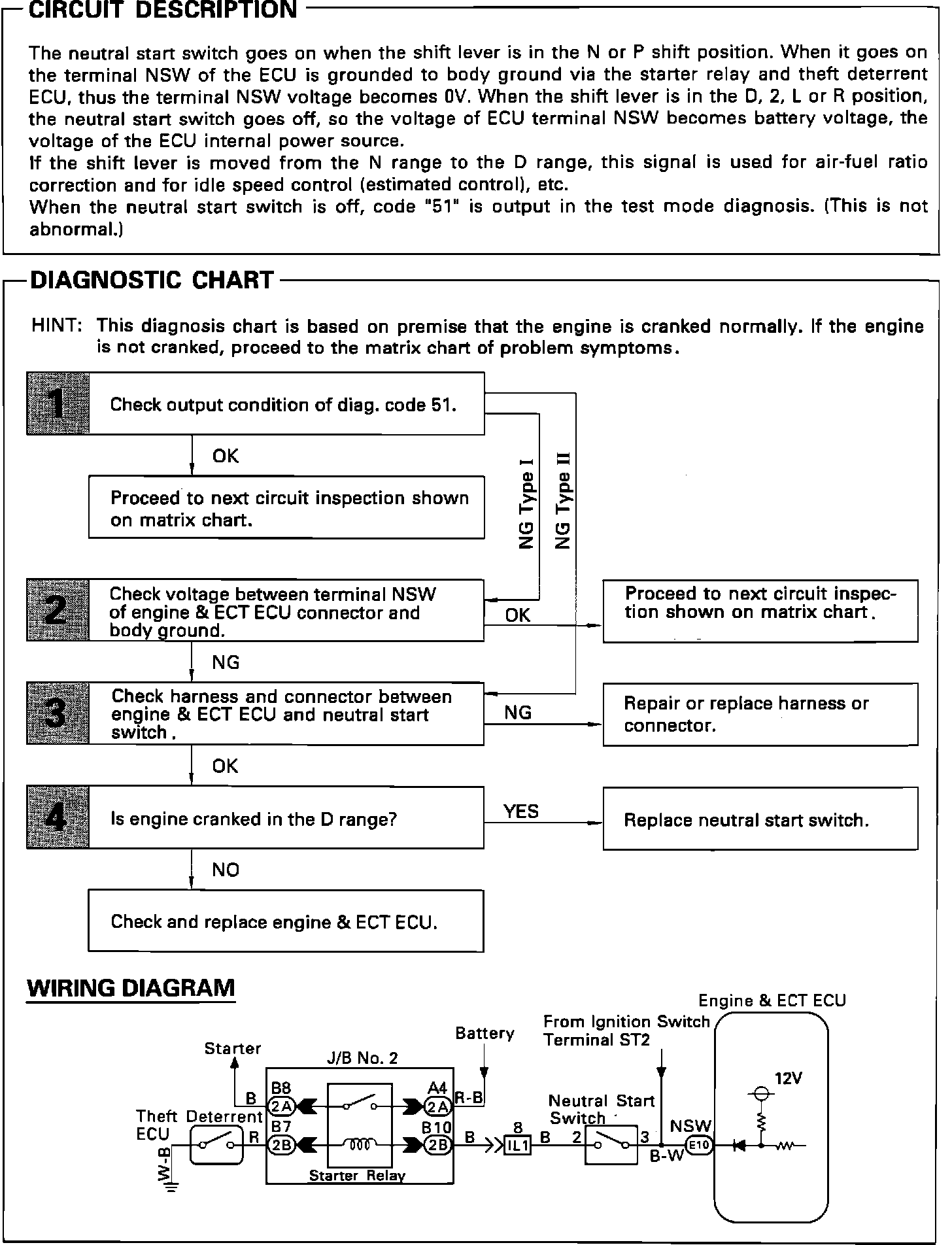

Fig. 31 Neutral Start Switch Signal Diagnosis (Part 1 Of 3):

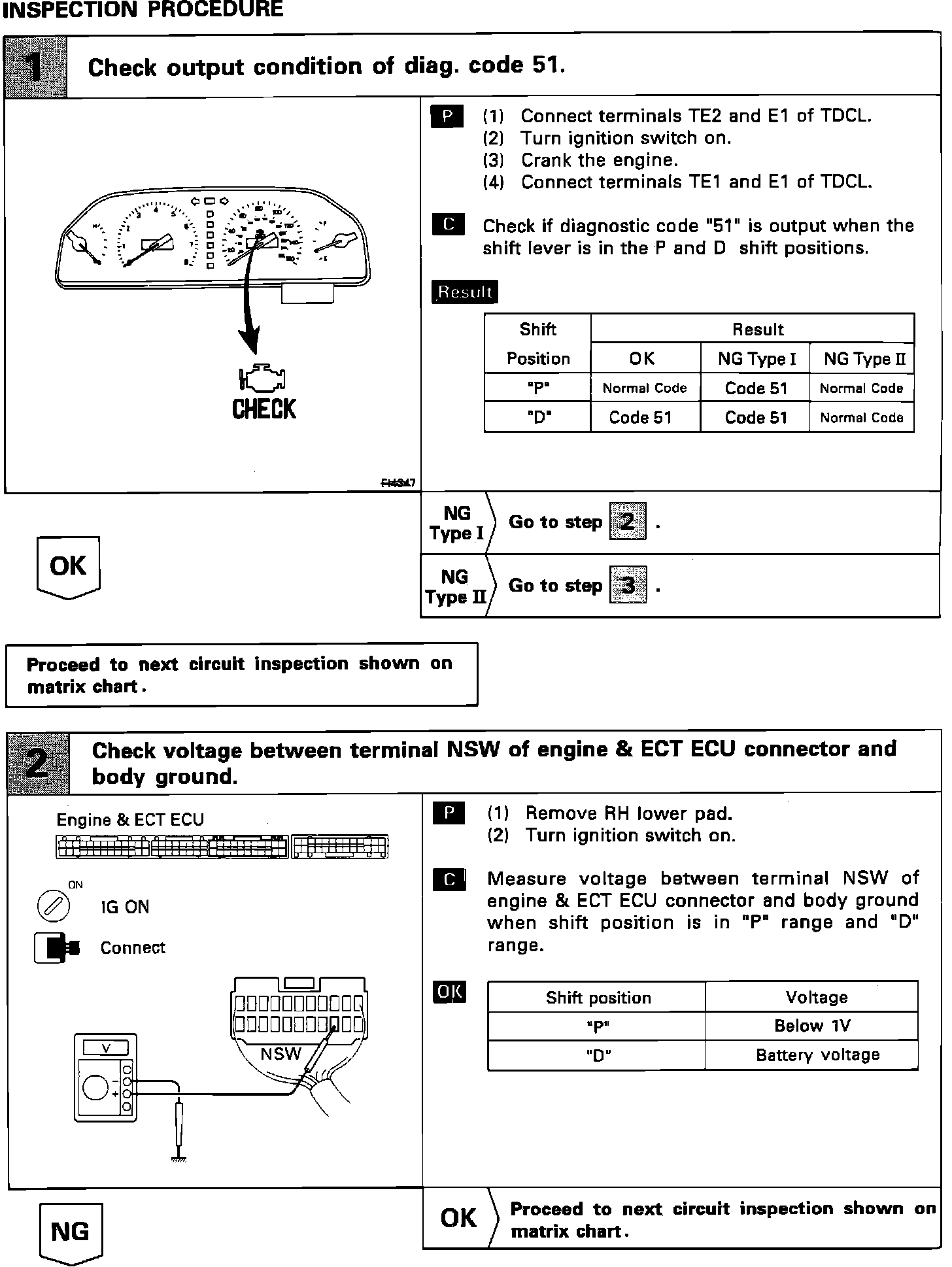

Fig. 31 Neutral Start Switch Signal Diagnosis (Part 2 Of 3):

Fig. 31 Neutral Start Switch Signal Diagnosis (Part 3 Of 3):
