General System Description

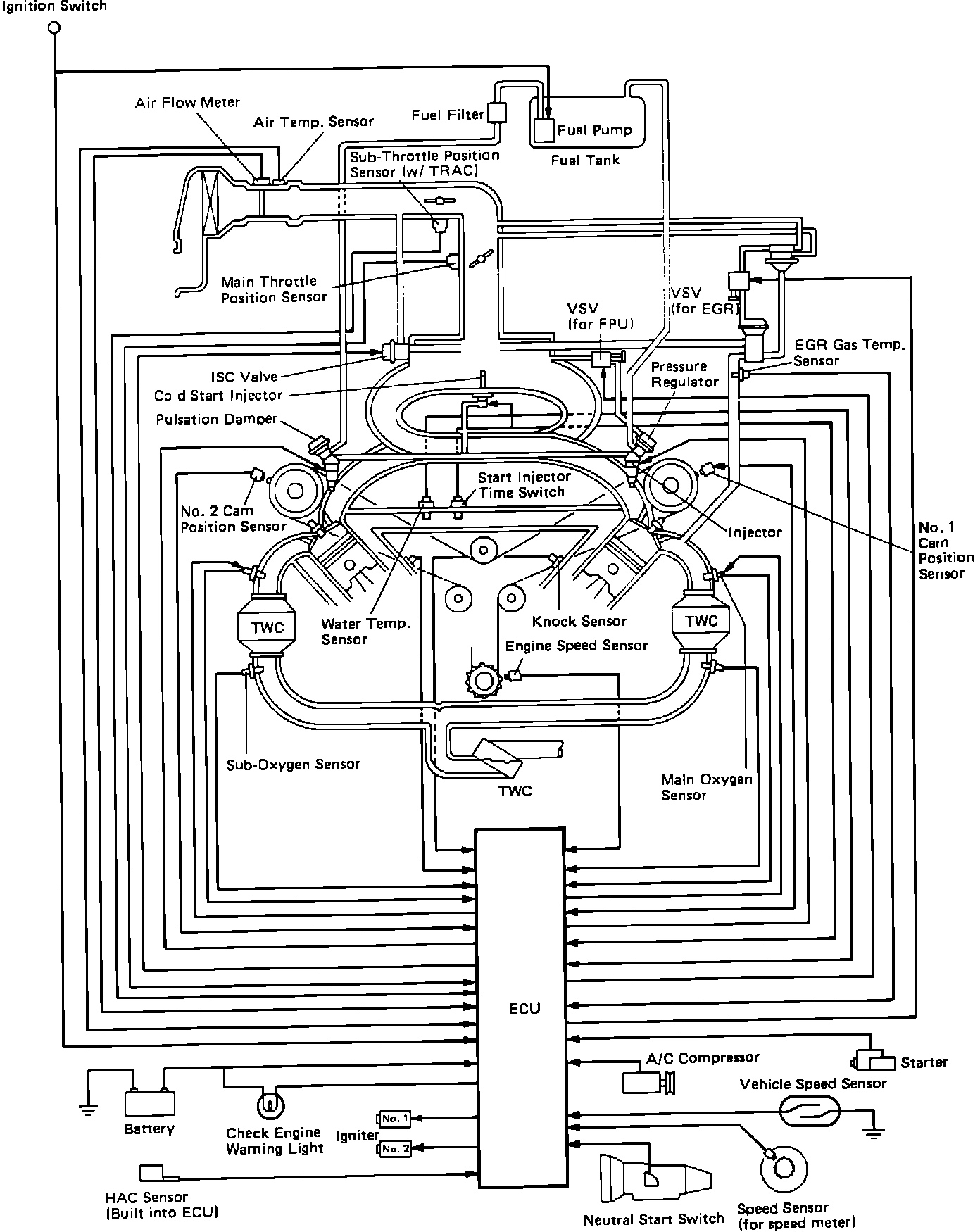

System Schematic:

PURPOSE
The vehicle ECU and sensor and output systems control virtually all aspects of engine operation. This combined systems control allows the engine to function at optimum performance while maintaining exceptable emission and fuel economy levels.

OPERATION
During normal vehicle operation, the ECU controls fuel, spark and emission systems. In the event of a sensor failure or inconsistency the unit switches to "Fail-Safe" mode. In this mode, certain sensor and output parameters become "fixed" allowing limited operation of the vehicle. In most cases the "Check" engine lamp is illuminated and trouble codes are recorded in the ECU long term memory. This alerts the operator that a system requires attention and guides the technician towards the failed system.
