A/C Signal: Testing and Inspection

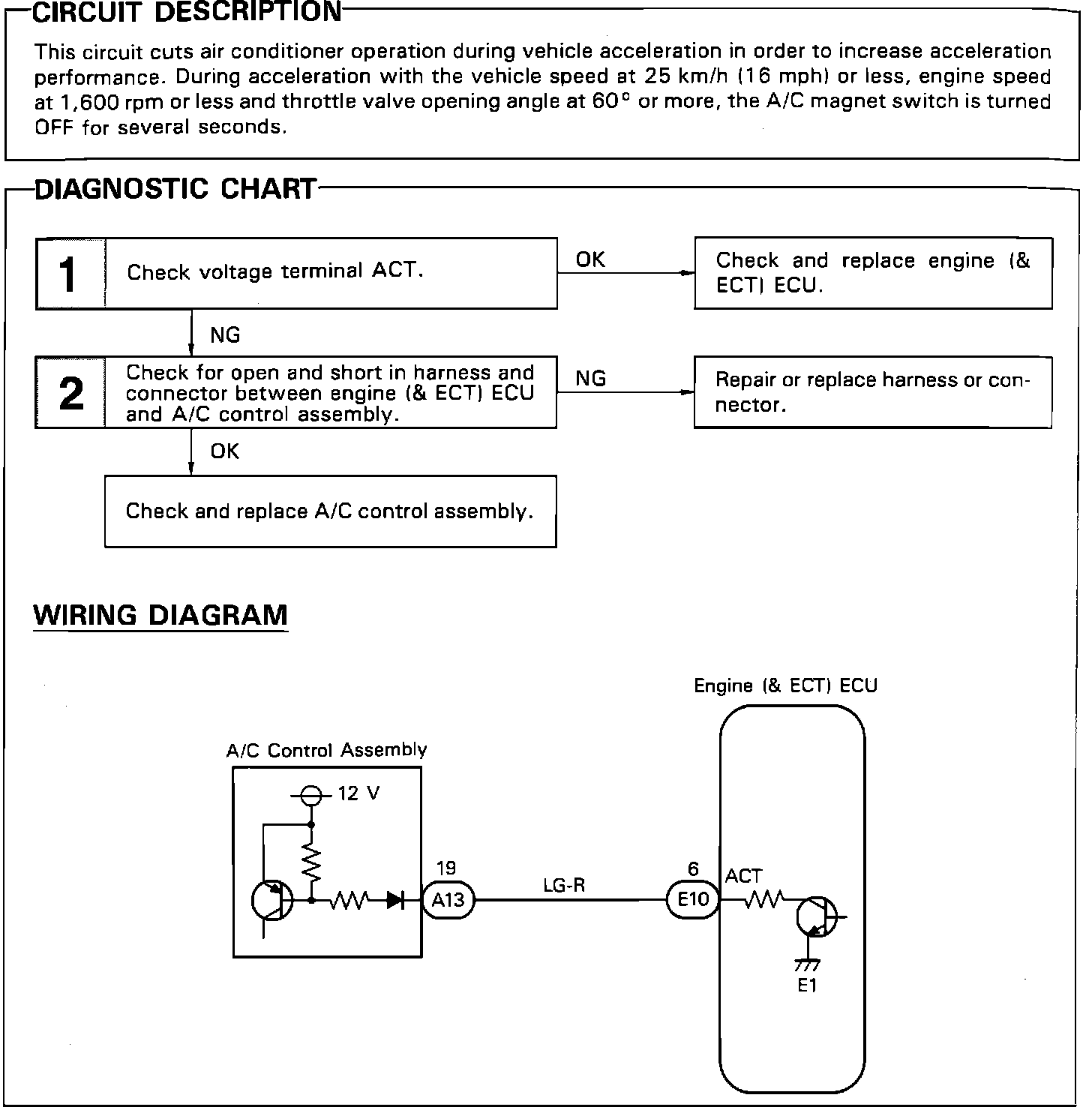

Fig. 30 A/C Cut Control Circuit Diagnosis (Part 1 Of 2):

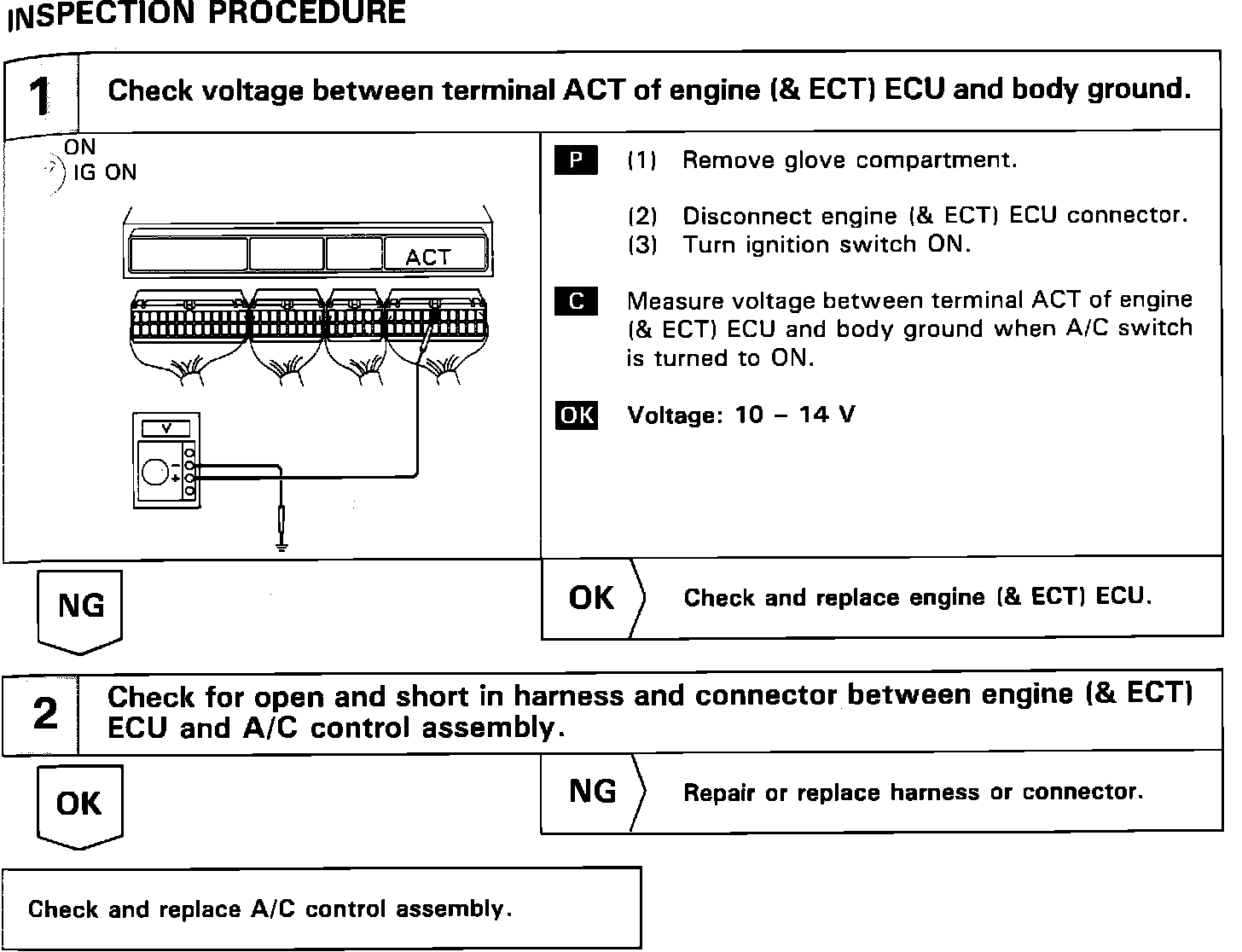

Fig. 30 A/C Cut Control Circuit Diagnosis (Part 2 Of 2):
