Cruise Control: Testing and Inspection

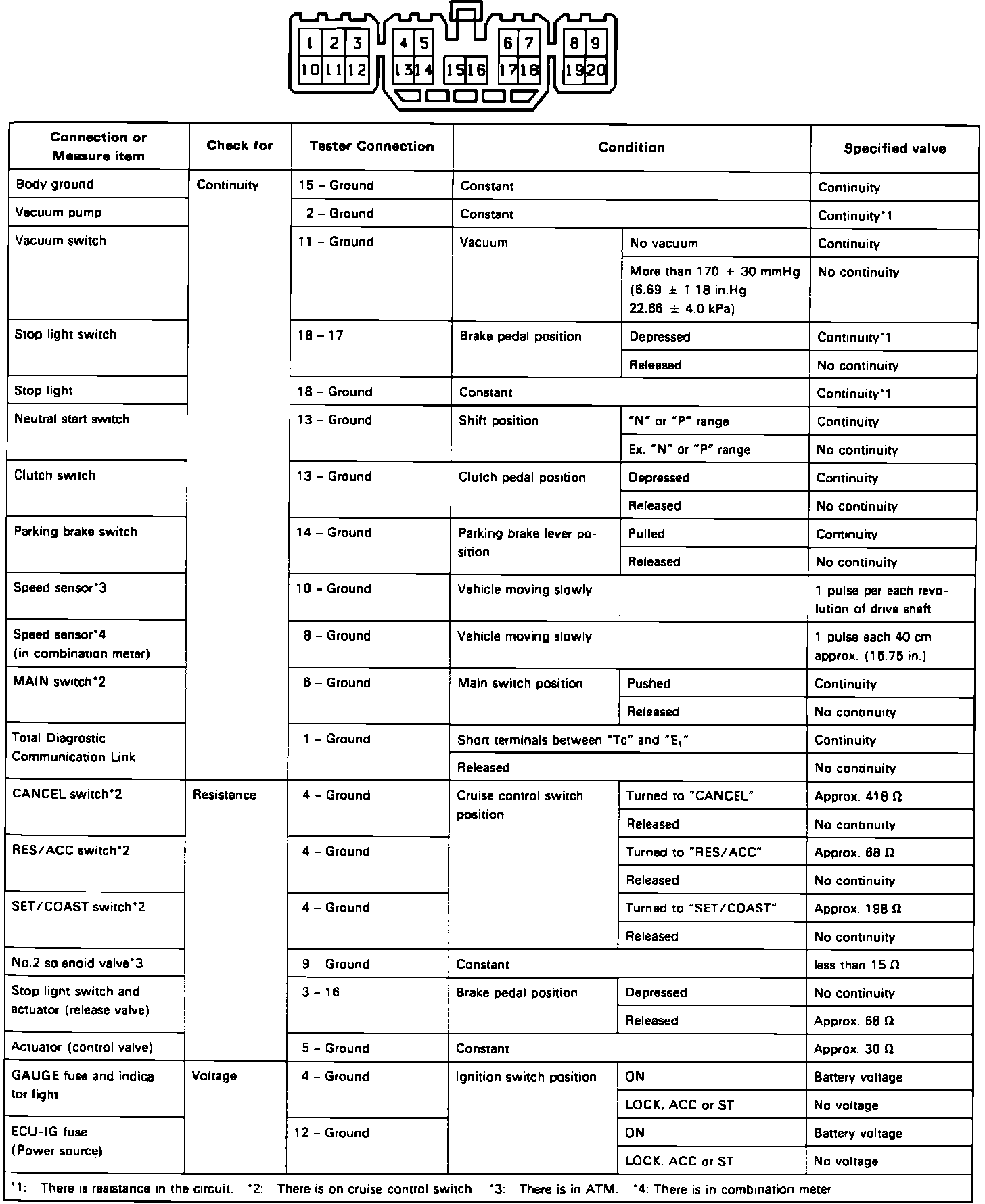

Fig. 7 ECU Circuit Test Chart:






Disconnect ECU connector and inspect connector on wire harness side as shown in Fig. 7.
