Fuel System Circuit

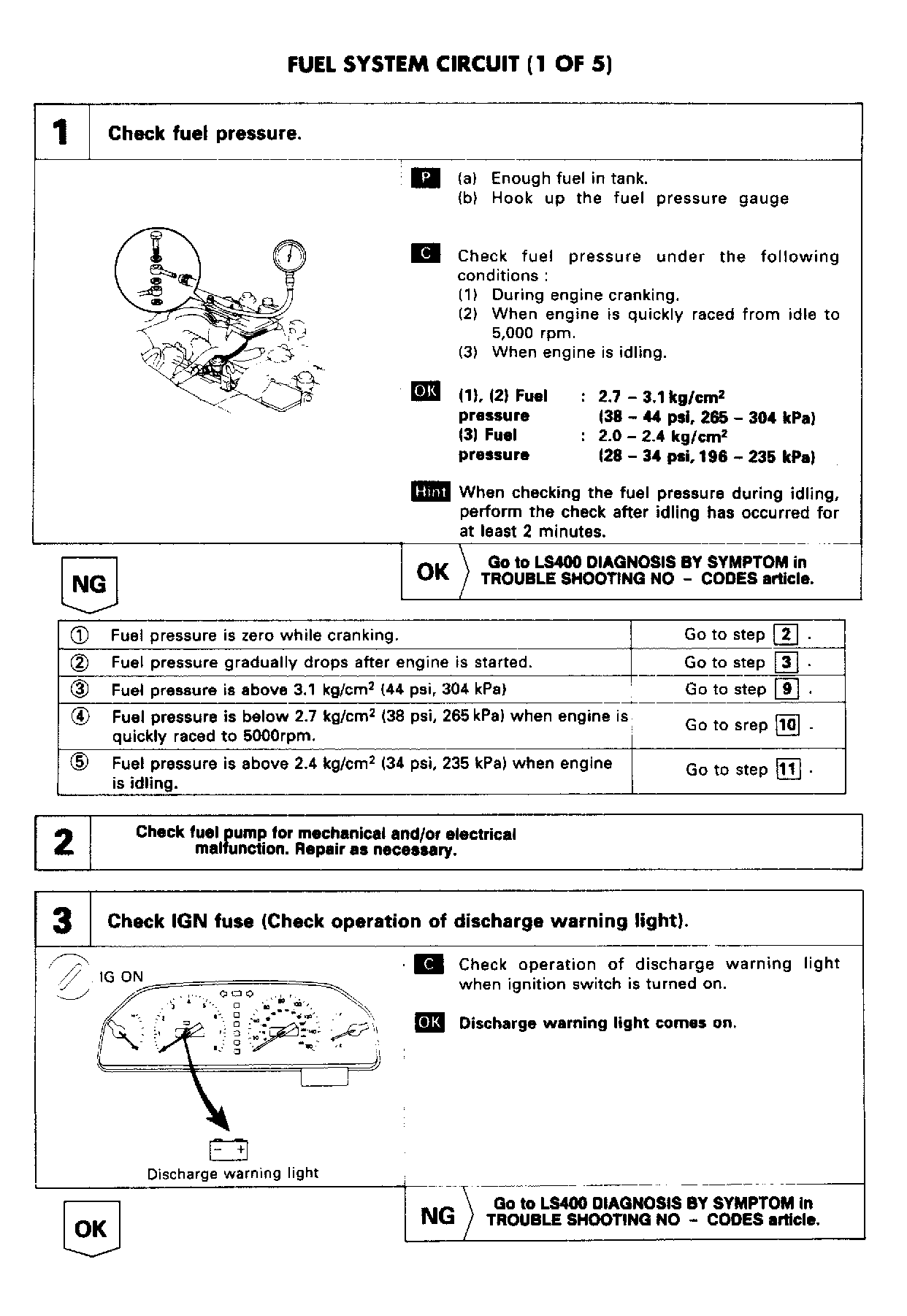

Fig 1: Fuel System Circuit Steps 1-3 (1 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

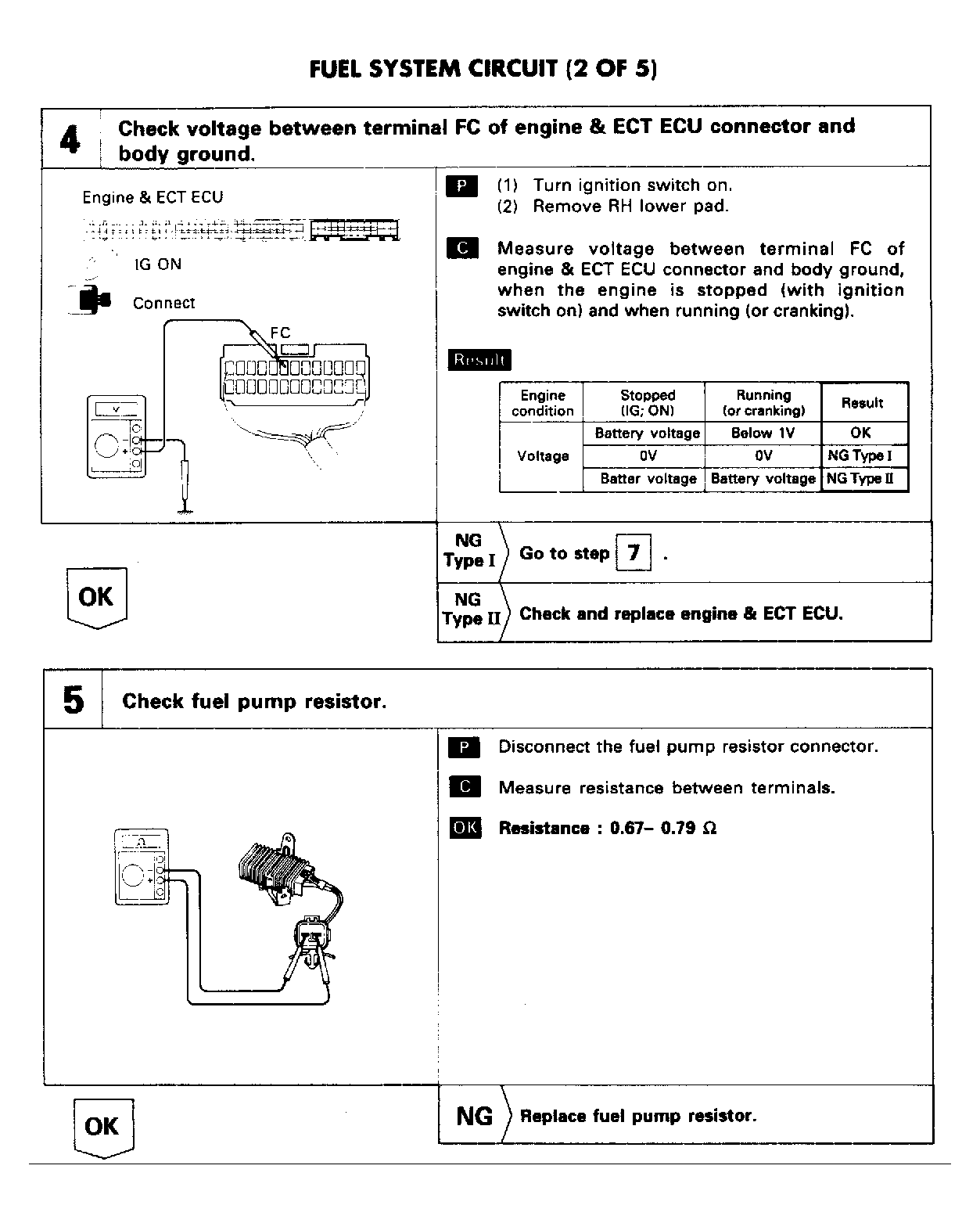

Fig 2: Fuel System Circuit Steps 4 & 5 (2 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

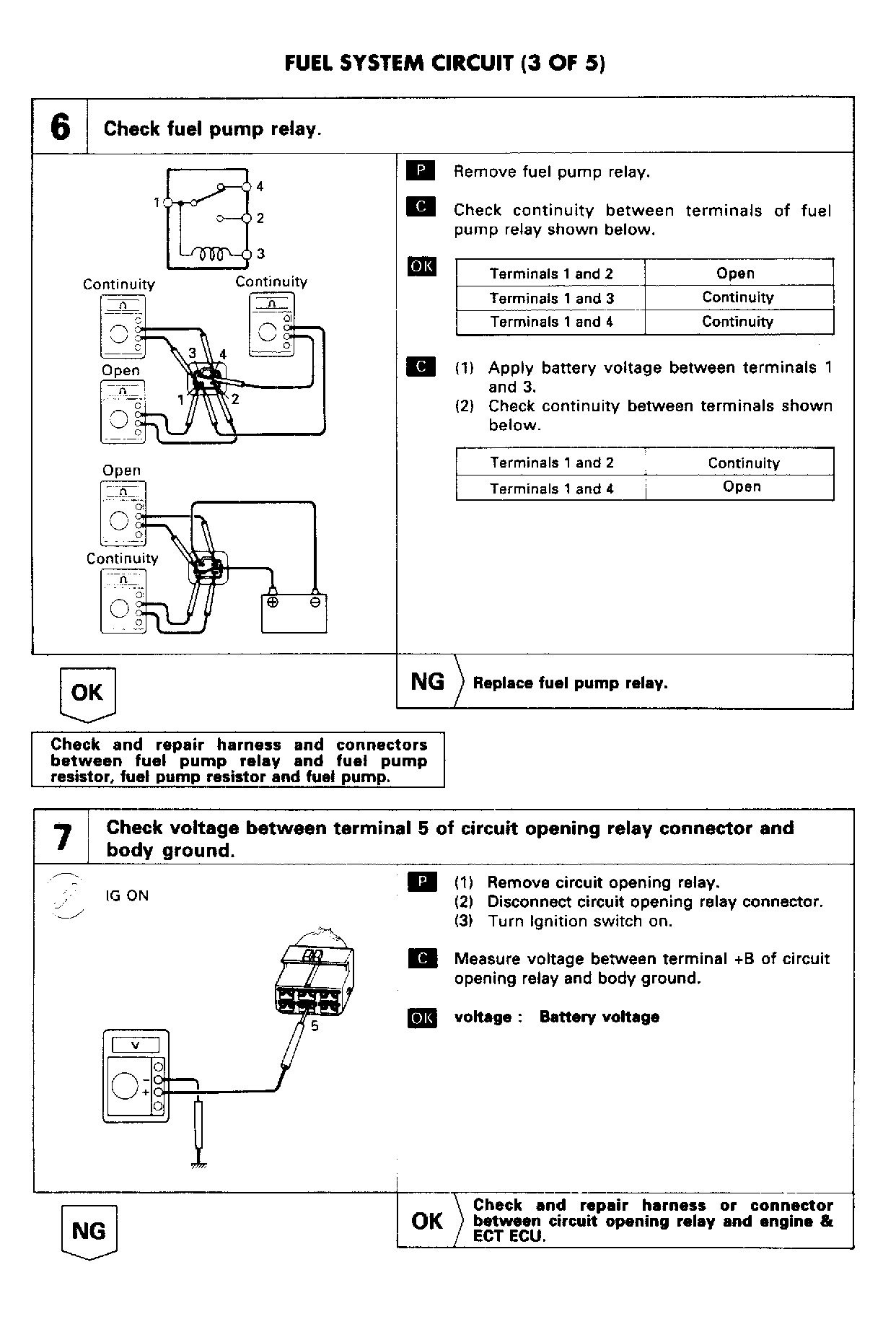

Fig 3: Fuel System Circuit Steps 6 & 7 (3 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

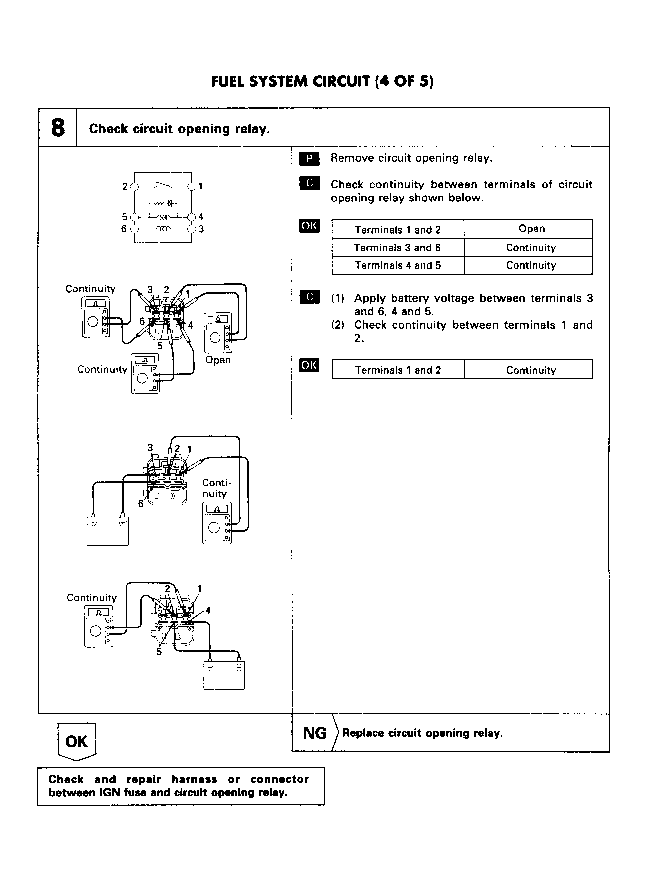

Fig 4: Fuel System Circuit Step 8 (4 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

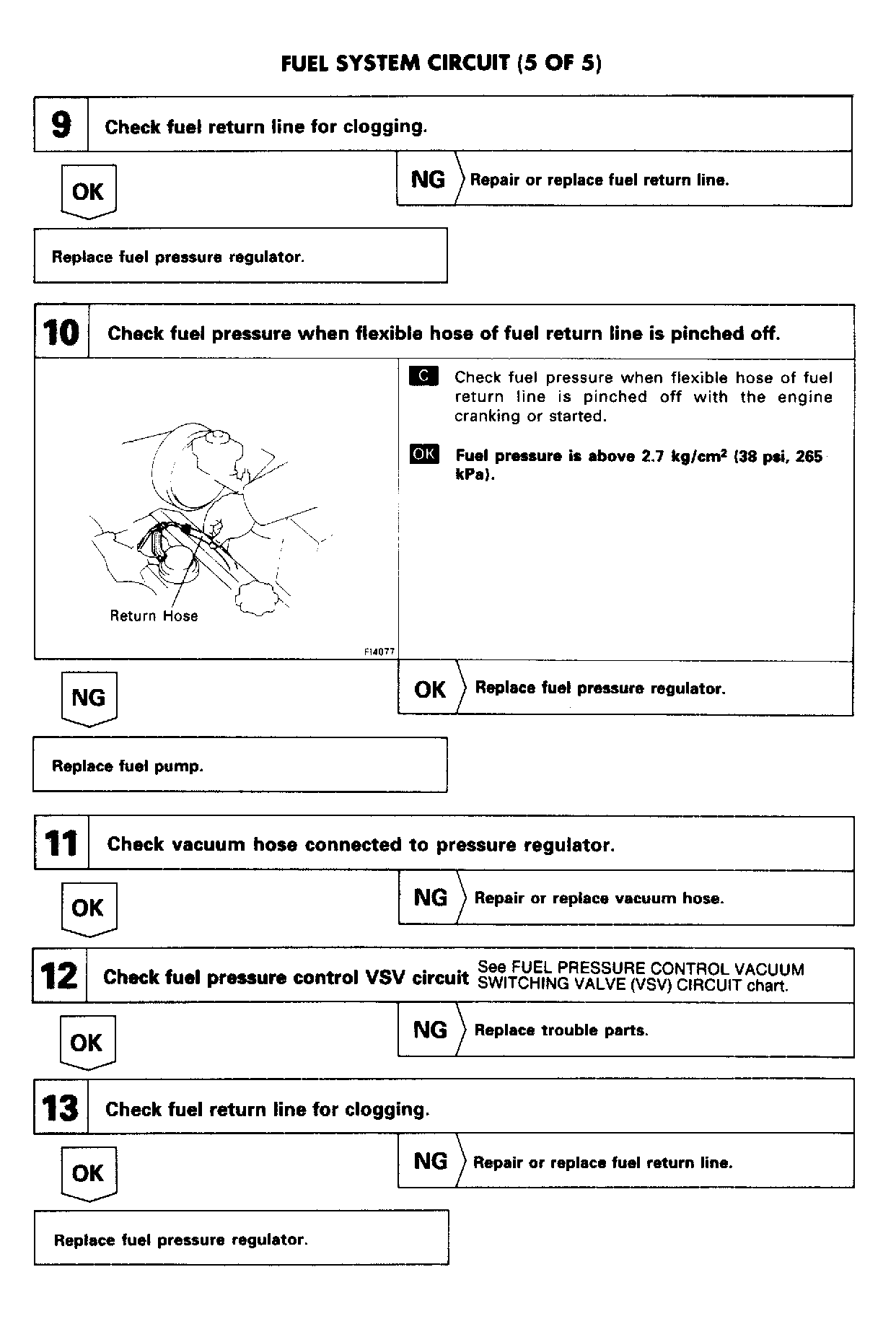

Fig 5: Fuel System Circuit Steps 9-13 (5 of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
