Cooling System Specifications

NOTE: Capacity with heat is 11.2 quarts (10.6 liters).

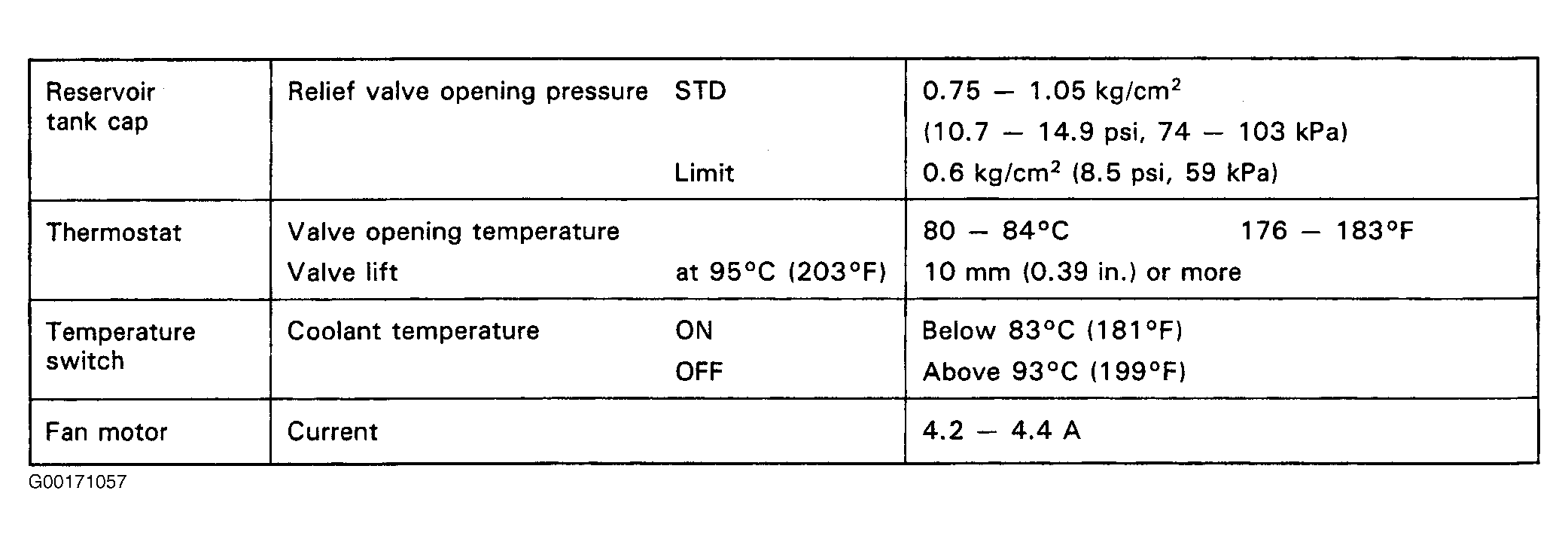

Fig 1: Cooling System Specifications
G00171057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
