Cruise Control Switch

Disconnect cruise control switch connector. Use an ohmmeter to check continuity between cruise control switch terminals. See Fig 1. If continuity is not as specified, replace cruise control switch.

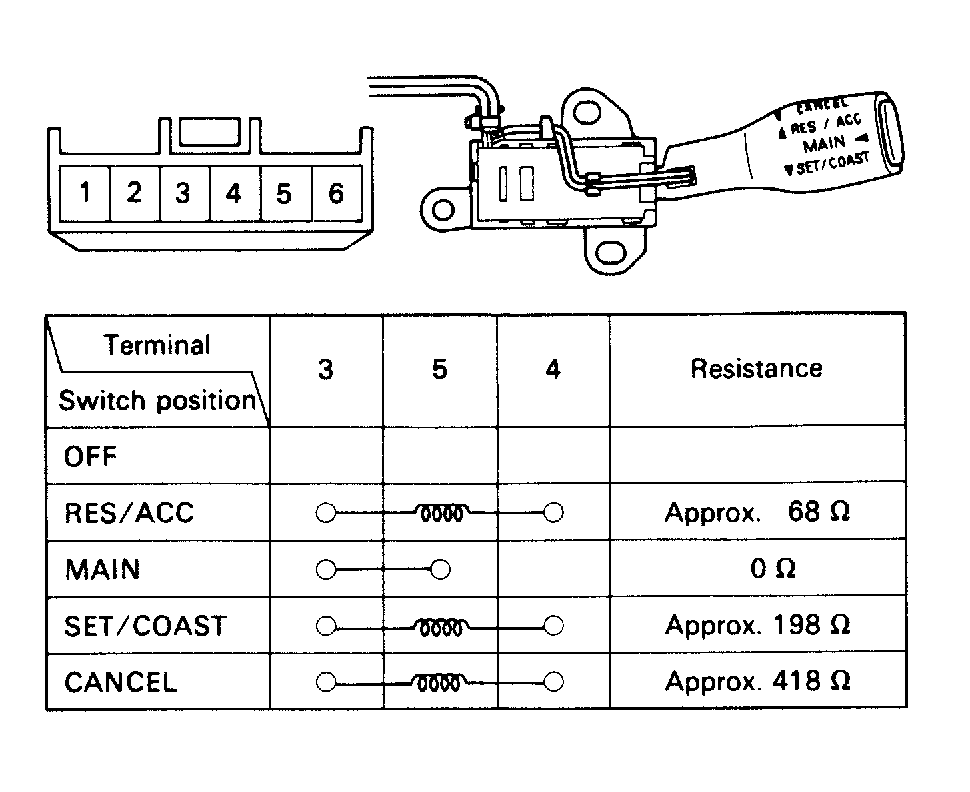

Fig 1: Testing Cruise Control Switch
G91C02750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
