Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery ground cable.

    For additional information, Refer to: Specifications

  2. Remove the high mounted stoplamp.

    For additional information, refer to: High Mounted Stoplamp

  3. G11599095

    Remove the liftgate trim panel.

    • Release the 4 clips.

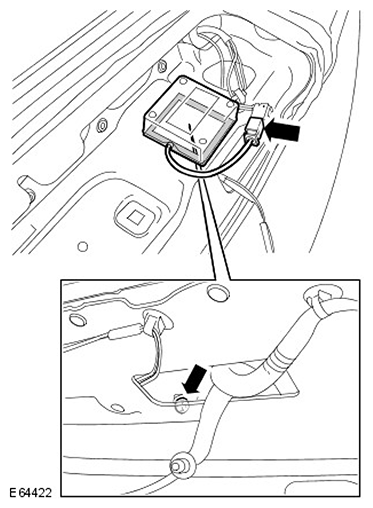

  4. G11599290

    Remove the navigation system antenna.

    • Remove the screw.
    • Release and disconnect the electrical connector.
    • Cut through the adhesive retaining pad.
