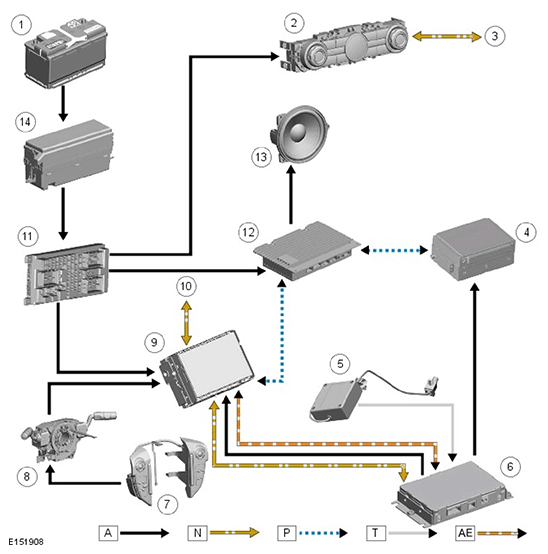

Control Diagram (ASIA)
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST; T
= CoAxial; AE
= LVDS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Integrated Control Panel (ICP), incorporating the navigation switch |
| 3 | Medium speed CAN bus connection to other vehicle systems |
| 4 | IAM (Integrated Audio Module) |
| 5 | GPS antenna |
| 6 | Navigation video interface module |
| 7 | Steering wheel switches |
| 8 | Clockspring |
| 9 | TS (Touch Screen) |
| 10 | Medium speed CAN bus connection to other vehicle systems |
| 11 | CJB (Central Junction Box) |
| 12 | Audio Amplifier Module (AAM) |
| 13 | Speakers |
| 14 | BJB (Battery Junction Box) |
