Component Location
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

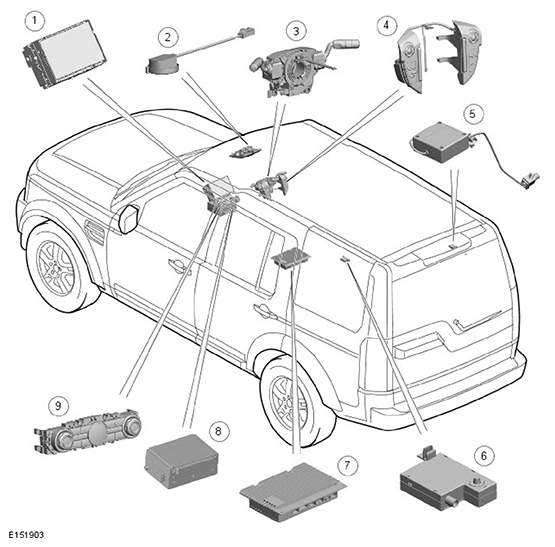

Component Location (ROW)
| ITEM | DESCRIPTION |
|---|---|
| 1 | TS (Touch Screen) |
| 2 | Microphone - voice recognition |
| 3 | Clockspring |
| 4 | Steering wheel switches |
| 5 | GPS (global positioning system) antenna |
| 6 | TMC (Traffic Message Channel) antenna amplifier |
| 7 | Audio Amplifier Module (AAM) |
| 8 | IAM (Integrated Audio Module), incorporating the navigation module |
| 9 | Integrated Control Panel (ICP), incorporating the navigation switch |

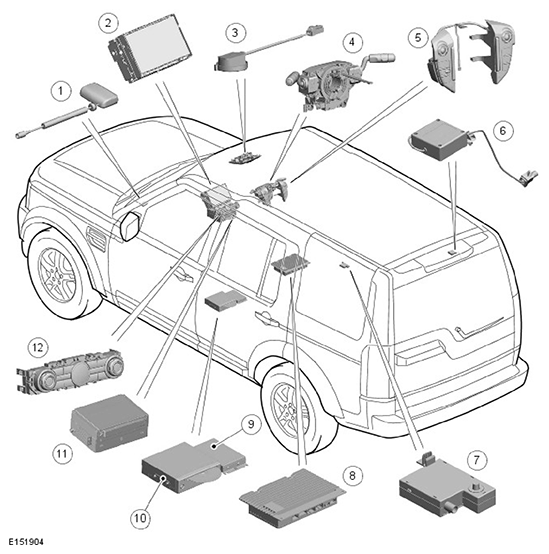

Component Location (Japan)
| ITEM | DESCRIPTION |
|---|---|
| 1 | VICS (Vehicle Information and Communication System) beacon antenna |
| 2 | TS (Touch Screen) |
| 3 | Microphone - voice recognition |
| 4 | Clockspring |
| 5 | Steering wheel switches |
| 6 | GPS antenna |
| 7 | VICS antenna amplifier |
| 8 | Audio Amplifier Module (AAM) |
| 9 | Navigation video interface module |
| 10 | Navigation computer module |
| 11 | IAM (Integrated Audio Module) |
| 12 | Integrated Control Panel (ICP), incorporating the navigation switch |

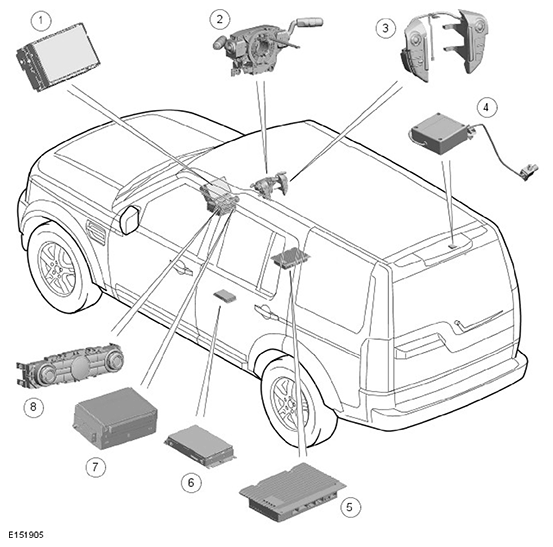

Component Location (Asia)
| ITEM | DESCRIPTION |
|---|---|
| 1 | TS (Touch Screen) |
| 2 | Clockspring |
| 3 | Steering wheel switches |
| 4 | GPS antenna |
| 5 | Audio Amplifier Module (AAM) |
| 6 | Navigation computer module |
| 7 | IAM (Integrated Audio Module) |
| 8 | Integrated Control Panel (ICP), incorporating the navigation switch |
