Removal And Installation: Removal

  1. Disconnect the battery ground cable.

    Refer to: BATTERY DISCONNECT/CONNECT .

  2. Remove the floor console.

    Refer to: Floor Console .

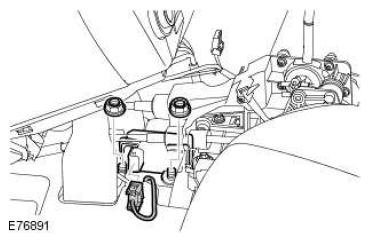

  3. G11589576

    Torque Specification:  6 Nm
