Fuse Block: Service and Repair

Central Junction Box (CJB)

Removal
1 If the central junction box (CJB) is to be replaced, connect T4 to the vehicle.
2 Remove the glove compartment. For additional information, refer to Glove Compartment




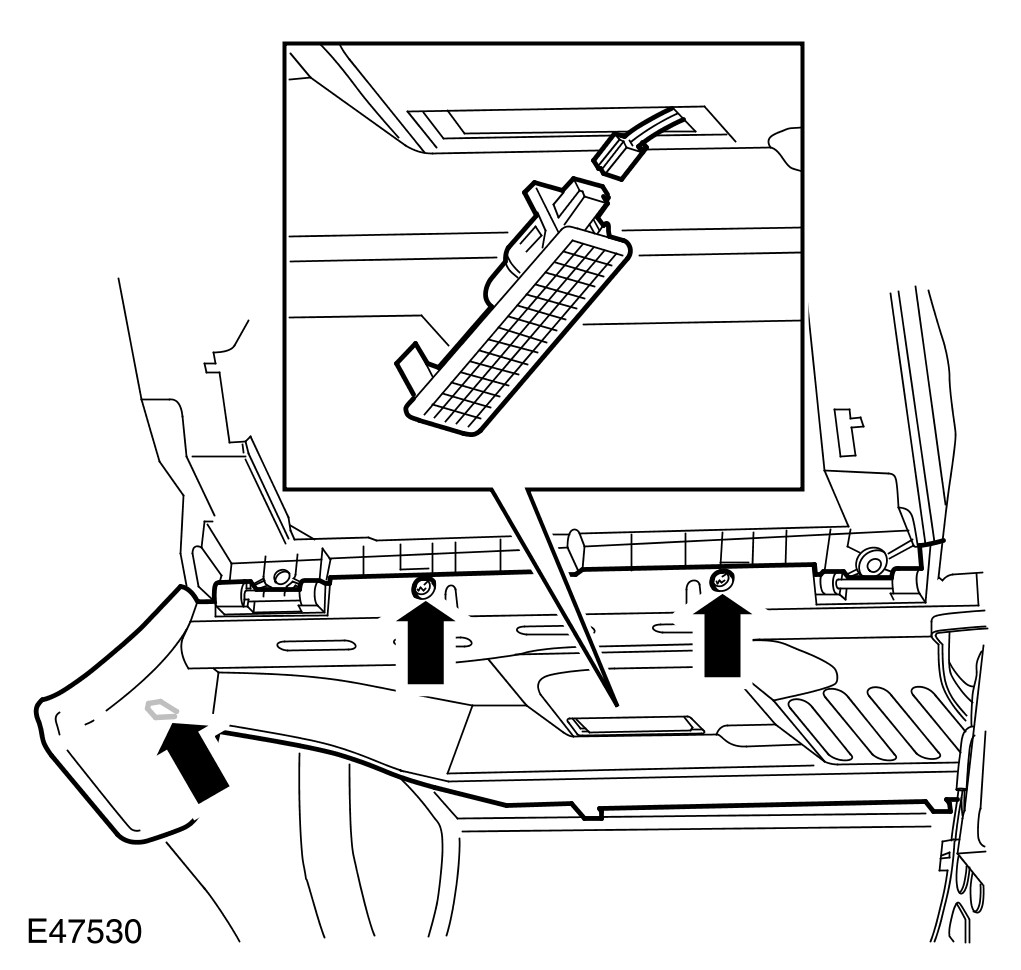

3 Remove the passenger side closing trim panel.
- Release the clip.
- Remove the 2 screws.
- Disconnect the electrical connector.

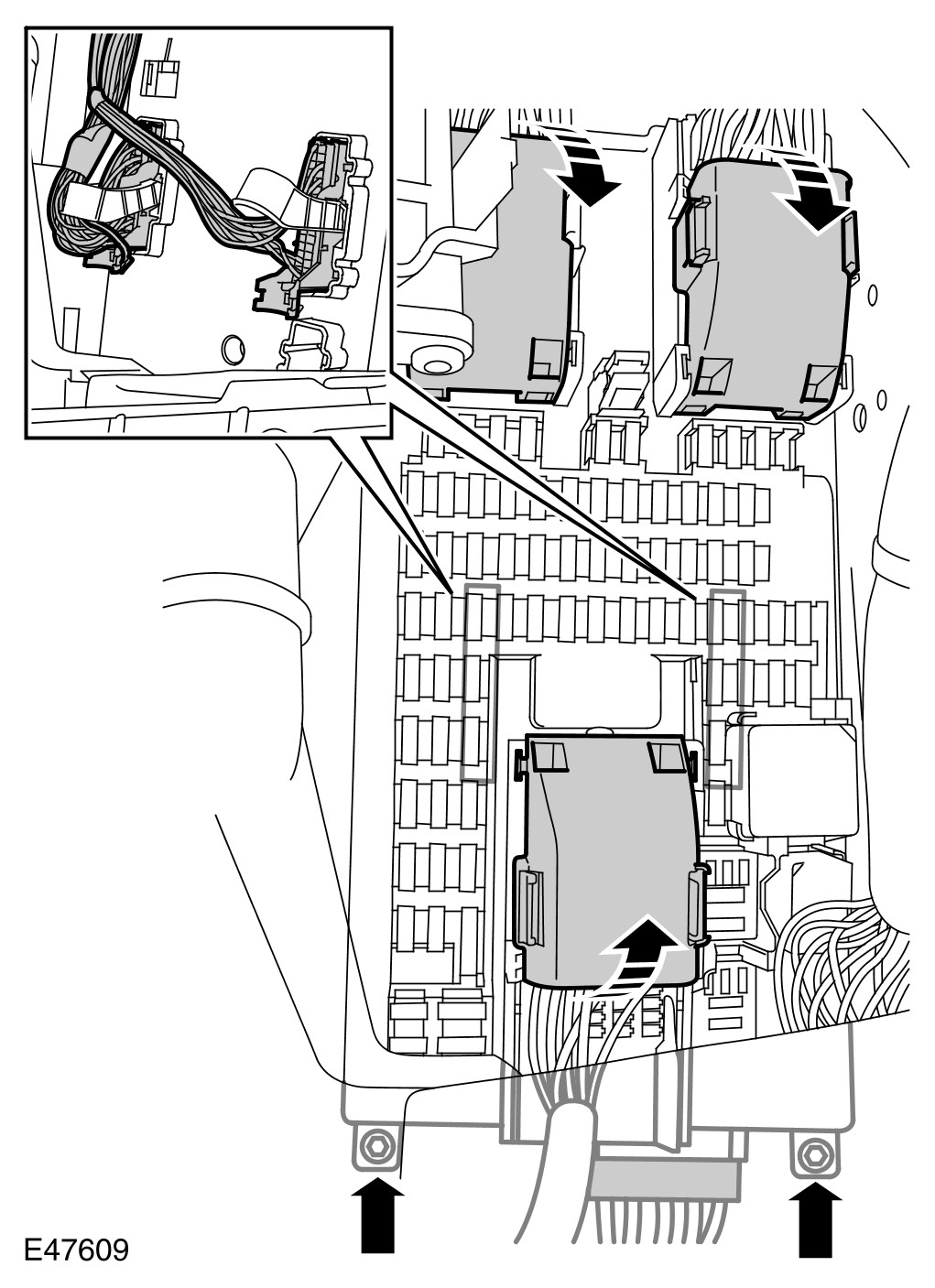

4 Remove the CJB.
- Remove the 2 nuts.
- Disconnect the 6 electrical connectors.

Installation
1 Install the CJB.
- Connect the electrical connectors.
- Tighten the nuts to 10 Nm (7 lb.ft).
2 Install the closing trim panel.
- Connect the electrical connector.
- Secure the clip.
3 Install the glove compartment. For additional information, refer to Glove Compartment
4 Initiate a new CJB using T4.
