Speed Control Sensor Adjustment

Speed Control Sensor Adjustment

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.
For additional information, refer to Front Bumper Cover Front Bumper Cover

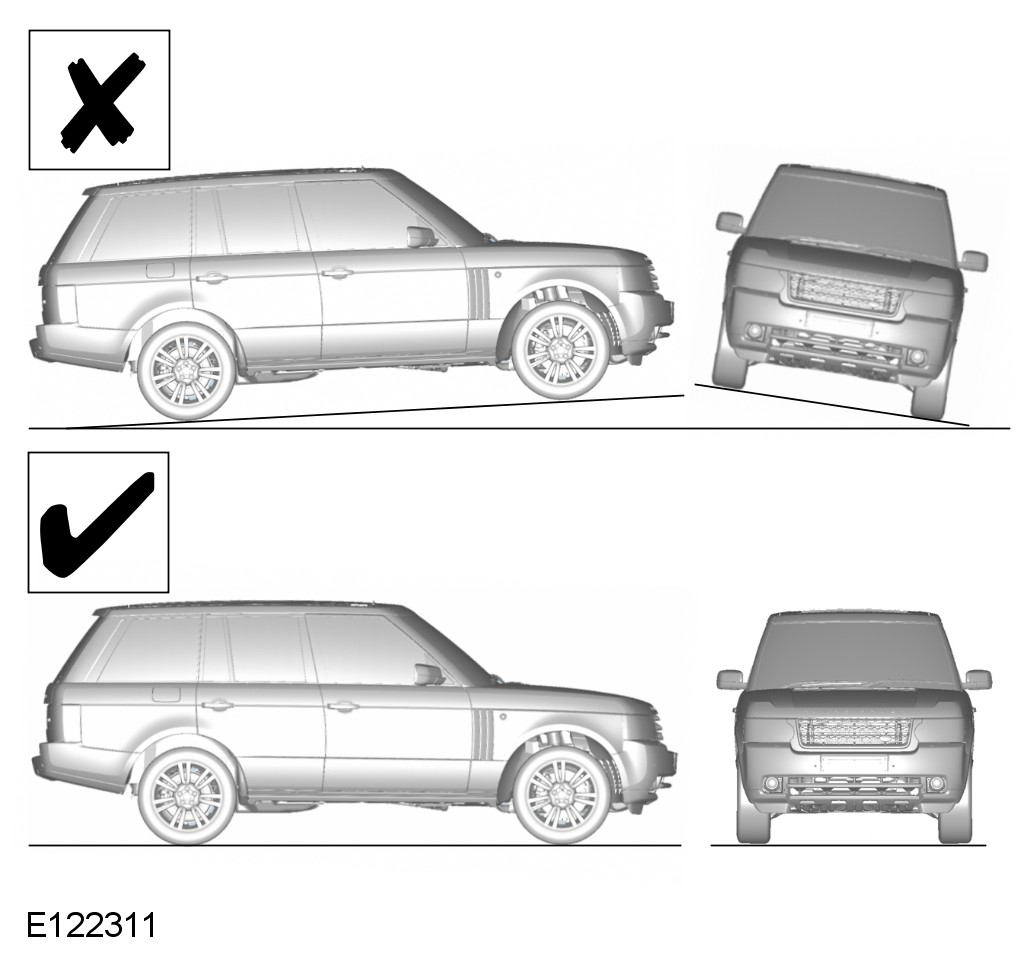

CAUTION: Drive the vehicle on to a flat, level surface.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
1 Set the air suspension ride height to the STANDARD setting.





NOTE:

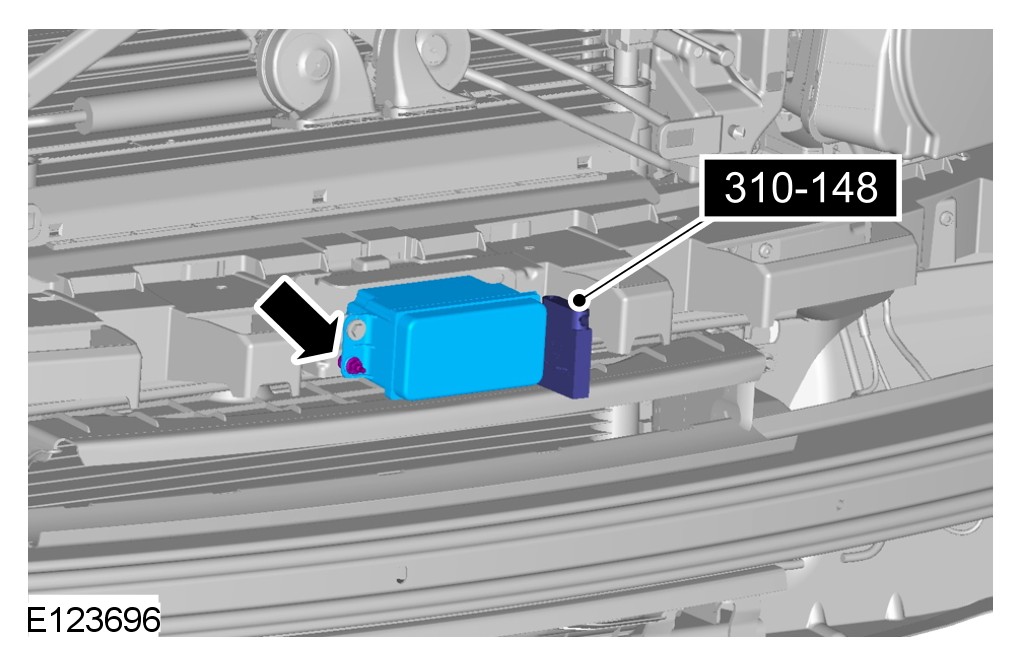

Using the special tool, check the speed sensor is level, (+/- 0.5 degree).

NOTE:

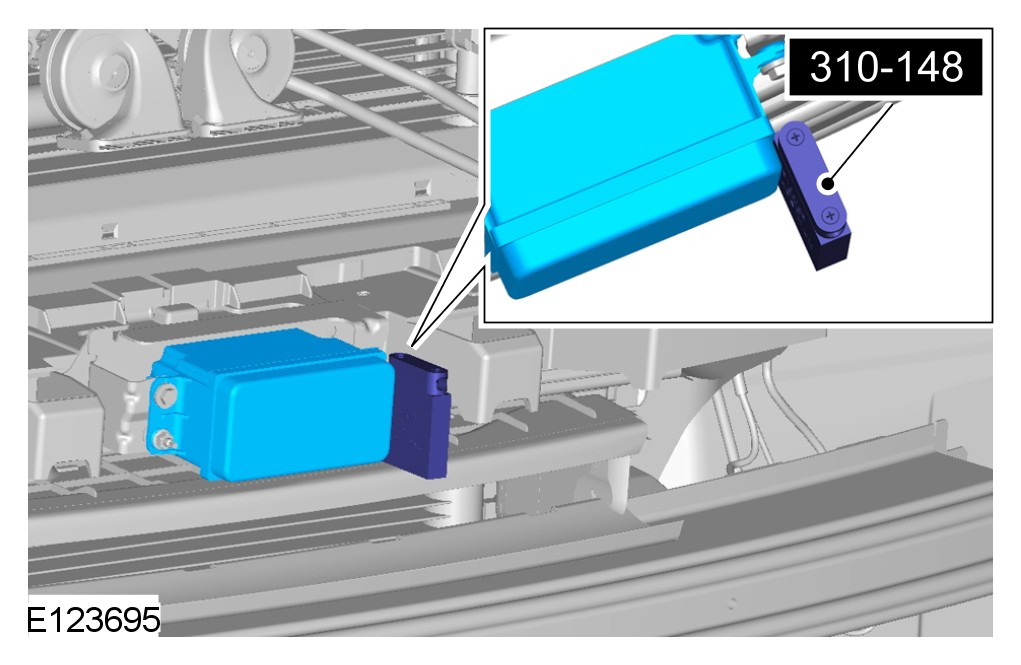

Make sure that the special tool is installed to the front of the speed control sensor as it is shown in the illustration to check the level.

NOTE:
Do not release the securing nut.

Special Service Tool

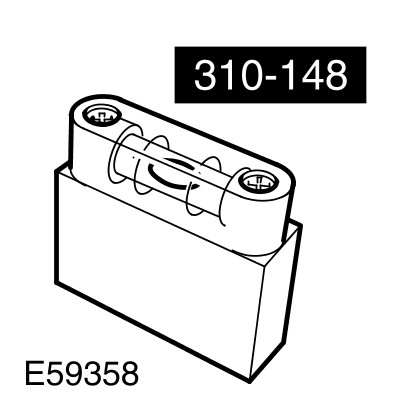

Setting Tool, Speed Control, 310-148





NOTE:
The speed sensor has no mechanical horizontal adjustment.

Special Service Tool




Setting Tool, Speed Control, 310-148
For additional information, refer to Front Bumper Cover Front Bumper Cover
