Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oil Level Sensor
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

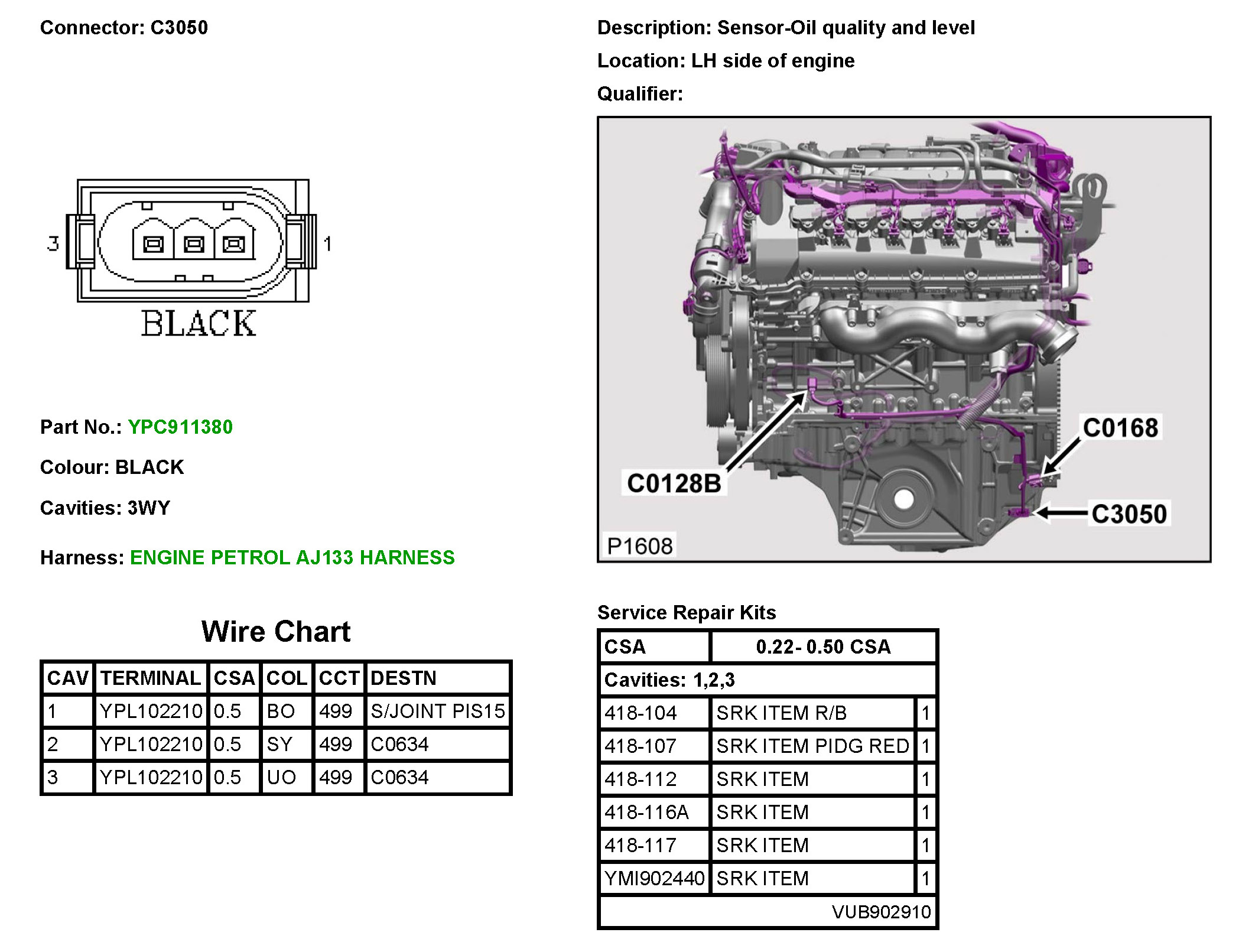

Oil Level Sensor



C3050
