Refrigerator: Service and Repair

Cool Box

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Specifications
2 Remove the floor console upper panel. For additional information, refer to Floor Console Upper Panel

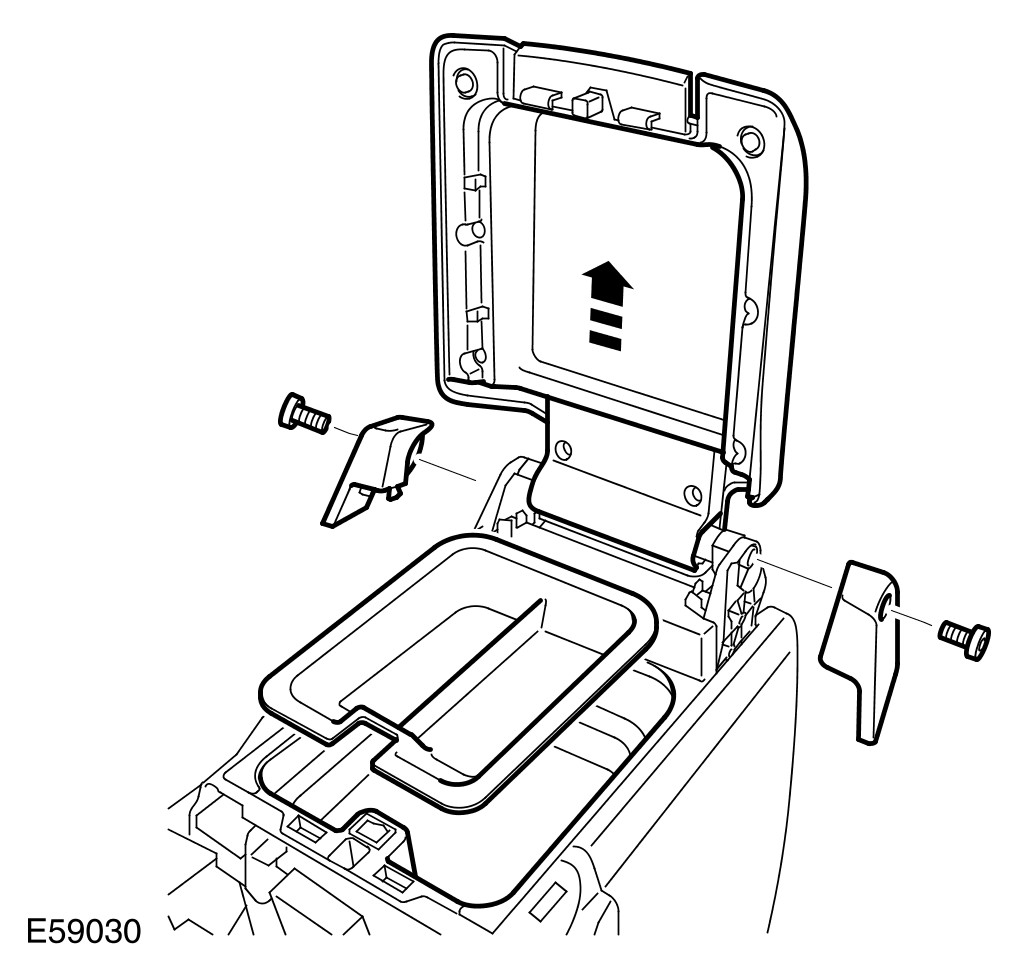

3 Remove the floor console lid.
- Open the lid.
- Remove the 2 Torx bolts.
- Remove the 2 covers.

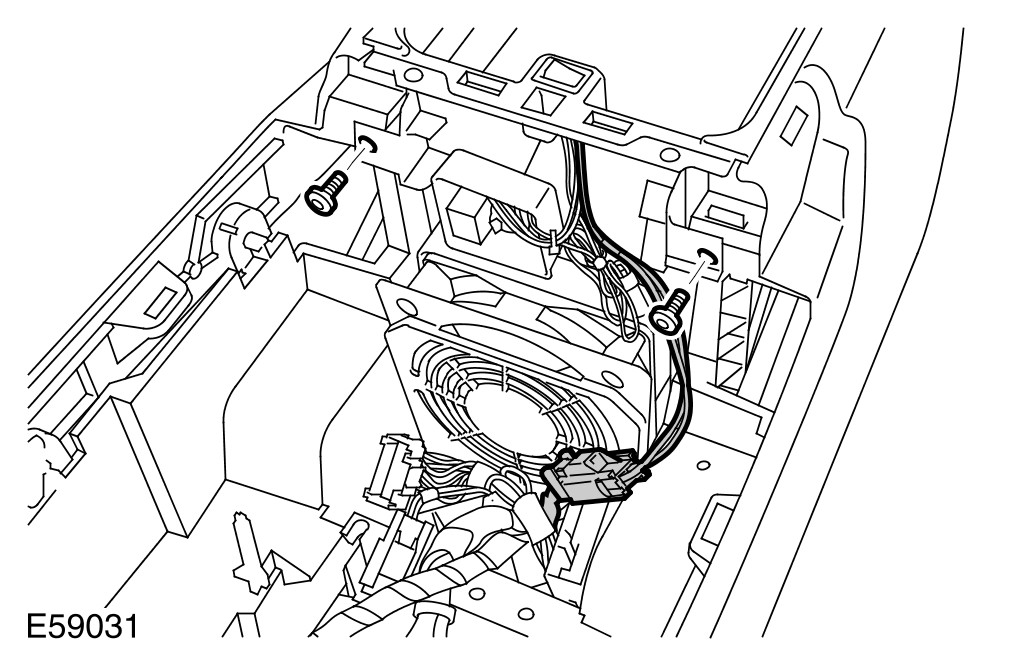

4 Remove the floor console cool box.
- Remove the 2 Torx screws.
- Disconnect the electrical connector.

Installation
1 Install the floor console cool box.
- Connect the electrical connector.
- Tighten the screws.
2 Install the floor console lid.
- Install the covers.
- Tighten the Torx bolts to 3 Nm (2 lb.ft).
3 Install the floor console upper panel. For additional information, refer to Floor Console Upper Panel
4 Connect the battery ground cable. For additional information, refer to Specifications Specifications
